Alpha Evoke 28NX and 33NX - Routine Servicing

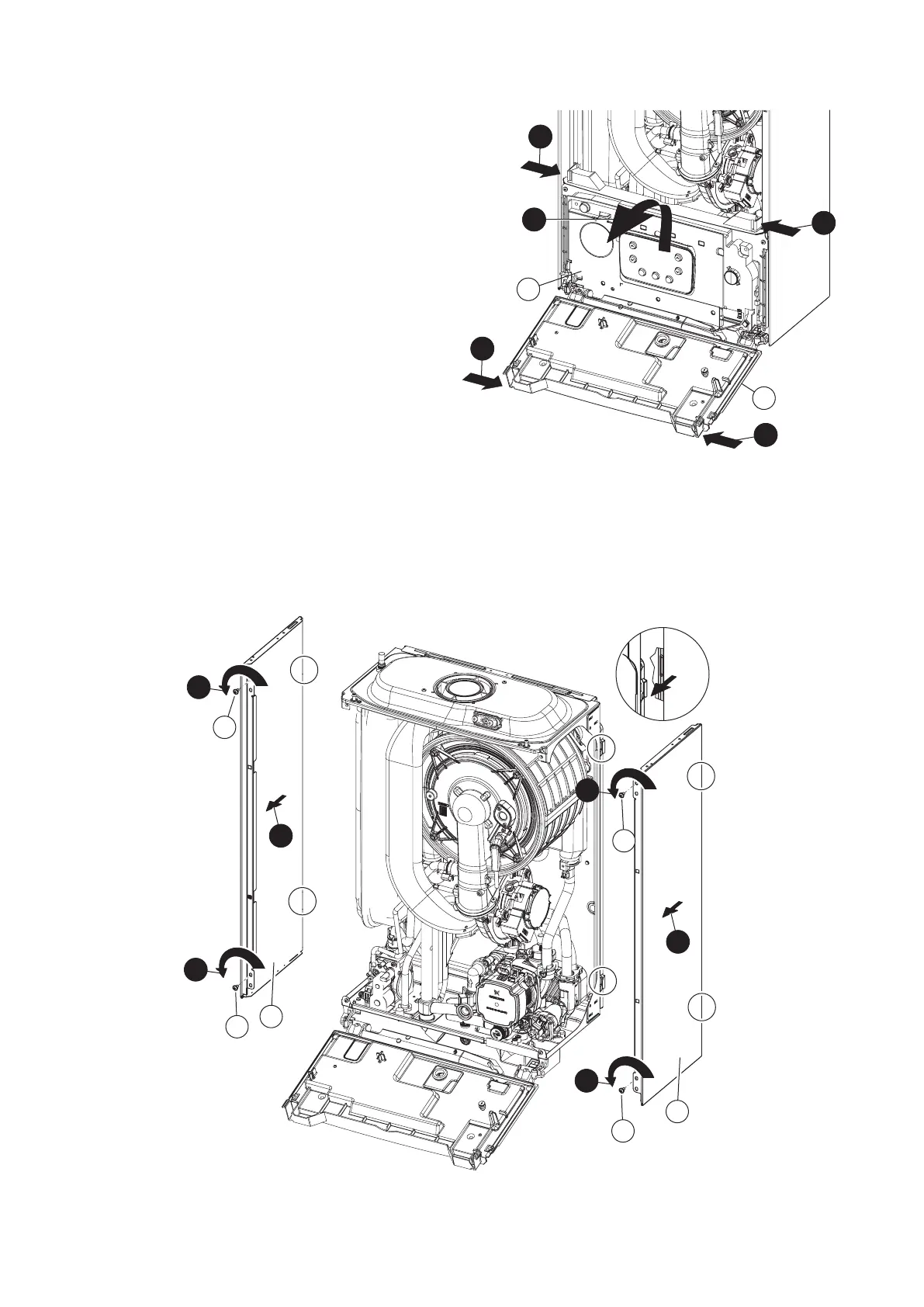

Control panel - Fig. 7.3
7. Press the hooks on the side of the control panel '7'.
8. Tilt the control panel 'G' towards you.
Side panels - Fig. 7.4
9. Remove the screws 'H' securing the side panel 'I'. Lift the side panel
and pull it forwards unhooking it from the rear panel (view 'A' in Fig.
7.4).
10. Lower the panel out and away from the top cover.
Note: The side panels require no sealing strip as the front case insulation
forms the room seal.
Fig. 7.3
Fig. 7.4
8
G
G
7
7
7
7
A
I
H
I
H
9
H
A
A
A
A
View A
10
10
9
9
H
A
9
