CONTROL & FEATURES
CONTROLS
DC Voltage Selector Switch
Fuel Valve Lever
OOFFFF
OONN

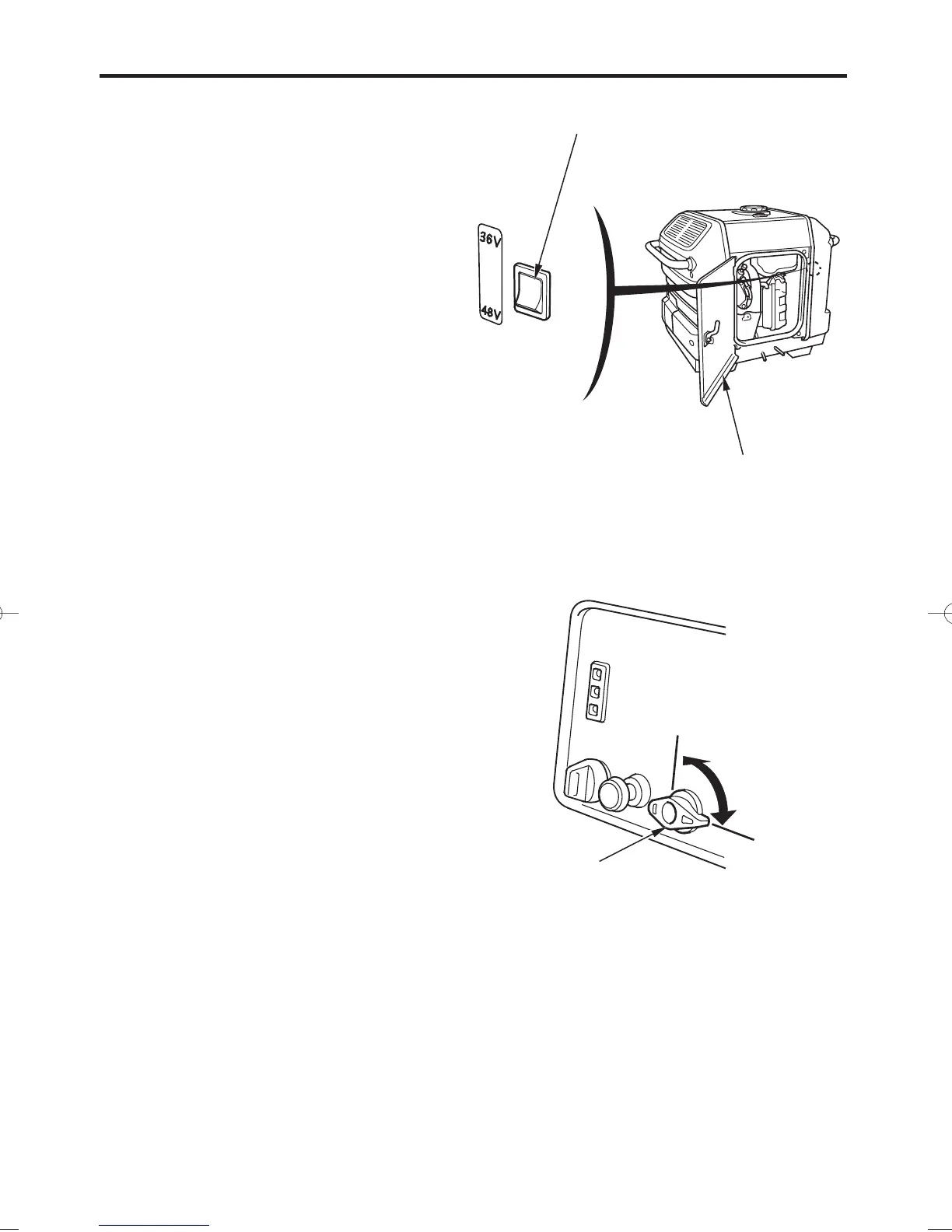

DC VOLTAGE SELECTOR SWITCH
FUEL VALVE LEVER
MAINTENANCE COVER
The DC voltage selector switch is
used to select generator DC
voltage; either 36 V or 48 V.
The fuel valve lever is located on
the control panel.
To operate the DC voltage
selector switch, make sure the
engine is off, then open the
maintenance cover.
After selecting the voltage, close
the maintenance cover.
Select the same voltage as the
battery voltage of the UPS battery
string.
The fuel valve lever must be in the
ON position for the engine to run.
After stopping the engine, turn
the fuel valve lever to the OFF
position.
