SERVICING YOUR GENERATOR
SPARK ARRESTER SERVICE
6mmBOLTS
REAR COVER
6 mm CAP NUTS
REAR HANDLE
6mmBOLTS
8mmBOLTS
UPPER MUFFLER
PROTECTOR
LOWER MUFFLER
PROTECTOR
REAR UNDER PLATE
WASHER
WASHER
6mmBOLTS
The spark arrester must be serviced every 100 hours to keep it
functioning as designed.
If the engine has been running, the muffler will be very hot. Allow the
muffler to cool before servicing the spark arrester.

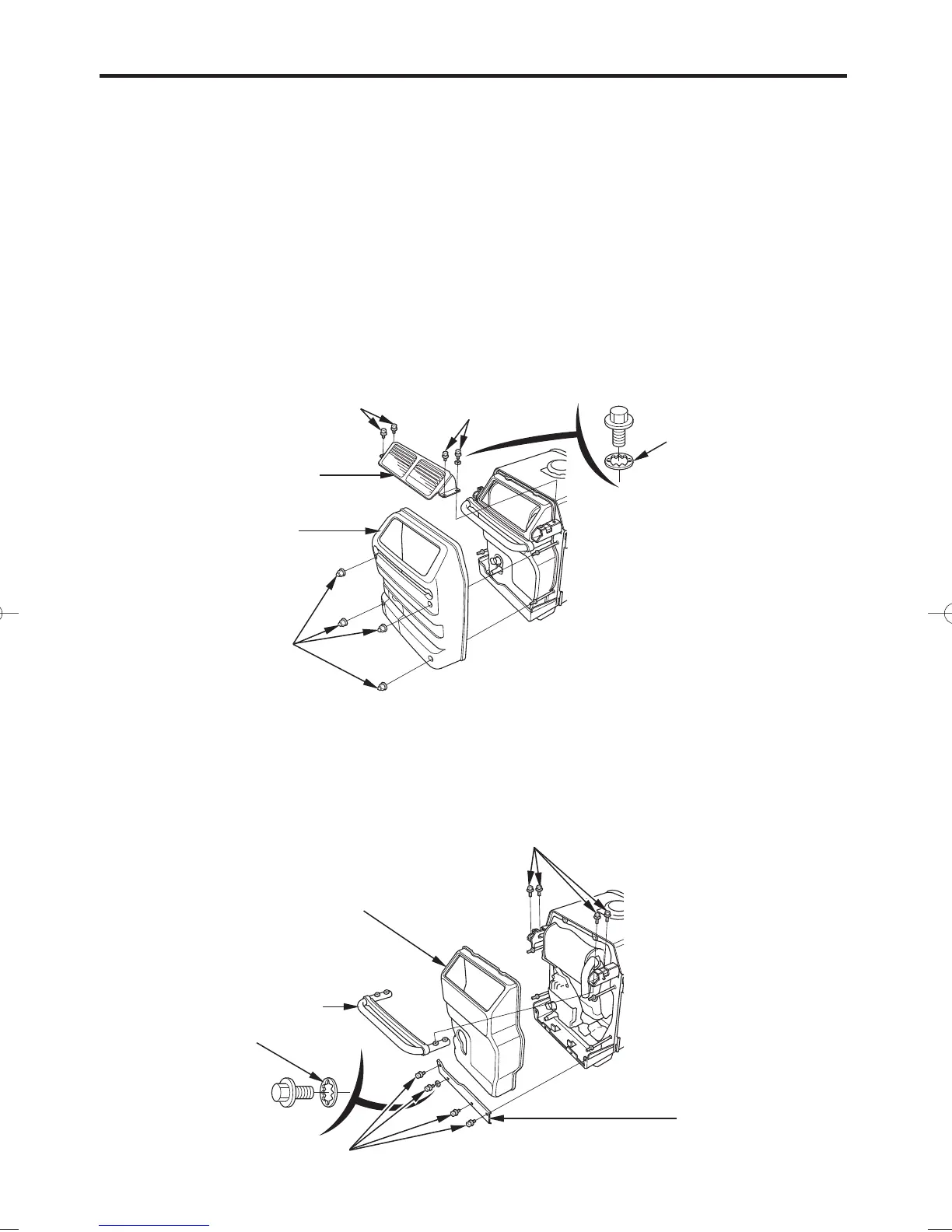

Remove the four 6 mm cap nuts, and remove the rear cover.
Remove the four 6 mm bolts, and remove the upper muffler
protector.
Remove the lower muffler protector.
Remove the four 6 mm bolts, and remove the rear under plate.
Remove the four 8 mm bolts, and remove the rear handle.
1.
2.
3.
5.
4.
