AlphaGen DCX3000 - Starting the Engine;DC Operation

23
OPERATION
STARTING THE ENGINE/DC OPERATION

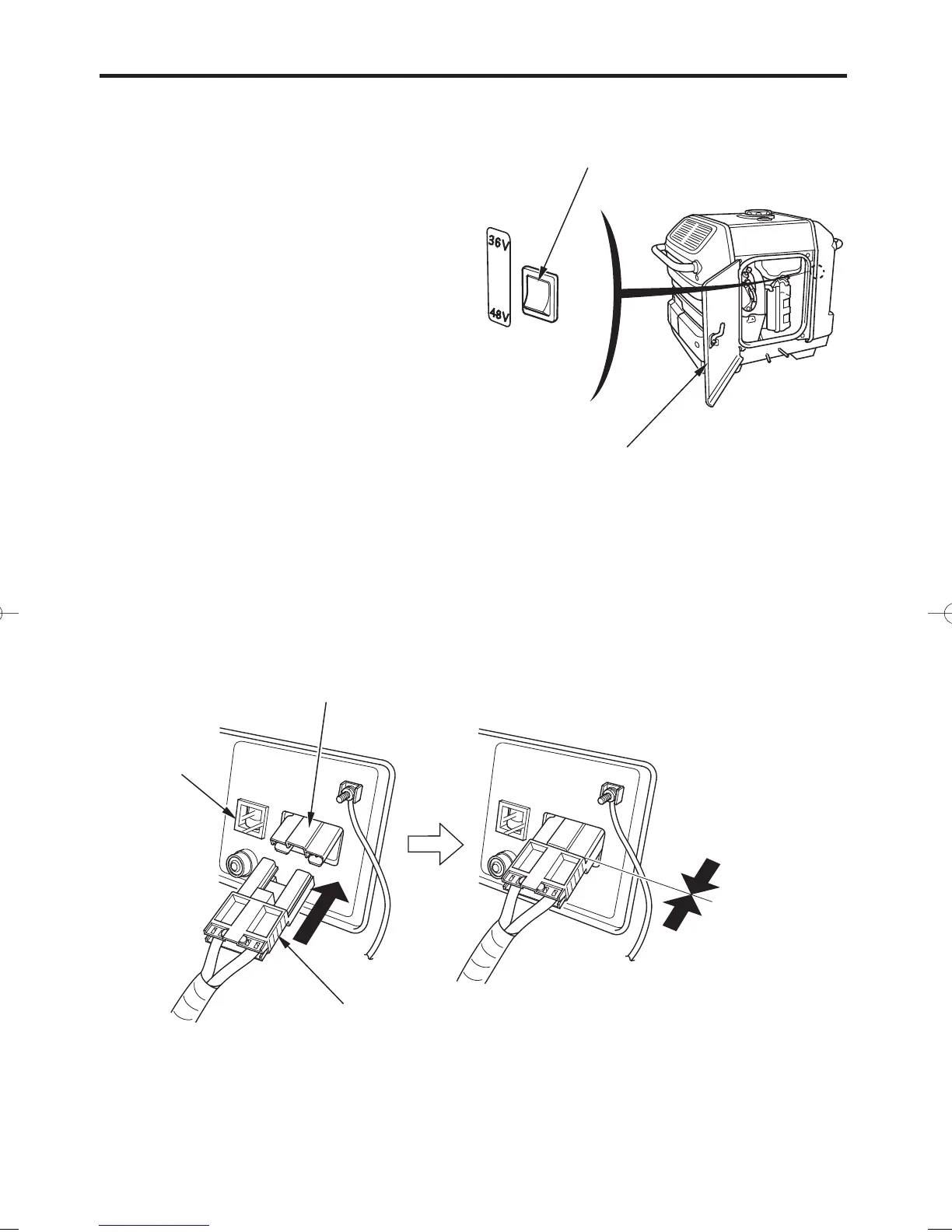

DC OUTPUT COUPLER
POWER CORD COUPLER
DC VOLTAGE SELECTOR SWITCH
VOLTMETER
MAINTENANCE COVER
No gap
Select the same voltage as the
battery voltage of UPS.
Connect the power cord of UPS to the DC output coupler.
When the UPS battery string is connected to the generator, the back
light in the voltmeter is turned on and indicates the battery string
voltage.
Select the DC voltage selector
switch; either 36 V or 48 V.
Open the maintenance cover.
Close the maintenance cover.
1.
a.
b.
c.
2.
