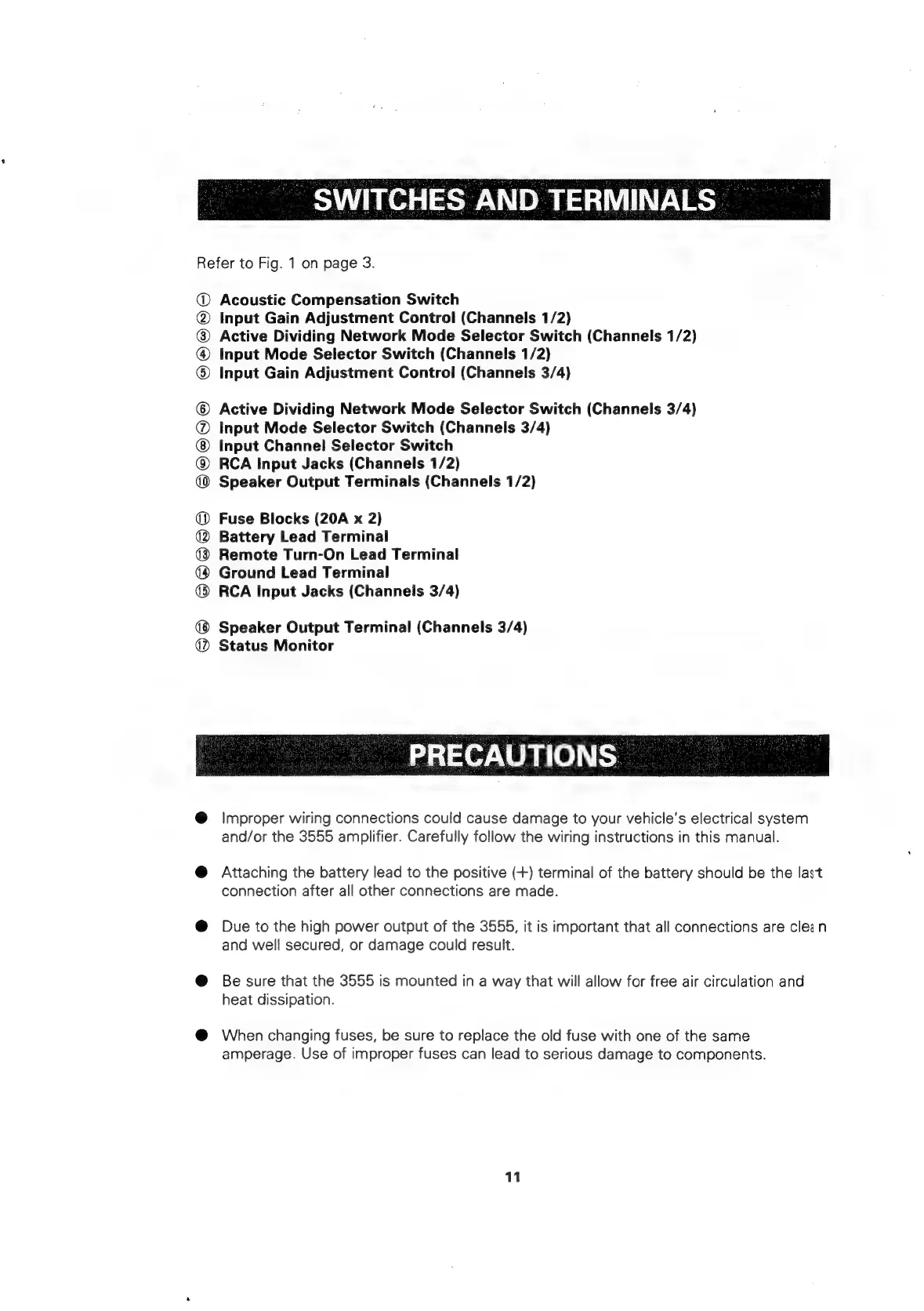

SWITCHES AND TERMINALS |
Refer to Fig. 1 on page 3.
@® Acoustic Compensation Switch
@ Input Gain Adjustment Control (Channels 1/2)
® Active Dividing Network Mode Selector Switch (Channels 1/2)
@ Input Mode Selector Switch (Channels 1/2)
® Input Gain Adjustment Control (Channels 3/4)
© Active Dividing Network Mode Selector Switch (Channels 3/4)
@ Input Mode Selector Switch (Channels 3/4)
Input Channel Selector Switch
@® RCA Input Jacks (Channels 1/2)
@ Speaker Output Terminals (Channels 1/2)
@ Fuse Blocks (20A x 2)
@ Battery Lead Terminal
@ Remote Turn-On Lead Terminal
@ Ground Lead Terminal
@ RCA Input Jacks (Channels 3/4)
d Speaker Output Terminal (Channels 3/4)
) Status Monitor
-1=e7-\ OnE (@)\\ oe
@ Improper wiring connections could cause damage to your vehicle's electrical system
and/or the 3555 amplifier. Carefully follow the wiring instructions in this manual.
@ Attaching the battery lead to the positive (+) terminal of the battery should be the last
connection after all other connections are made.
@ Due to the high power output of the 3555, it is important that all connections are clean
and well secured, or damage could result.
@ Be sure that the 3555 is mounted in a way that will allow for free air circulation and
heat dissipation.
@ When changing fuses, be sure to replace the old fuse with one of the same
amperage. Use of improper fuses can lead to serious damage to components.
11
