Alpine CD Shuttle Controller 7292MS - Specifications

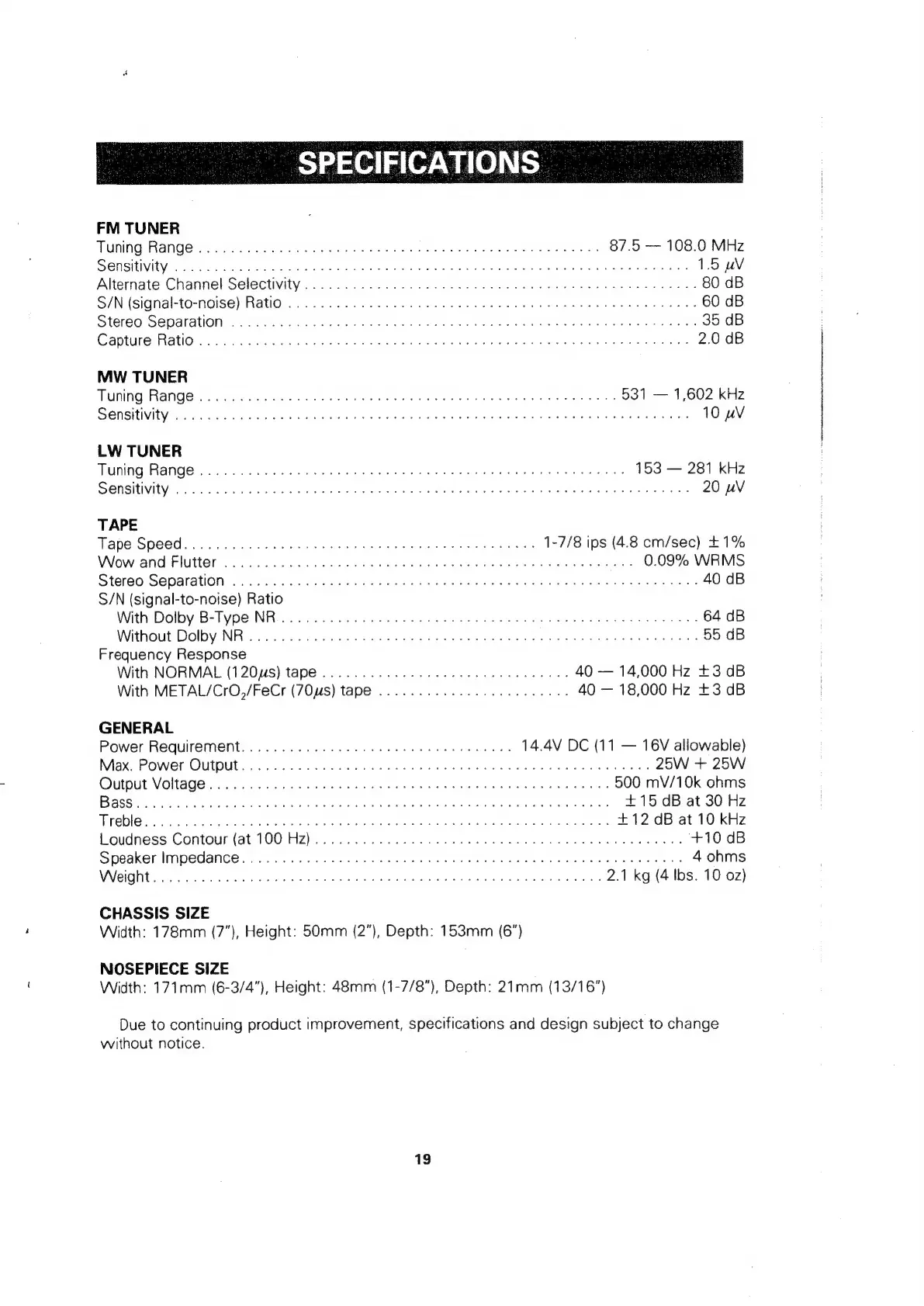

SPECIFICATIONS
FM TUNER
TUNING RANnGG toca cantons ewes, nit ah ea oe WP Cede 87.5 — 108.0 MHz
SGNSIIVIEV eo 25, cence earn ip Slo ees wa a de a aN palma Nhe Ce eat Se 1.5 uv
Alternate Channel Selectivity... 0.0.0.2 000 eee 80 dB
S/Nitsidmal-te-n0ise) RANG 605 66a 2a beware swe Be GR te ak Meee bh eerened 60 dB
Stereo Separation «ha qra md eag ahadehl Pachedaey oe Rebvece tented Big Uae Sab tae eee eae 35 dB
CapturesRatie o 22. .csida ecg arses Agee ee eatattiieilicasy tere bade tg aul e etala tay ay 2.0 dB
MW TUNER
TUNING! RANGE: saci ses eee Ak Lee el eS thal Wee eastern 531 — 1,602 kHz
SGNSIUVIEY son oe ates nwt set Nate ema tay banded aaa hae bad aan BU tu aeing Spent MEY Ls 10 uv
LW TUNER
Tuning Range: sec ss.o: 264.4 noe sighs GEES Lames pd Re aed eee Pale Ch Lobe be 153 — 281 kHz
S GriSItivit ass ncrvet recat epee th eae RA he Eat oS 8 Seats Ramee, Sok bowie bd 20 uV
TAPE
Vane Speed: cc cea eae pada de ew reise sled etale shades 1-7/8 ips (4.8 cm/sec) +1%
Wow and: Flutter 2.5 2 ee ae Re ned As eden ee ended oehaa eines 0.09% WRMS
SieieO- Separations scr 2. ad eet aimee he ORM eM ee eu 5 Met en eads enon goviads 40 dB
S/N (signal-to-noise) Ratio
With Dolby: BeType:NAiowic Sie e8 Saeko Aa atigns awe arte ease eed 64 dB
WIiTROULDOIDY NR co otieF fic cen patie ascnts tenet a gulls 25 Mace or iain oats aces 55 dB
Frequency Response
With NORMAL (120s) tape ..........0 0.0. 40 — 14,000 Hz +3 dB
With METAL/CrO,/FeCr (7Ous) tape .................0000004 40 — 18,000 Hz +3 dB
GENERAL
Power Requirement................ 0000 cee eee eee 14.4V DC (11 — 16V allowable)
Max: Power Output... ecco e need ee ee ee Oe ey dee bee ee ene es 25W + 25W
QOuipMt VOtsue 2 se oh wets sh dea dehy wk lore iesenin tru 4S ge A ea ag 2g 500 mV/10k ohms
BaSSe. ie ets eovonteretes dae ba hie aes sataden ee A apap toe ea ag tes ey sees +15 dB at 30 Hz
EOD Greet iste flat Saas cake le a sas estan sh ga etn BO bes untae enna tag es eRe cea +12 dB at 10 kHz
Loudness Contour (at 100 Hz)... 2.0... neers +10 dB
Speaker Impedance cs) et A ean ea eee wile eres Sues yah wnat ass 4 ohms
NAV CIQINE ica. ast oe ghisejran a ar tts eg nee asne wangn gamle Mido a Mal eh yh nee he Les as tay Sek 2.1 kg (4 Ibs. 10 oz)
CHASSIS SIZE
Width: 178mm (7"), Height: 50mm (2"), Depth: 153mm (6")
NOSEPIECE SIZE
Width: 171mm (6-3/4"), Height: 48mm (1-7/8"), Depth: 21mm (13/16")
Due to continuing product improvement, specifications and design subject to change
without notice.
