When the subwoofer is on, you can select either SYS 1 or SYS 2 for the
desired subwoofer effect.
 Setting item: SUBW SYS
Setting contents:
SUBW SYS 1 / SUBW SYS 2 (Initial setting)
SUBW SYS 1:
Subwoofer level changes according to the main volume setting.
SUBW SYS 2:
Subwoofer level change is different from the main volume setting.
For example, even at low volume settings, the subwoofer is still
audible.
Connecting to an External Amplifier (POWER IC)
When an external amplifier is connected, sound quality can be
improved by stopping the power supply of the built-in amplifier.
 Setting item: POWER IC
Setting contents:
OFF / ON (Initial setting)
OFF:
Use this mode when the line output of this unit is used to drive an
external amplifier. In this setting, the head unit’s internal amplifier
is turned OFF and cannot drive speakers.
ON:
The speakers are driven by the built-in amplifier.
OFF:
ON:
Note
• No sound is produced by the system when the power output is set to
OFF.
MX (Media Xpander) makes vocals or instruments sound distinct
regardless of the music source. The CD, iPod, etc. will be able to
reproduce the music clearly even in cars with a lot of road noise.
 Setting item: MX SETTING
Setting contents:
FM / CD
*
/ CMPM
*
/ USB / iPod / BT AUDIO / AUX
FM (LEVEL 1 to 3):
The medium to high frequencies become clearer, and produces
well balanced sound at all frequencies.
CD
*
(LEVEL 1 to 3):
CD mode processes a large amount of data during playback. MX
takes advantage of this large data quantity to reproduce a clearer,
cleaner output.
CMPM
*
/ USB / iPod / BTAUDIO (LEVEL 1 to 3):
This corrects information that was lost at the time of compression.
This reproduces a well-balanced sound close to the original.
AUX (LEVEL 1 to 3):
Choose the MX mode that corresponds to the media connected.
* CDE-143EBT/CDE-143EBTTH only.
Notes
• Each music source, such as CD and MP3/WMA/AAC can have its own
MX setting.
• On disks with both MP3/WMA/AAC and CD-DA, when the source
changes from “MP3/WMA/AAC to CD-DA” or “CD-DA to MP3/
WMA/AAC”, MX-mode switching may delay playback slightly.
• Setting to LEVEL OFF sets MX mode of each music source to OFF.
• The function is inoperable when DEFEAT is set to ON.
• There is no MX mode for AM radio.

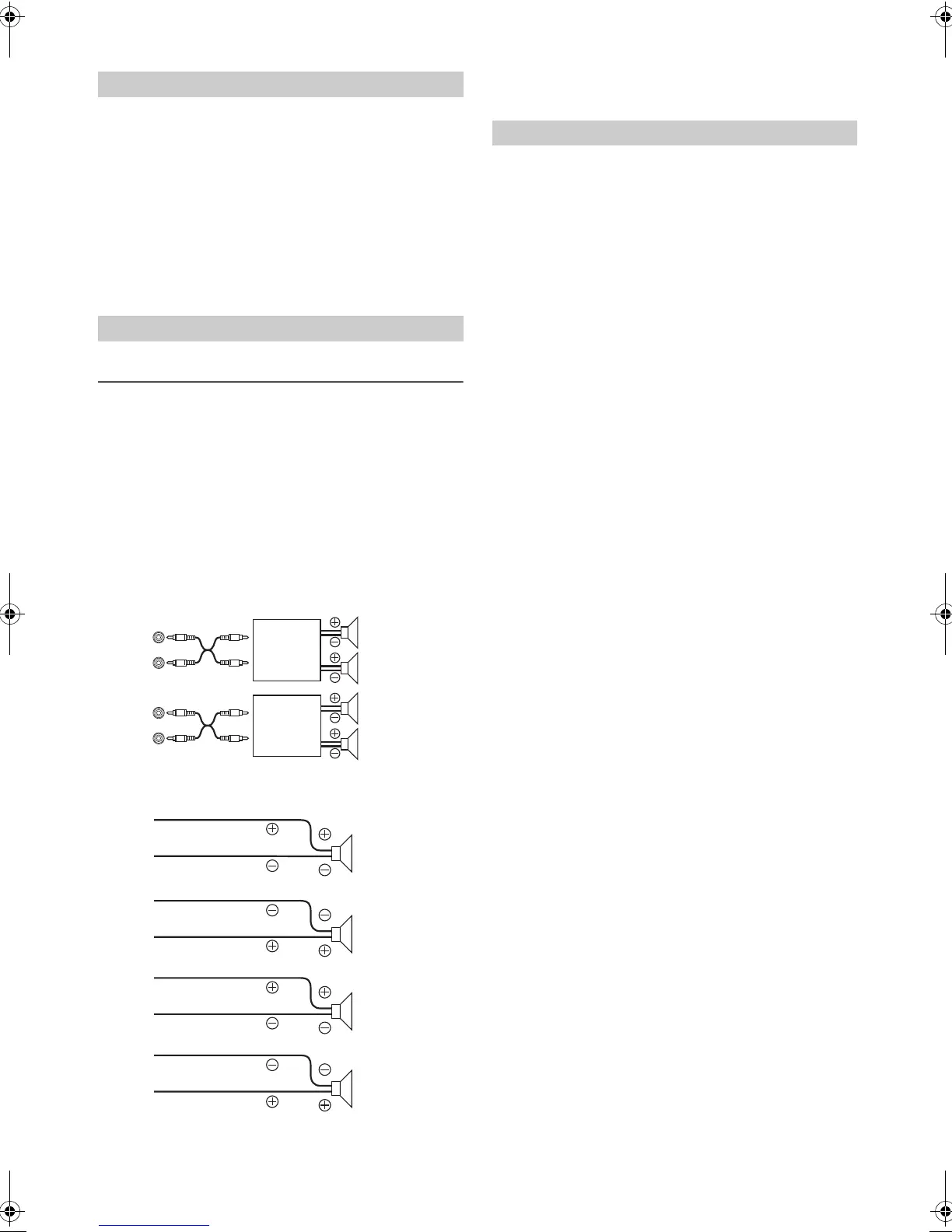

Setting the Subwoofer System
External Device
Front
Left
Amplier
Front
Right
Rear
Left
Amplier
Rear
Right
Speakers
SPEAKER
RIGHT FRONT
Front
Right
SPEAKER
RIGHT REAR
Rear
Right
SPEAKER
LEFT REAR
Rear
Left
SPEAKER
LEFT FRONT
Front
Left
Setting the MX Level
