Owner’s manual Installation
Installation
When making connections to the vehicle’s electrical
system, be aware of the factory installed components
(e.g. on-board computer). Do not tap into these leads to
provide power for this unit. When connecting the ICS-
X8 to the fuse box, make sure the fuse for the intended
circuit of the ICS-X8 has the appropriate amperage.
Failure to do so may result in damage to the unit and/or
the vehicle. When in doubt, consult your Alpine dealer.
The Display must be completely retracted in the casing
when installing. If it is not, problems may occur.

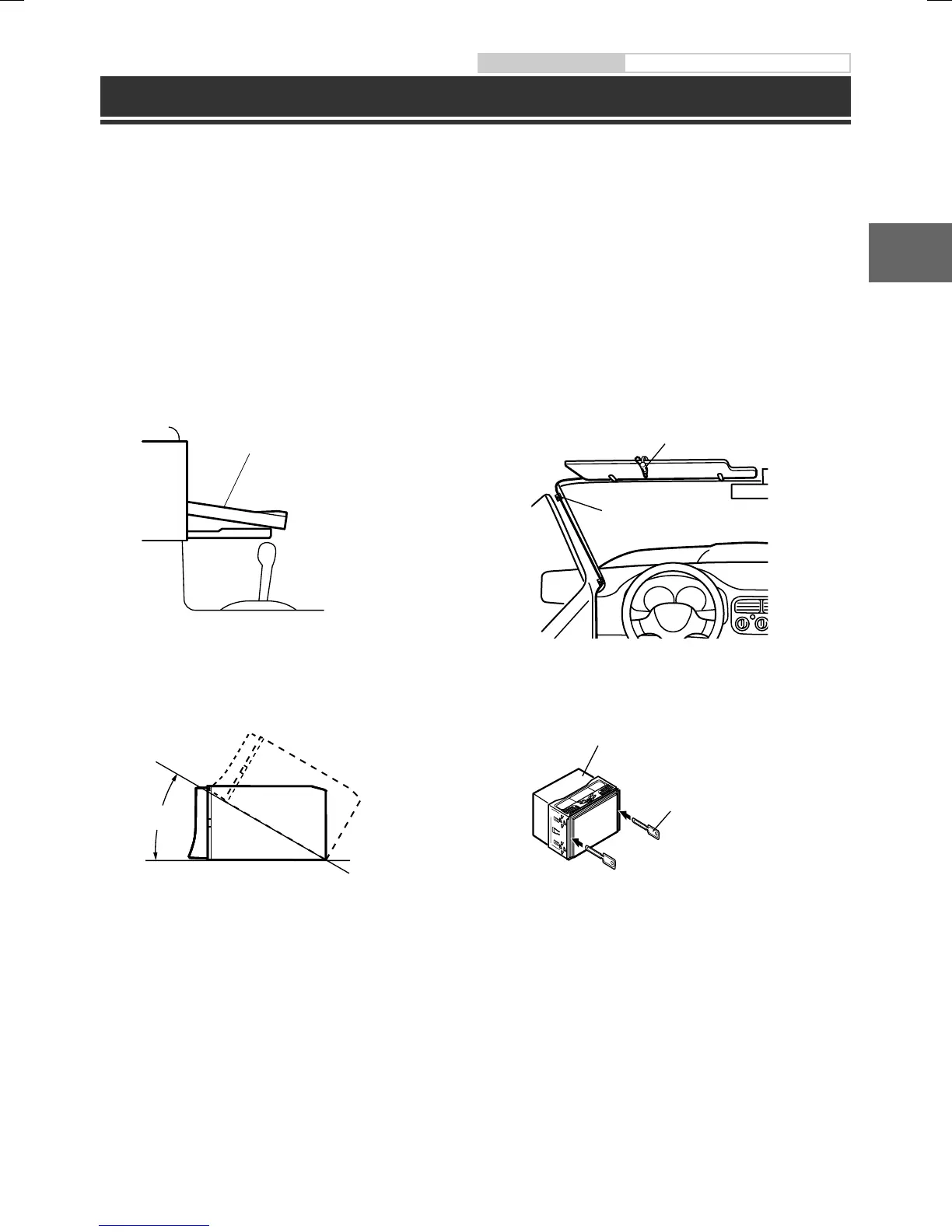

1 Before installing, make sure that the
opening and closing of the display will not
interfere with operation of the gear shift.
Movable Display
2 Install at an angle between horizontal
and 30°. Note that installing at an angle
outside of this range will result in a loss of
performance and possibly damage.
0 - 30°
•
•
3 Mounting the Microphone.
For safe use, make sure of the following:
location is stable and firm.
driver’s view and operations are not obstructed.
microphone is located where the driver’s voice
can be easily picked up (on the sun visor, etc.).
When you speak into the microphone, you should
not have to change your driving posture. This may
cause a distraction, taking your attention away
from safely driving your vehicle. Carefully consider
direction and distance while mounting the
microphone. Confirm that the driver’s voice can be
easily picked up at the selected location.
Microphone
Cable clamp
(Sold separately)
4 Remove the mounting sleeve from the
main unit.
This unit
Bracket keys
(Included)
Slide the unit into the mounting sleeve and
secure it.
•
•
•
To Next Page
