Owner’s manual Connections
Connections

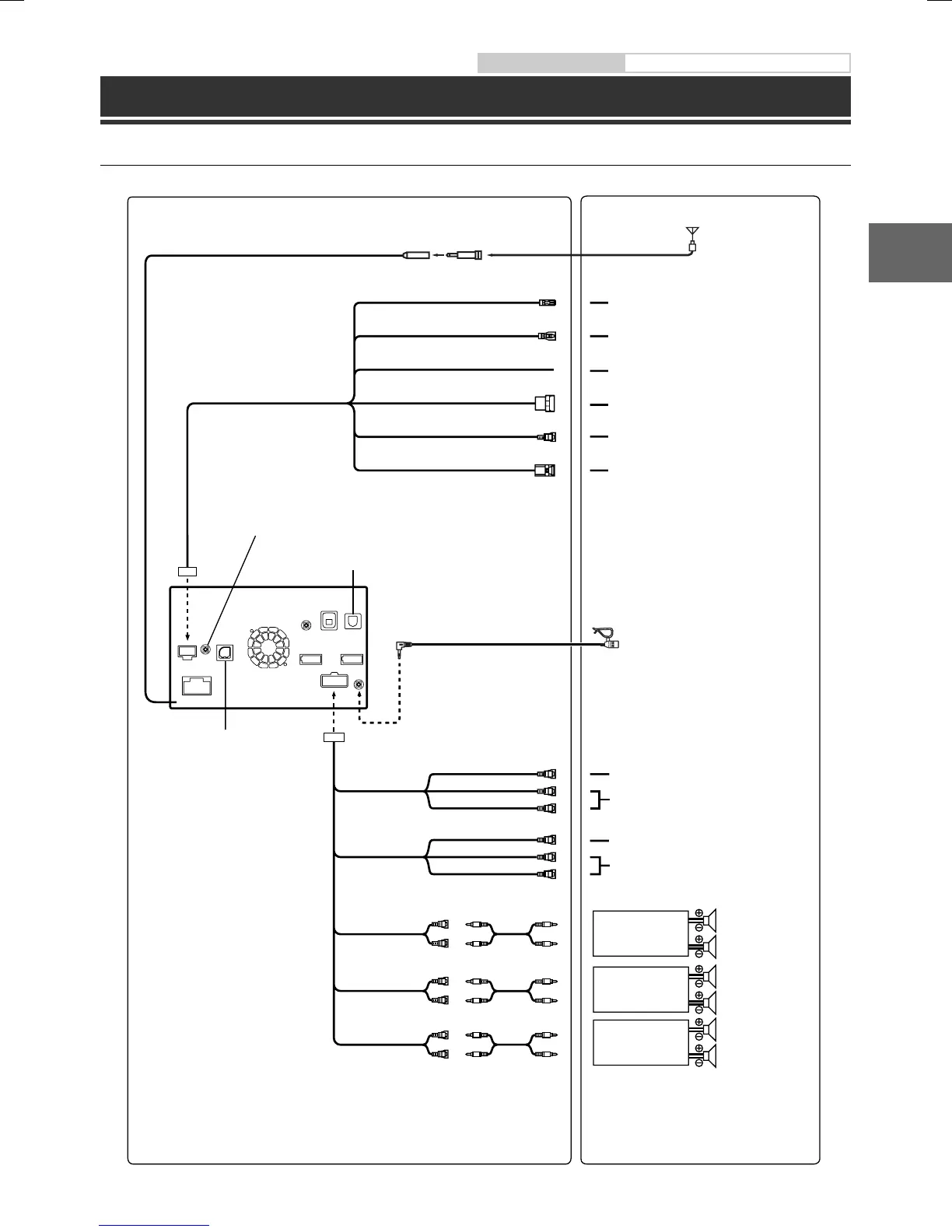

Connections 1/2
REMOTE OUT
To steering remote control
interface box.
Antenna
Connect this to the optional Vehicle
Display Interface box.
Connect this to the RGB output
terminal of the Navigation System.
(Brown)
REMOTE IN
(Brown)
REVERSE
(Orange/White)
CAMERA1
CAMERA2
CAMERA SW
(Yellow)
(Red)
(White)
(Yellow)
(Red)
(White)
ISO Antenna Plug
To remote input lead
To remote output lead
To plus side of the back lamp
signal lead of the car
To Rear camera
Not used
Not used
Microphone (Included)
To Video Output terminal
To Audio Output terminals (R, L)
To Video Input terminal
To Audio Input terminals (R, L)
Amplifier
Rear Left
Rear Right
Amplifier
Front Left
Front Right
Amplifier Subwoofers

Alpine ICS-X8 Specifications

General

MP3 playback	Yes
Playback disc formats	CD audio
Audio formats supported	AAC, MP3, WMA
Video formats supported	AVI, DIVX
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
LW band range	153 - 281 kHz
Supported radio bands	AM, LW, MW
Preset stations quantity	30
Output power	200 W
RDS features	AF, EON, PTY, TA, TP
Product color	Black
Frequency range	5 - 20000 Hz
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Audio output channels	2.0 channels
Equalizer bands quantity	9
Analog signal format system	NTSC, PAL
Signal-to-Noise Ratio (SNR)	100 dB
Display type	LCD
Display diagonal	7 \
Display resolution	800 x 480 pixels
On Screen Display (OSD) languages	DEU, DUT, ENG, ESP, FIN, FRE, ITA, NOR, POR, RUS, SWE
USB version	2.0
Bluetooth version	2.1+EDR
Bluetooth profiles	A2DP, AVRCP, HFP, OPP, PBAP, SPP
USB ports quantity	2
Apple docking compatibility	Not supported
Cables included	USB
File format system	FAT 16/32
Power requirements	14.4V DC
Compatible products	iPod touch 4G/3G/2G/1G\\r iPod nano 6G/5G/4G/3G/2G/1G\\r iPod classic\\r iPod video\\r iPhone 4\\r iPhone 3GS\\r iPhone 3G\\r iPhone\\r Nokia 700, 701, 603, 808\\r Nokia N9, N8, E6, E7, X7, C6-01, C7
Operating temperature (T-T)	-20 - 60 °C

Weight and Dimensions

Weight	2600 g
Dimensions (WxDxH)	178 x 159 x 100 mm
