Alpine ICS-X8 Quick Reference Guide

ALPINE ICS-X8 68-13530Z89-A (EN)
14-EN

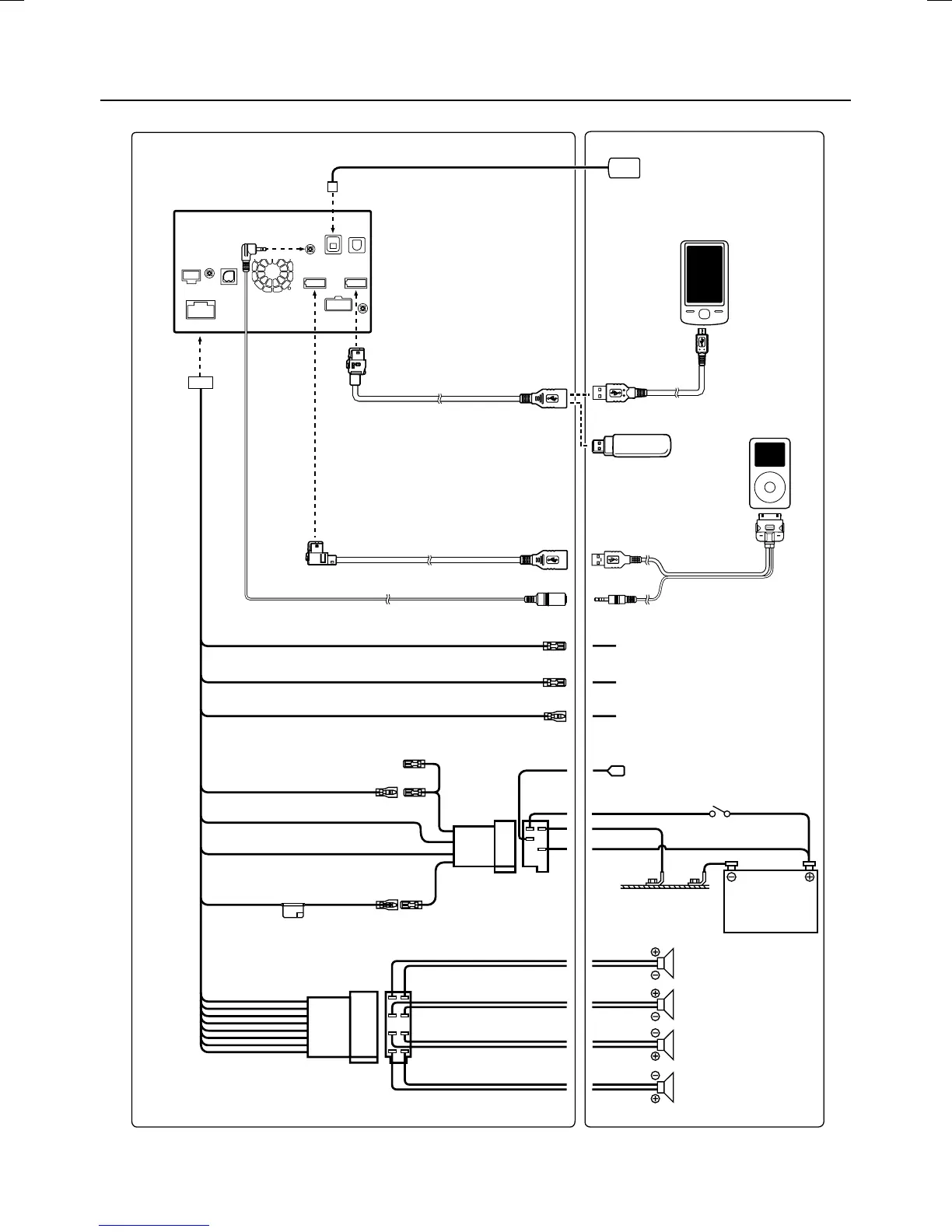

Connections 2/2
(Blue/White)
REMOTE TURN-ON
GPS Antenna (Sold separately)
KAE-100GPS
Nokia Phone
(Sold separately)
Nokia cable (Included)
USB extension cable (I type)
(Included)
iPod/iPhone
(Sold separately)
Connection kit KCU-461iV
(Sold separately)
USB extension cable (L type) (Included)
iPod VIDEO AV extension cable (Included with KCU-461iV)
10A
(Pink/Black)
AUDIO INTERRUPT IN
(Yellow/Blue)
PARKING BRAKE
(Red)
IGNITION
(Black)
GND
(Blue)
POWER ANT
(Yellow)
BATTERY
(Green)
(Green/Black)
(White)
(White/Black)
(Grey/Black)
(Grey)
(Violet/Black)
(Violet)
To amplifier or equalizer
Not used
To the parking brake
signal lead
To power antenna
Ignition key
Battery
Rear left
Front left
Front right
Rear right
Speakers
Spe
MONITO
Screen Size
LCD Type
Operation
S
Number of
Effective N
u
Illuminatio
n
FM TUNE
Tuning Ran
Mono Usab
50 dB Quie
Alternate
C
Signal-to-
N
Stereo Sepa
Capture Ra
MW TUN
Tuning Ran
Usable Sen
LW TUNE
Tuning Ran
Sensitivity (
USB SEC
USB require
Max. Power
USB Class
File Syste
m
MP3 Decod
WMA Deco
AAC Decod
Number of
Frequency
Total Harm
Dynamic R
a
Signal-to-N
Channel Se
Frequenc
software/
CD/DVD
Frequency
Wow & Flu
t
Total Harm
Dynamic R
a
*
USB Memory
(Sold separately)

Alpine ICS-X8 Specifications

General

MP3 playback	Yes
Playback disc formats	CD audio
Audio formats supported	AAC, MP3, WMA
Video formats supported	AVI, DIVX
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
LW band range	153 - 281 kHz
Supported radio bands	AM, LW, MW
Preset stations quantity	30
Output power	200 W
RDS features	AF, EON, PTY, TA, TP
Product color	Black
Frequency range	5 - 20000 Hz
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Audio output channels	2.0 channels
Equalizer bands quantity	9
Analog signal format system	NTSC, PAL
Signal-to-Noise Ratio (SNR)	100 dB
Display type	LCD
Display diagonal	7 \
Display resolution	800 x 480 pixels
On Screen Display (OSD) languages	DEU, DUT, ENG, ESP, FIN, FRE, ITA, NOR, POR, RUS, SWE
USB version	2.0
Bluetooth version	2.1+EDR
Bluetooth profiles	A2DP, AVRCP, HFP, OPP, PBAP, SPP
USB ports quantity	2
Apple docking compatibility	Not supported
Cables included	USB
File format system	FAT 16/32
Power requirements	14.4V DC
Compatible products	iPod touch 4G/3G/2G/1G\\r iPod nano 6G/5G/4G/3G/2G/1G\\r iPod classic\\r iPod video\\r iPhone 4\\r iPhone 3GS\\r iPhone 3G\\r iPhone\\r Nokia 700, 701, 603, 808\\r Nokia N9, N8, E6, E7, X7, C6-01, C7
Operating temperature (T-T)	-20 - 60 °C

Weight and Dimensions

Weight	2600 g
Dimensions (WxDxH)	178 x 159 x 100 mm
