ALPINE INE-W920R/INE-W928R QRG 68-21057Z30-A (EN)
12-EN

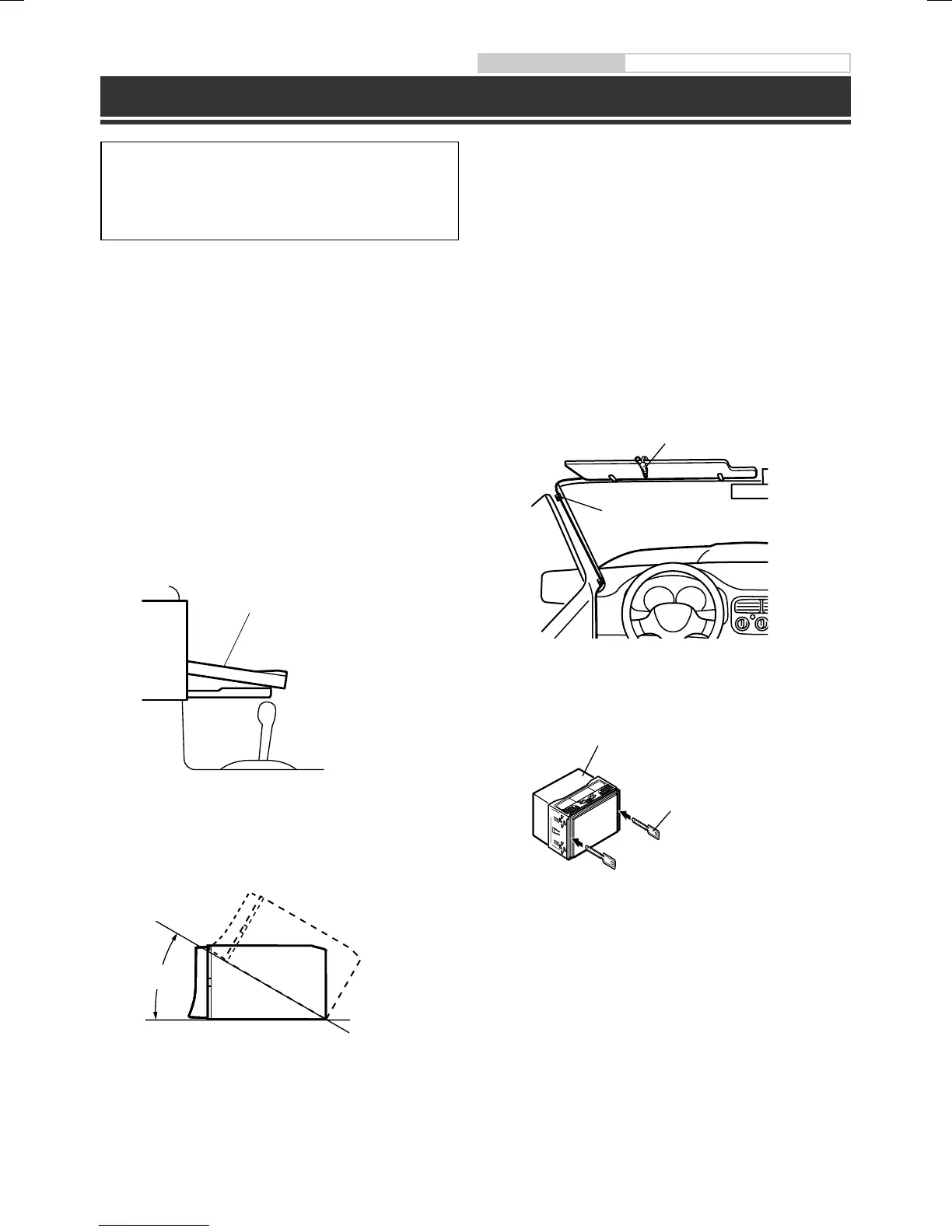

Owners manual Installation
Installation
INE-W928R users
To install the INE-W928R, refer to the manual in
the separately purchased installation kit for each
car type.
When making connections to the vehicles electrical
system, be aware of the factory installed components
(e.g. on-board computer). Do not tap into these leads to
provide power for this unit. When connecting the INE-
W920R/INE-W928R to the fuse box, make sure the fuse
for the intended circuit of the INE-W920R/INE-W928R
has the appropriate amperage. Failure to do so may
result in damage to the unit and/or the vehicle. When in
doubt, consult your Alpine dealer.
The Display must be completely retracted in the casing
when installing. If it is not, problems may occur.
1 Before installing, make sure that the
opening and closing of the display will not
interfere with operation of the gear shift.
(INE-W928R Only)
Movable Display
2 Install at an angle between horizontal
and 30°. Note that installing at an angle
outside of this range will result in a loss of
performance and possibly damage.
0 - 30°
3 Mounting the Microphone.
For safe use, make sure of the following:
location is stable and firm.
drivers view and operations are not obstructed.
microphone is located where the drivers voice
can be easily picked up (on the sun visor, etc.).
When you speak into the microphone, you should
not have to change your driving posture. This may
cause a distraction, taking your attention away
from safely driving your vehicle. Carefully consider
direction and distance while mounting the
microphone. Confirm that the drivers voice can be
easily picked up at the selected location.
Microphone
Cable clamp
(Sold separately)
4 Remove the mounting sleeve from the
main unit.
This unit
Bracket keys
(Included)
Slide the unit into the mounting sleeve and
secure it.
For IN
Mo
(In
P
P
Bracke
*1 If the
dashb
remed
*2 The su
5 Wh
the
the
the
the
un
su
un
alr
e
Conne
(If the AC
If your
separat
The dia
If the sw
vehicle
placed
