Owner’s manual Touch operation, Location of Controls, Turning Power On or Off
Getting Started
Touch operation
You can operate the system by using the touch panel on the screen.
Common onscreen buttons
: Returns to the previous screen. Depending on the function, this button may cancel the operations
performed on the screen.
: Closes the window.

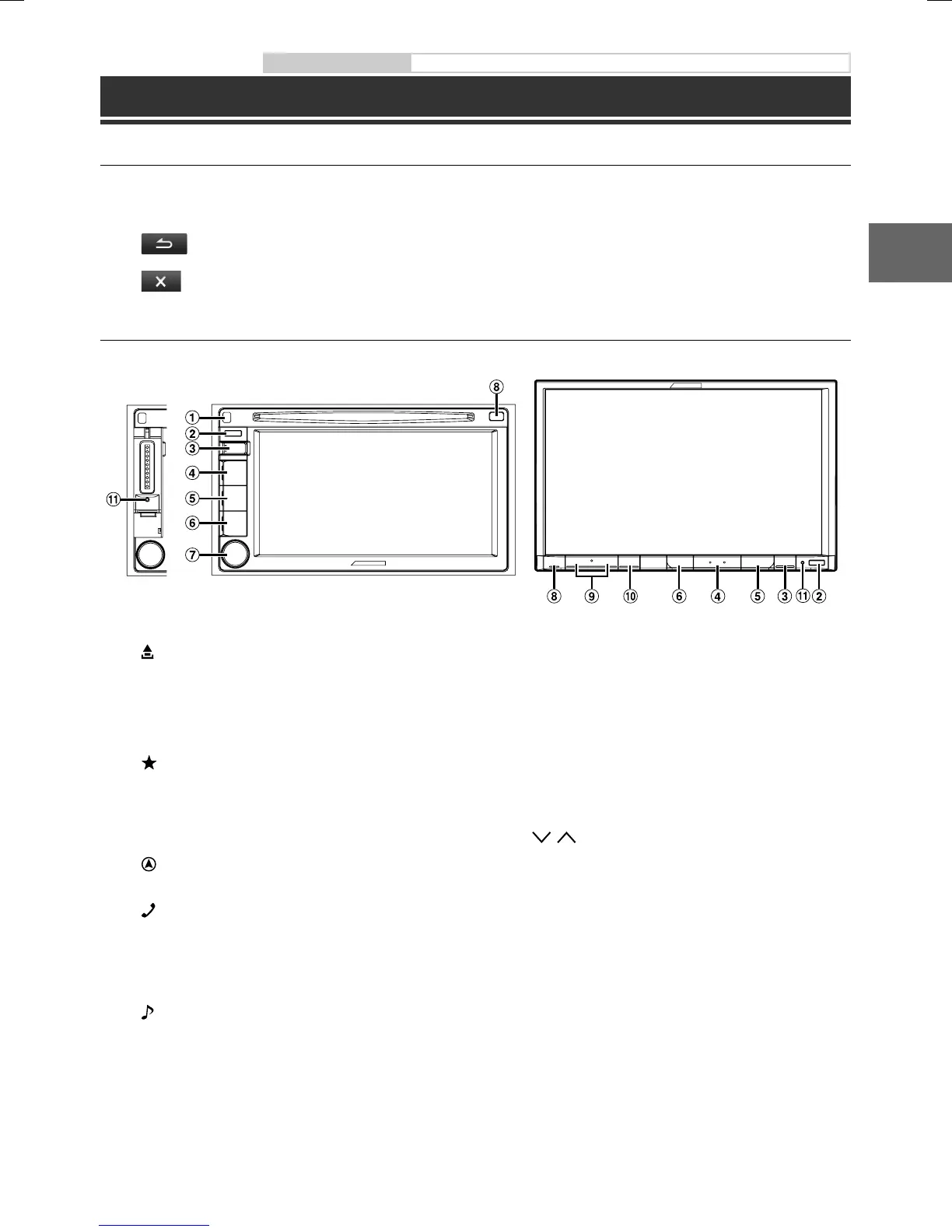

Location of Controls
e
DER
EL OR
etc., and
VIGATION
OR
FE
Any route
traffic
driving
Failure
al
product.
ine Service
XPERTS.
ical skill
here you
HEM
r than
securely
e resulting
INCHED
e seat rails)
mage to the
grommet
dge of the
URE OR
moisture
esult in
NT PANEL
he product.
A (Release) button (INE-W920R Only)
Use this button to remove the front panel.
B Remote Sensor
Point the remote control transmitter towards the
remote sensor within a range of 2 meters.
C
(My Favorites) button
The My Favorites screen for registered User 1 is
displayed.
Press and hold this button at least 3 seconds to switch
to User 2.
D (MAP) button
Recalls the navigation map screen.
E
(PHONE) button
Recalls the Telephone Menu screen.
When a hands-free phone is connected, press and
hold for at least 3 seconds to switch to the call history
screen.
F (AUDIO) button
Displays the Audio/Visual screen. If the Audio/Visual
screen is already displayed, changes the source.
INE-W920R: Press and hold AUDIO for at least 3 seconds
to activate the “Setting the Balance/Fader/
Subwoofer” mode.
INE-W928R: Press and hold for at least 3 seconds to turn
the power off.
G Rotary encoder/MUTE/C button (INE-W920R
Only)
Adjust the volume by turning to the left or right.
Press to activate /deactivate the mute mode.
Press and hold for at least 3 seconds to turn the power
off.
H c (Eject) button
INE-W920R: Ejects a disc.
INE-W928R: The Open/Tilt screen is displayed.
I
/ (UP/DOWN)button (INE-W928R Only)
Press to adjust the volume.
J MUTE button (INE-W928R Only)
Press to activate /deactivate the mute mode.
Press and hold MUTE for at least 3 seconds to activate
the “Setting the Balance/Fader/Subwoofer” mode.
K RESET switch
The system of this unit is reset.
INE-W920Re INE-W928Re

Alpine INE-W920R Specifications

General

FM band range	87.5 - 108 MHz
Supported radio bands	AM, LW, MW
Preset stations quantity	30
Widescreen	-
Display diagonal	6.1 \
Display resolution	800 x 480 pixels
DIN size	2 DIN
Form factor	Fixed
Product color	Black
Bluetooth version	2.1+EDR
Cables included	USB
Built-in camera	No
Audio formats supported	AAC, MP3, WMA
Video formats supported	AVI, DIVX
Map coverage	Eastern Europe, Western Europe
Number of countries covered	46
Power source type	DC

Weight and Dimensions

Depth	165 mm
Width	178 mm
Height	100 mm
Weight	2300 g
