Alpine INE-W920R Quick Reference Guide

ALPINE INE-W920R/INE-W928R QRG 68-21057Z30-A (EN)
15-EN

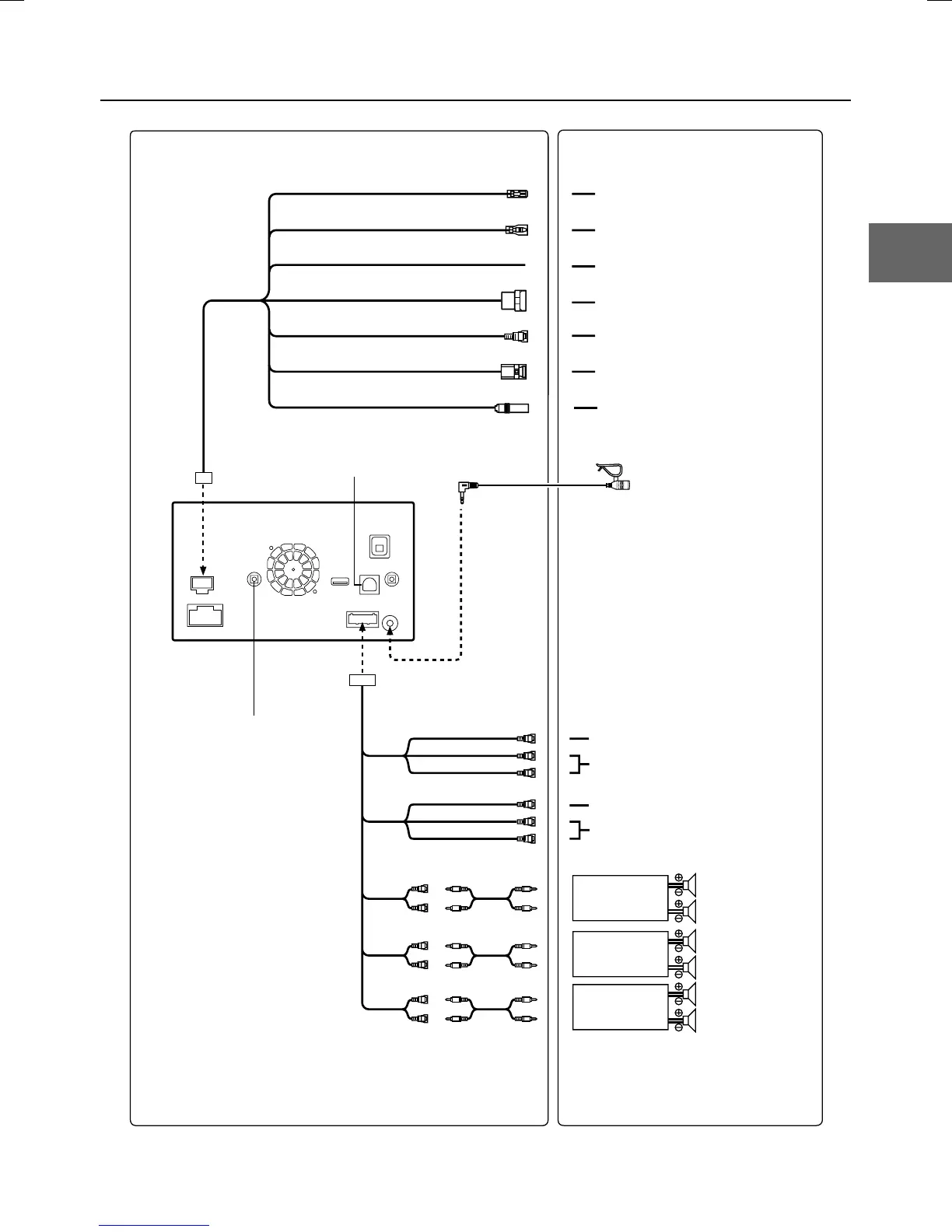

Connections 2/2
REMOTE OUT
(Brown)
REMOTE IN
(Brown)
SPEED SENSOR
(Green/White)
CAMERA1
CAMERA2
CAMERA SW
Connect this to the optional Vehicle
Display Interface box
To steering remote control interface box
(INE-W920R Only)
(Yellow)
(Red)
(White)
(Yellow)
(Red)
(White)
To Video Output terminal
To Audio Output terminals (R, L)
To Video Input terminal
To Audio Input terminals (R, L)
Amplifier
Amplifier
Amplifier
Rear Left
Rear Right
Front Left
Front Right
Subwoofers
To remote input lead
To remote output lead
To the vehicle speed pause line
To Rear/Other camera
To Front/Rear camera
Not used
To steering remote control interface box
(INE-W928R Only)
Microphone (Included)
car

Alpine INE-W920R Specifications

General

FM band range	87.5 - 108 MHz
Supported radio bands	AM, LW, MW
Preset stations quantity	30
Widescreen	-
Display diagonal	6.1 \
Display resolution	800 x 480 pixels
DIN size	2 DIN
Form factor	Fixed
Product color	Black
Bluetooth version	2.1+EDR
Cables included	USB
Built-in camera	No
Audio formats supported	AAC, MP3, WMA
Video formats supported	AVI, DIVX
Map coverage	Eastern Europe, Western Europe
Number of countries covered	46
Power source type	DC

Weight and Dimensions

Depth	165 mm
Width	178 mm
Height	100 mm
Weight	2300 g
