10
The general purpose inputs makes actions defined in the 3cMAP software as:
Preset Recall, Input levelling, Input On/Off, Output levelling, Output On/Off, Routing select and levelling, Voice
messages prompts and logic outputs.
As the MAP processors has no user front panel control it makes ideal for permanent installations where
security is an issue. However sometimes and due to many factors as time of the day, room size, etc some
settings needs changes. This changes can be easily done making a preset Recall by using user installed
switches connected to the GPIO's connectors or by using the remote controls REM-2 units. These switches when
closed would recall previously defined preset that makes the appropriate change.
The outputs are open collector, so we can feed to other power circuits provided (50 Volts DC maximum).
In the output connector is available a supply of 5 volts DC to power the open collector circuit, this power is limited
to 500 mA. The outputs can be connected to LEDs indicators and DC relays among others.

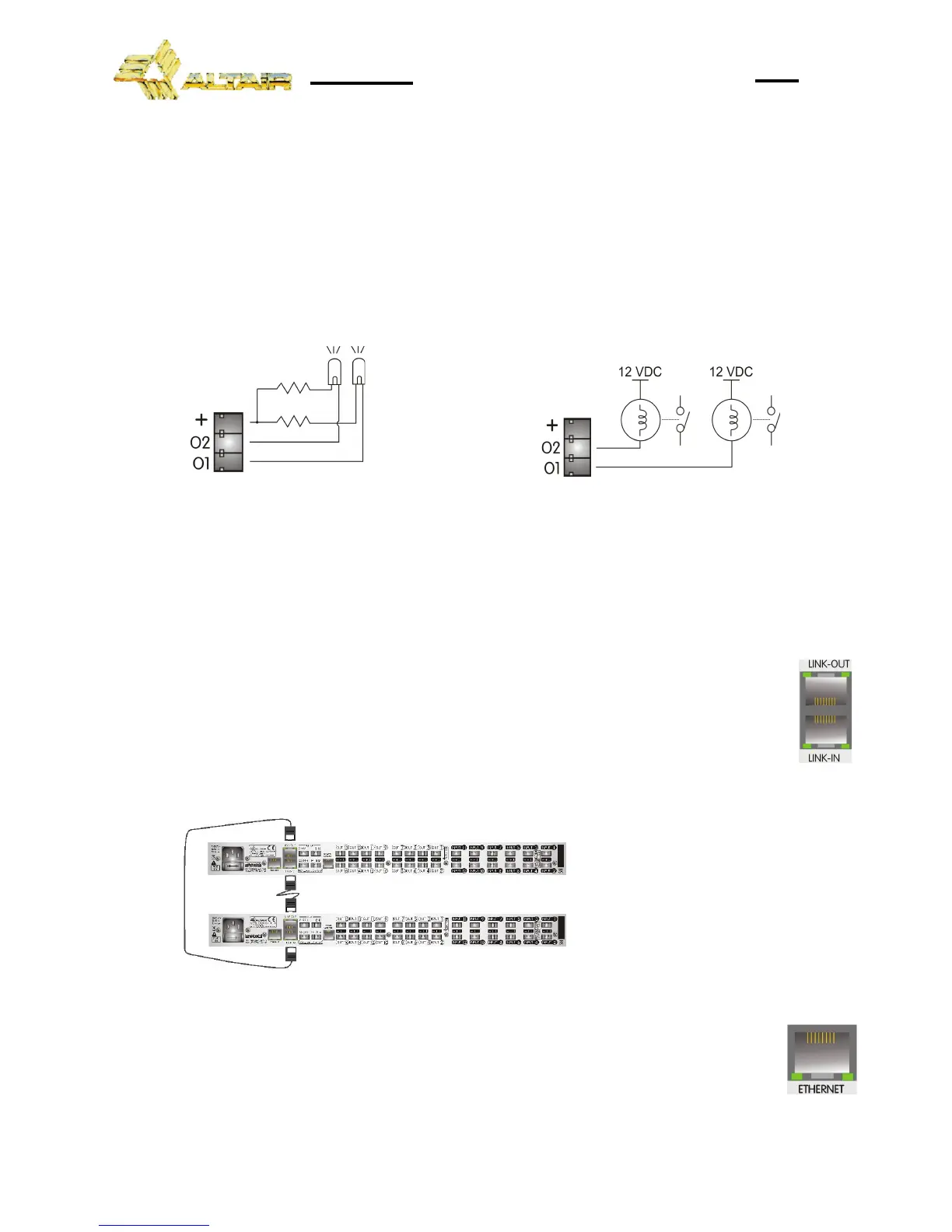

LED LAMPS DC RELAY CONTROL
To general-purpose outputs generates logic signals upon controls defined on the 3cMAP software as:
Input On/Off, Input signal presence, Input peak, Output On/Off, Output signal presence, Output peak, GPIO
Remote Schedule, Ethernet Link led status, Usb link led status.
As an example a led lamp connected on O1 would light when the output 8 level reaches a peak or a
relay connected on O2 would changeover when a schedule event is active.
6.5 LINK CONNECTORS
When the installation requires more inputs or outputs the unit incorporates a LINK connection
for cascading to another unit (MAP series only) so making a combined processing of the two unit's
signals.
Linking is made by using two RJ45 Ethernet leads connecting the Link-Out from one unit to the
Link-In to the other in both units. Leads are composed of four pairs of twisted wire as the cat5 cords.
Lead pin-out must be pin to pin type so each end would have the same color code distribution.
Leads length must be left to the minimum available, i.e., 0.5 or 1 meter is adequate.
6.6 10/100 ETHERNET CONNECTION
Use this RJ-45 connection port to connect to an 10/100 Base-T Ethernet networks. Computers
connected to the LAN must run the Altair 3cMAP software included. The software runs on Windows
(TM) and offers control over all the MAP hardware features, DSP algorithms, remote controls,
firmware update and more.
Alternatively the MAP processors can be controlled wirelessly by running the Altair 3cMAP for android
(TM) machines logged to the above LAN through a WIFI access point.
