Product description

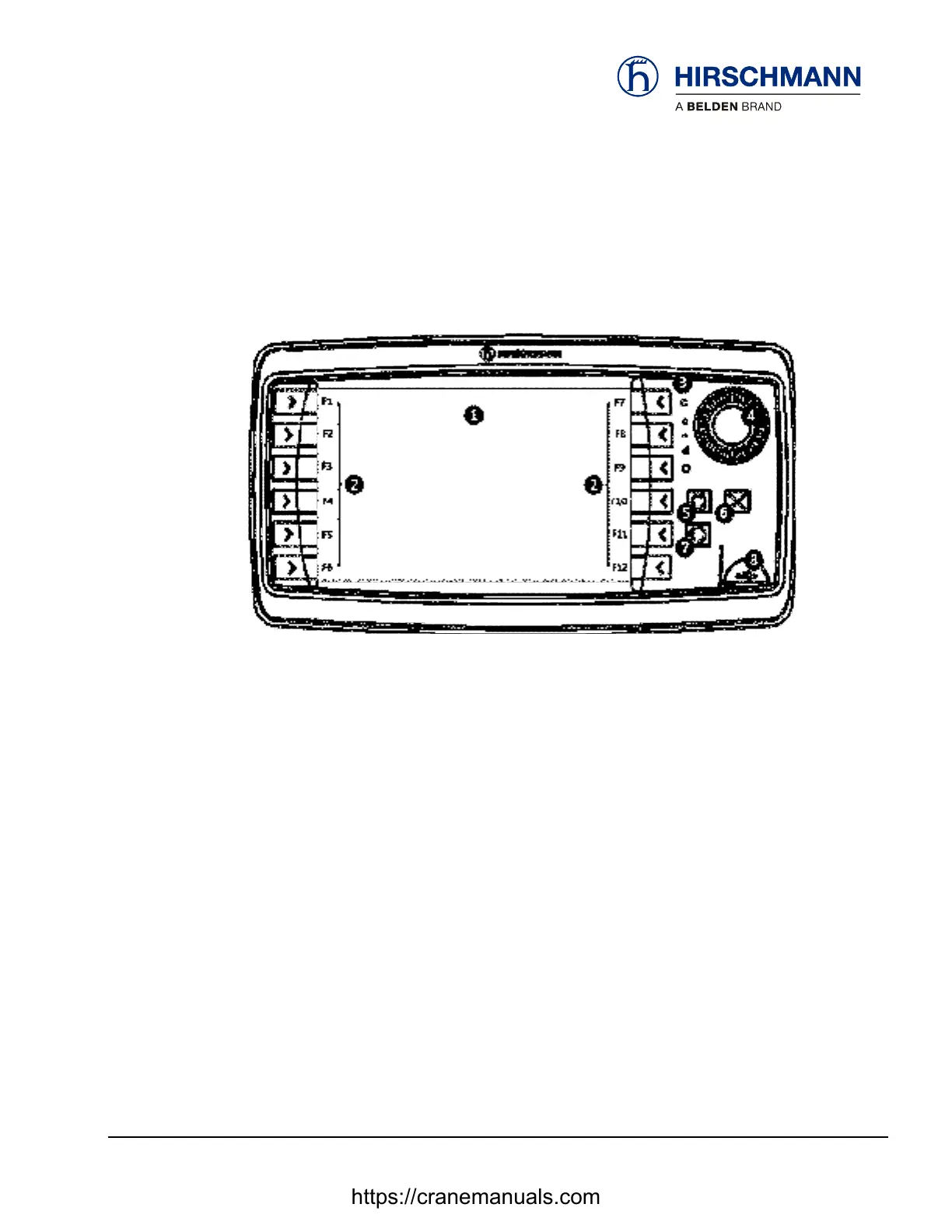

2.3 Overview of functional elements
1 TFTcolor display
2 Function keys F1 - F12
3 Light sensor and status displays (LED)
4 Rotary control (encoder) with pushbutton function
5 SETkey for silencing alarms and setting system settings
6 HOME key for return to LMAP main menu
7 ESCAPE key for returningto previous menus or previous setups.
8 Front- USB 2.0 interface (use for service purposes)
