Section 6 — Operation • 55

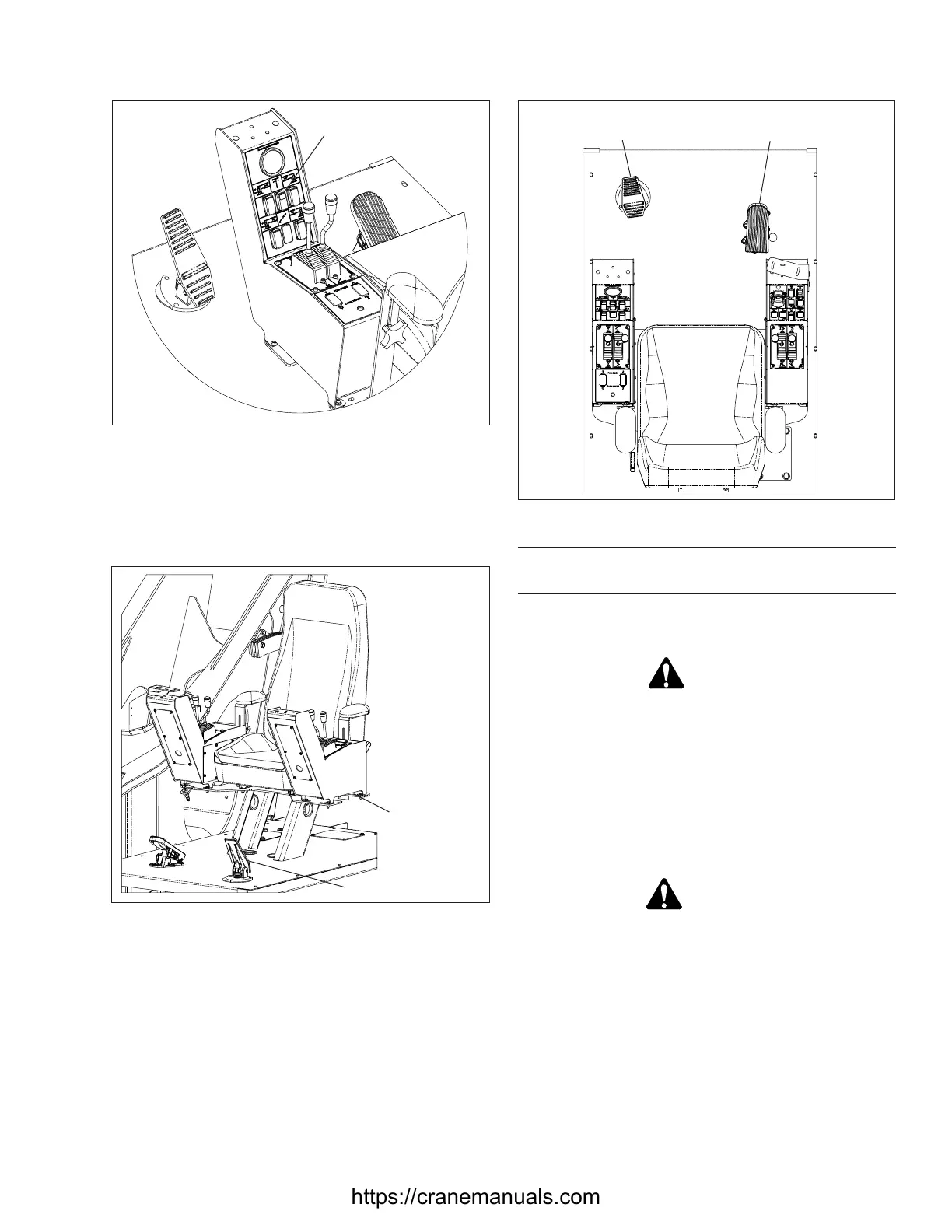

Figure 6.14 — Left Hand Control Pod
A glide swing out of seat horn (refer to Figure 6.15) will
sound if the operator is not on the seat when the glide
swing is in the On mode. Never leave the operator’s
control station without deactivating the glide swing.
Figure 6.15 — Warning Horn Location
The glide swing hydraulic brake pedal (refer to Figure
6.16) is located on the left side of the operator’s control
station oor. The brake pedal is used to slow or stop
rotation motion. Braking is proportional to pedal engage-
ment. When the glide swing is on, but the brake pedal is
not engaged, hydraulic pressure is applied to the brake
release. Engaging the brake pedal actuates a control
valve to apply pressure to the swing brake override
section of the brake. This pressure applies the dynamic
braking required to stop unpowered rotation of the boom
and turntable structure.
Figure 6.16 — Control Station Floor
Other Methods of
Lowering/Stowing the Unit
Use the operator control station controls to lower the plat-
form if the radio remote controls are not operational.
DANGER
Death or serious injury will result from contact with
equipment that has become electrically charged. De-
termine that the unit is not energized before making
contact with the unit.
Death or serious injury will result from contact with
or proximity to equipment that has become electri-
cally energized. Maintain safe clearances from all
energized conductors.
CAUTION
Injury and property damage can result from contact
of the boom or platform with xed objects. Make sure
there is sufcient clearance before operating the unit.
After determining that it is safe to touch the vehicle,
use the operator control station for boom and platform
movement. Then use the controls to carefully lower the
platform to the ground.
Glide Swing
Switch
Out-of-Seat
Warning Horn
Swing Brake Pedal
Swing Brake
Pedal
Foot Throttle
Pedal
