Section 6 — Operation • 51
10. Complete additional testing according to whether the
unit will be used in compliance to only ASME B30.23
or ANSI A92.2 standards (refer to the serial number
placard on the unit).
a. In accordance with ASME B30.23, at each new
job site, prior to hoisting people in the personnel
platform, the platform and rigging must be proof
tested to 125 percent of the platform’s capacity
rating. Perform a trial lift prior to hoisting personnel
with at least the weight expected during the actual
lift. An optional platform test weight is available to
facilitate these requirements.
b. For units equipped with the optional ANSI A92.2
compliance package, cycle each boom function
through its complete range of motion and verify
operation of emergency controls. The 125 percent
proof test lift is not required.
NOTICE
The platform must be removed from the boom and
securely fastened to the deck while the unit is in transit.
Lanyard Anchor
The lanyard anchor (refer to Figure 6.9), is part of the
personal fall protection system. The operator’s harness
and lanyard must be properly attached to the anchor.

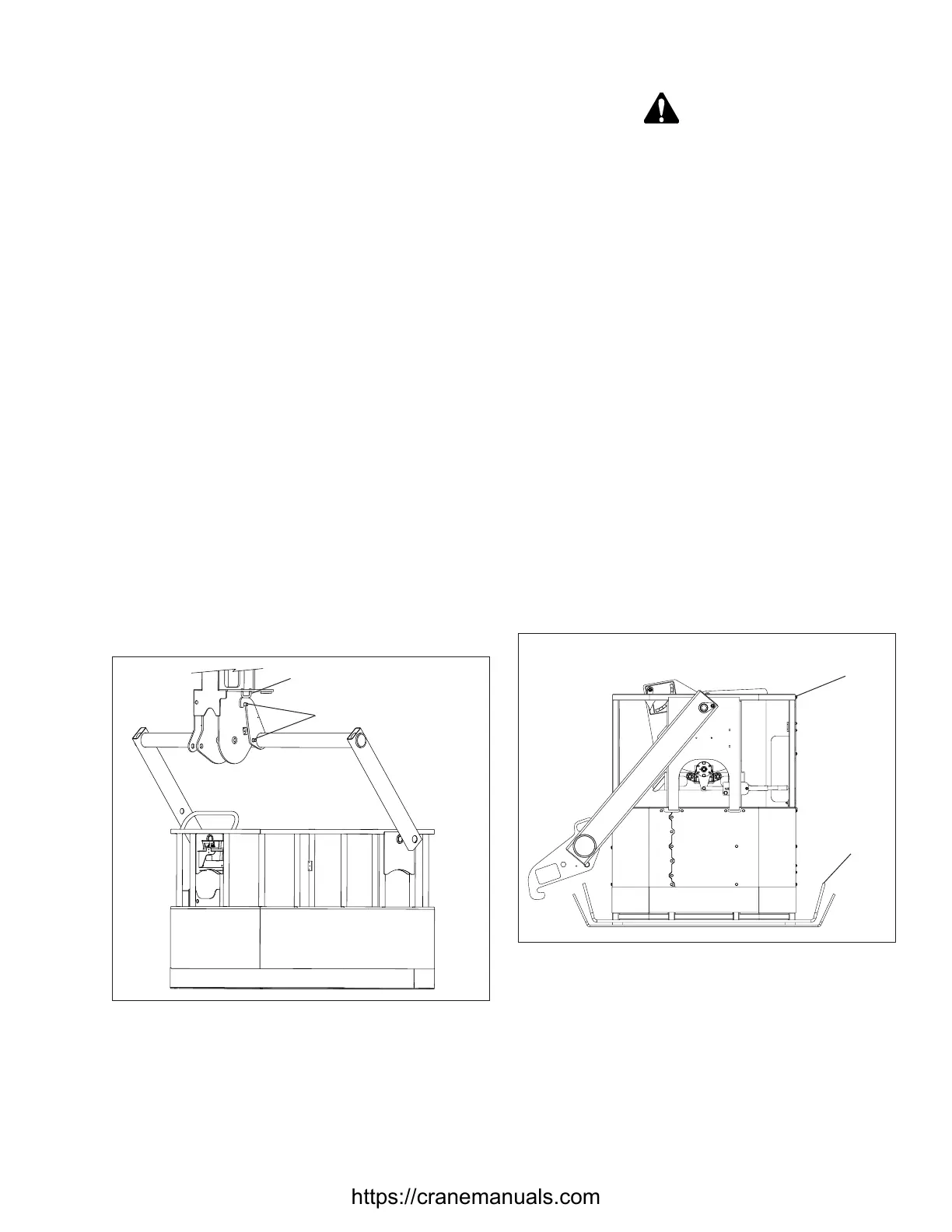

Figure 6.9 — Personnel Platform
Platform Brake
A caliper brake is used to lock the platform into a level
position. Lift the brake release lever to release the brake.
When the platform is in its working position, push the
brake lever back down to lock the brake.
WARNING
Death or serious injury can result from falling from
the platform. Secure the platform brake after arriving
at the work position.
Death or serious injury can result from uncontrolled
movement. Do not leave the platform with the hanger
positioned or elevated above the platform when the
platform is not attached to the boom tip or release
the platform brake lever without rmly supporting
the platform hanger.
Platform Test Weight
The personnel platform is available with an optional
platform test weight package for the purposes of testing
compliance with applicable portions of ASME B30.23
(Personnel Lifting Systems). A trial lift shall be completed
with at least the weight expected during the actual lift and
a proof load test lift shall be completed with a minimum of
125 percent of the platform capacity. It is the responsibility
of the operator to comply with all testing requirements
governing his or her work practice.
The platform test weight is designed to be stored un-
derneath the personnel platform on the deck of the unit
while it is in transit between job sites. Figure 6.10 shows
the platform in its travel position.
Figure 6.10 — Personnel Platform
and Test Weight Positioned for Road Travel
Before performing a test lift, inspect slings, shackles,
and other mounting hardware for damage. Replace any
faulty components with genuine Altec replacement parts
prior to performing a test lift.
To perform the lift, the test weight is attached to the boom
or jib mounted platform by the slings and shackles provided
with the test weight (refer to Figure 6.11). Lifting the load
Lanyard Attachment Ring
Mounting Pins
Test
Weight
Personnel
Platform
