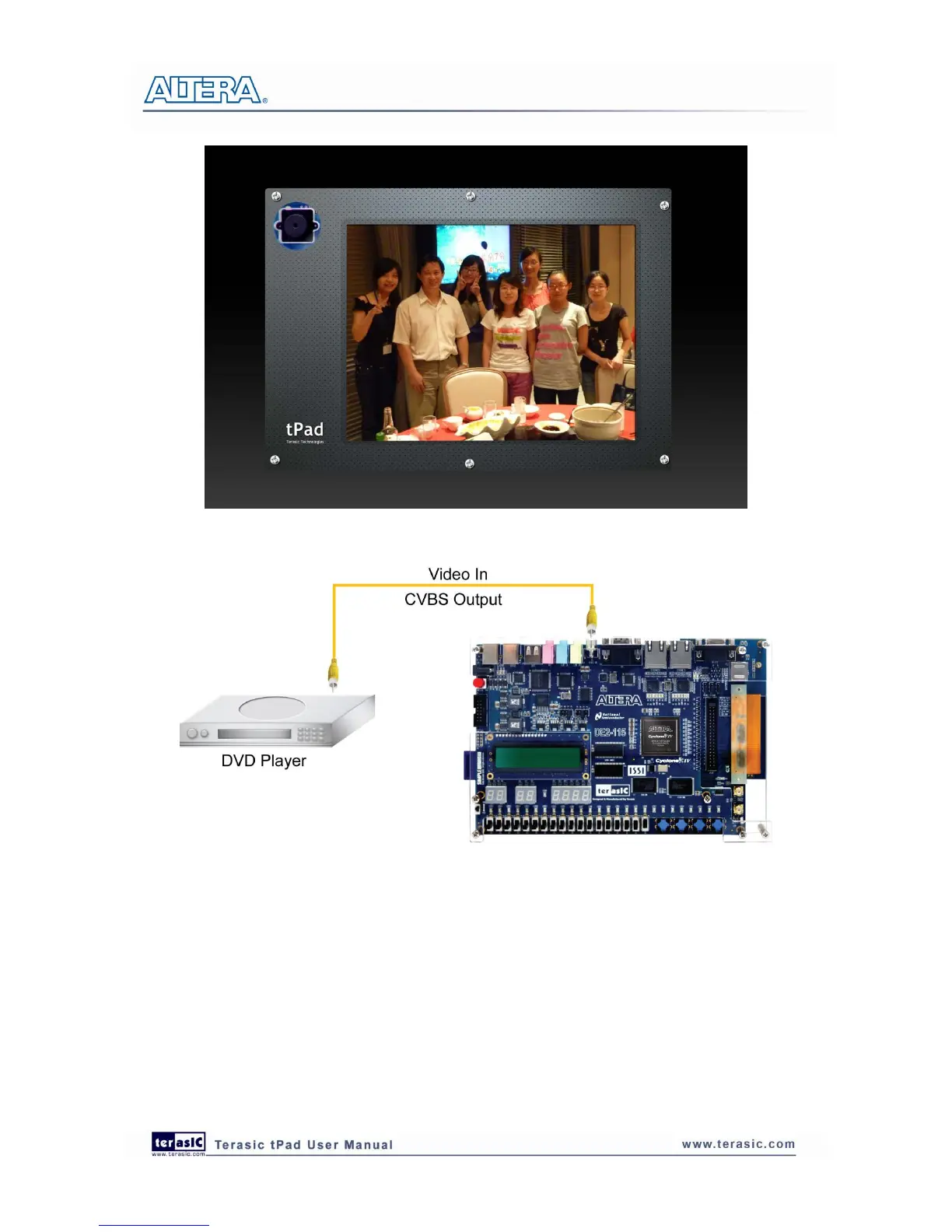

Figure 4-10 The VIP demonstration running result
Figure 4-11 Setup for the tPad_VIP demonstration
4
4
.
.
6
6
t
t
P
P
a
a
d
d
C
C
a
a
m
m
e
e
r
r
a
a
A
A
p
p
p
p
l
l
i
i
c
c
a
a
t
t
i
i
o
o
n
n
This demonstration shows a digital camera reference design using the 5-Megapixel CMOS sensor
and 8-inch LCD modules on the tPad. The CMOS sensor module sends the raw image data to FPGA
on DE2-115 Board, the FPGA on the board is handling image processing part and converts the data
to RGB format to display on the LCD module. The I2C Sensor Configuration module is used to
configure the CMOS sensor module. Figure 4-12 shows the block diagram of the demonstration.
