#436 - 1/08 D U E T O O N G O I N G P R O D U C T I M P R O V E M E N T, S P E C I F I C AT I O N S A R E S U B J E C T T O C H A N G E W I T H O U T N O T I C E . www.alto-shaam.com
E L E C T R I C C O M B I N AT I O N OV E N / S T E A M E R 7

14ESi
C A PA C I T Y
FULL-SIZE PANS: 20" x 12" x 2-1/2" Fourteen (14) Twelve (12)
GN 1/1: 530 x 325 x 65mm Fourteen (14) Twelve (12)
GN 2/1: 650 x 530 x 65mm Seven (7) Five (5)
FULL-SIZE SHEET PANS:* 18" x 26" x 1" Seven (7) Six (6)
ON WIRE SHELVES ONLY
168 lb (76 kg) MAXIMUM
VOLUME MAXIMUM
: 105 QUARTS (133 LITERS)
W E I G H T
NET 405 lb EST. (184 kg) EST.
SHIP 542 lb EST. (246 kg) EST.
CRATE 42" X 50" X 46" EST.
DIMENSIONS: (1067 x 1270 x 1168mm)
E L E C T R I C A L 7 • 1 4 E S i 7 • 1 4 E S i / s k
VOLTAGE PHASE CYCLE/HZ AWG AMPS kW AMPS kW
at 208 1* 50/60 2 Wire plus ground 67.0 13.9 69.2 14.4
at 240 AWG 3 77.0 18.4 79.0 18.9
at 208 3 50/60 3 Wire plus ground 38.6/ph 13.9 40.0/ph 14.4
at 240 AWG 6 44.3/ph 18.4 45.5/ph 18.9
at 380 3 50/60 4 Wire plus ground 21.1/ph 13.9 22.0/ph 14.4
at 415 AWG 10 25.6/ph 18.4 26.3/ph 18.9
at 440 3* 50/60 3 Wire plus ground 20.0/ph 15.4 21.0/ph 15.9
at 480 AWG 8 22.0/ph 18.4 23.0/ph 18.9
* ELECTRICAL SERVICE CHARGE APPLIES
20 8- 240
20 8- 240
38 0- 415
44 0- 480

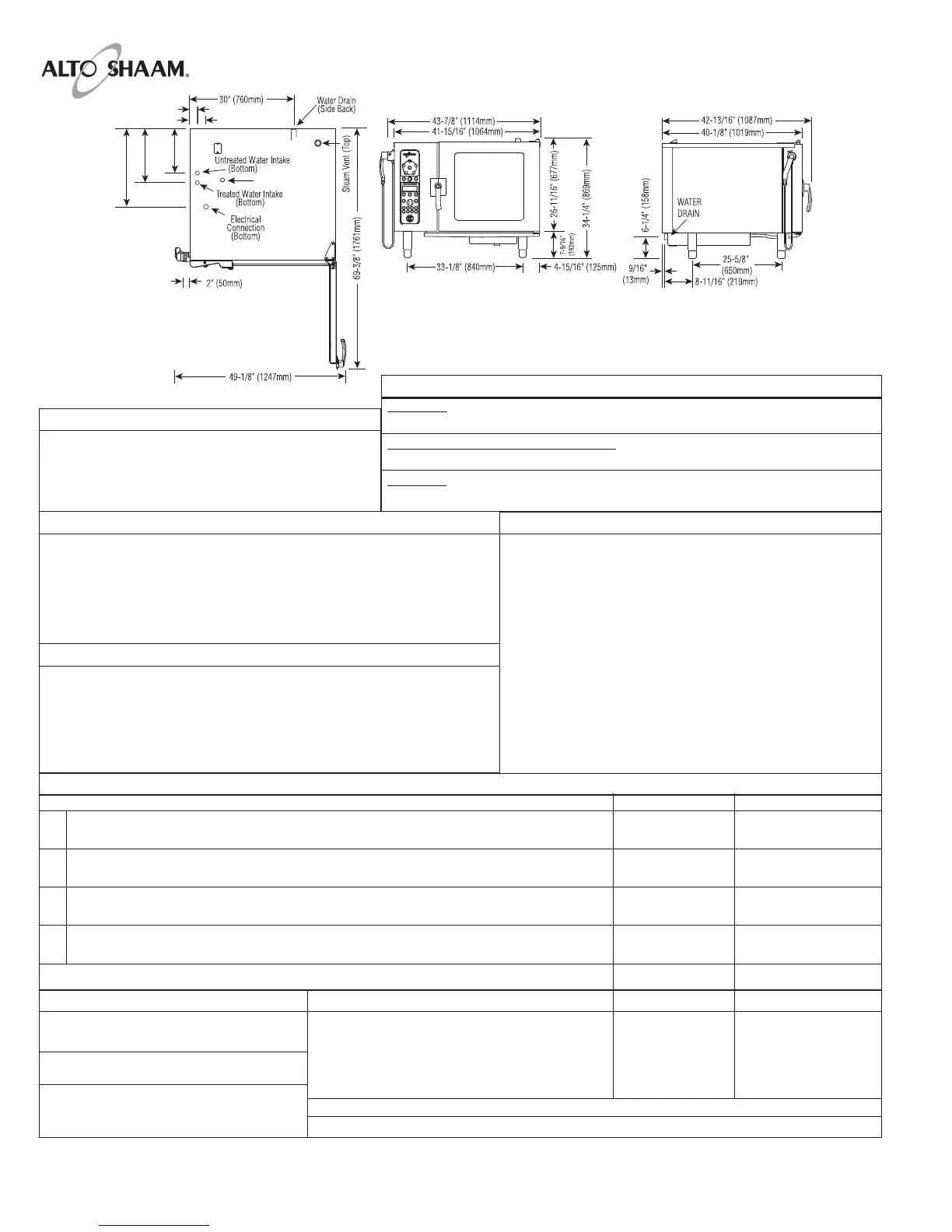

TOP VIEW
FRONT VIEW SIDE VIEW
Helvetica
Light Condensed
8 pt
Low Pressure Valve
12-3/4"
(323mm)
15-1/2"
(393mm)
22-3/8" (568mm)
4
-11/16" (120mm)
2-5/16" (58mm)
D I M E N S I O N S : H x W x D
EXTERIOR:
34-1/4" x 43-7/8" x 42-13/16" (869mm x 1114mm x 1087mm)
EXTERIOR WITH RETRACTABLE DOOR:
34-1/4" x 47-7/8" x 42-13/16" (869mm x 1216mm x 1087mm)
I
NTERIOR
:
20-5/16" x 23-1/2" x 28-7/16" (515mm x 596mm x 722mm)
*ADDITIONAL WIRE SHELVES REQUIRED FOR MAXIMUM CAPACITY
I N S TA L L AT I O N R E Q U I R E M E N T S
Oven must be installed level.
Hood installation is required.
Water supply shut-off valve and back-flow
preventer.
C L E A R A N C E R E Q U I R E M E N T S
LEF T: 6" (152mm) PLUS SERVICE ACCESS: 18" (457mm) RECOMMENDED
20" (508mm) F R O M H E AT P R O D U C I N G E Q U I P M E N T
RIG HT
: 4" (102mm) T OP: 20" (508mm) FOR AIR MOVEMENT
BAC K
: 4" (102mm) BOTTO M: 5-1/8" (130mm) FOR LEGS
COUNTER
-TOP INSTALLATIONS MUST MAINTAIN 4" (102mm) MINIMUM
CLEARANCE FROM COUNTER SURFACE
.
WAT E R R E Q U I R E M E N T S
TWO (2) COLD WATER INLETS - DRINKING QUALITY
ONE (1) TREATED WATER INLET: 3/4" NPT
ONE (1) UNTREATED WATER INLET: 3/4" NPT
LINE PRESSURE: 30 to 90 psi
2.8 to 6.2 bar
WATER DRAIN: 1-1/2"
FERNCO CONNECTION WITH AIR GAP
WAT E R Q U A L I T Y M I N I M U M S TA N D A R D S
USING A WATER SUPPLY NOT MEETING ALTO-SHAAM'S
MINIMUM WATER QUALITY STANDARDS WILL VOID THIS
WARRANTY. It is the responsibility of the purchaser to ensure
that incoming water supply is compliant with the specifications
listed through adequate treatment measures. Installation of the
CombiGuard™ Water Filtration System is recommended, but this
system may not address all water quality issues present.
Contaminant Inlet Water Requirements
(untreated water)
Free Chlorine Less than 0.1 ppm (mg/L)
Hardness Less than 3 gpg (52 ppm)
Chloride Less than 30 ppm (mg/L)
pH 7.0 to 8.5
Alkalinity Less than 50 ppm (mg/L)
Silica Less than 12 ppm (mg/L)
Total Dissolved
Solids (tds) Less than 60 ppm
