Alto-Shaam HALO HEAT ECOSMART 500-1D

MN-29742 (Rev. 6) 02/16 • Drawer Warmers • 18

12
12
6
4
1
2
8
3
10
4
5
9a
3
1
7a
2
6
10
9
5
11
7
12
12
6
4
1
2
8
3
10
4
5
9a
3
1
7a
2
6
10
9
5
11
7

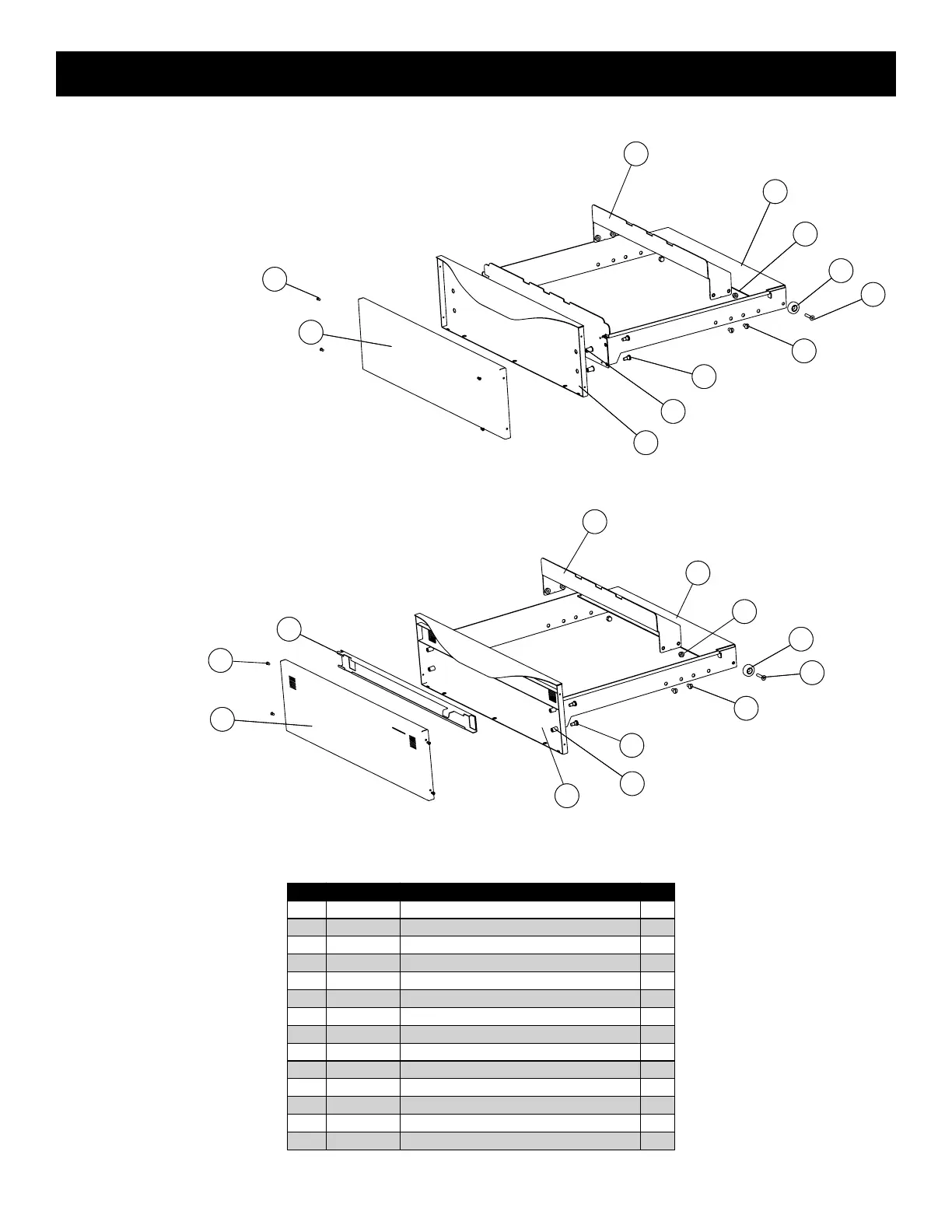

Item Part Description Qty
1 5017810 DRAWER FRAME SPOT 1
2 5013916 PAN SUPPORT 1
3 BG-24890 BEARING, ROLLER 1
4 SC-25018 SCREW, 1/4-20 x 1-1/8" FLAT HD 2
5 ST-2546 STUD, SHOULDER, SHORT, S/S 4
6 ST-25019 STUD, S/S PIVOT 4
7 5013917 DRAWER INNER W/HANDLE 1
7a 5014558 VENTED DRAWER FRONT SPOT 1
8 1019159 VENT SLIDE 1
9 16467 DRAWER, OUTER 1
9a 1012899 VENTED DRAWER, OUTER 1
10 RI-2100 RIVET, BLIND, #44, S/S 4
11 NU-36239 NUT, INSERT, THREADED, 1/4-20 4
12 NU-2187 NUT, 1/4-20, NC ACORN #18-8, S/S 2
1111

500-D
Part numbers and drawings are subject to change without notice.
Vented Drawer
Non-Vented Drawer
12
12
6
4
1
2
8
3
10
4
5
9a
3
1
7a
2
6
10
9
5
11
7
12
12
6
4
1
2
8
3
10
4
5
9a
3
1
7a
2
6
10
9
5
11
7
Item Part Description Qty
1 5017810 DRAWER FRAME SPOT 1
2 5013916 PAN SUPPORT 1
3 BG-24890 BEARING, ROLLER 1
4 SC-25018 SCREW, 1/4-20 x 1-1/8" FLAT HD 2
5 ST-2546 STUD, SHOULDER, SHORT, S/S 4
6 ST-25019 STUD, S/S PIVOT 4
7 5013917 DRAWER INNER W/HANDLE 1
7a 5014558 VENTED DRAWER FRONT SPOT 1
8 1019159 VENT SLIDE 1
9 16467 DRAWER, OUTER 1
9a 1012899 VENTED DRAWER, OUTER 1
10 RI-2100 RIVET, BLIND, #44, S/S 4
11 NU-36239 NUT, INSERT, THREADED, 1/4-20 4
12 NU-2187 NUT, 1/4-20, NC ACORN #18-8, S/S 2
1111
