MN-29742 (Rev. 6) 02/16 • Drawer Warmers • 21
5
4
1
6
8
3
10
10
8
6
9
7
11
7
11
2
5
4
1
3
2
500-DN
Part numbers and drawings are subject to change without notice.

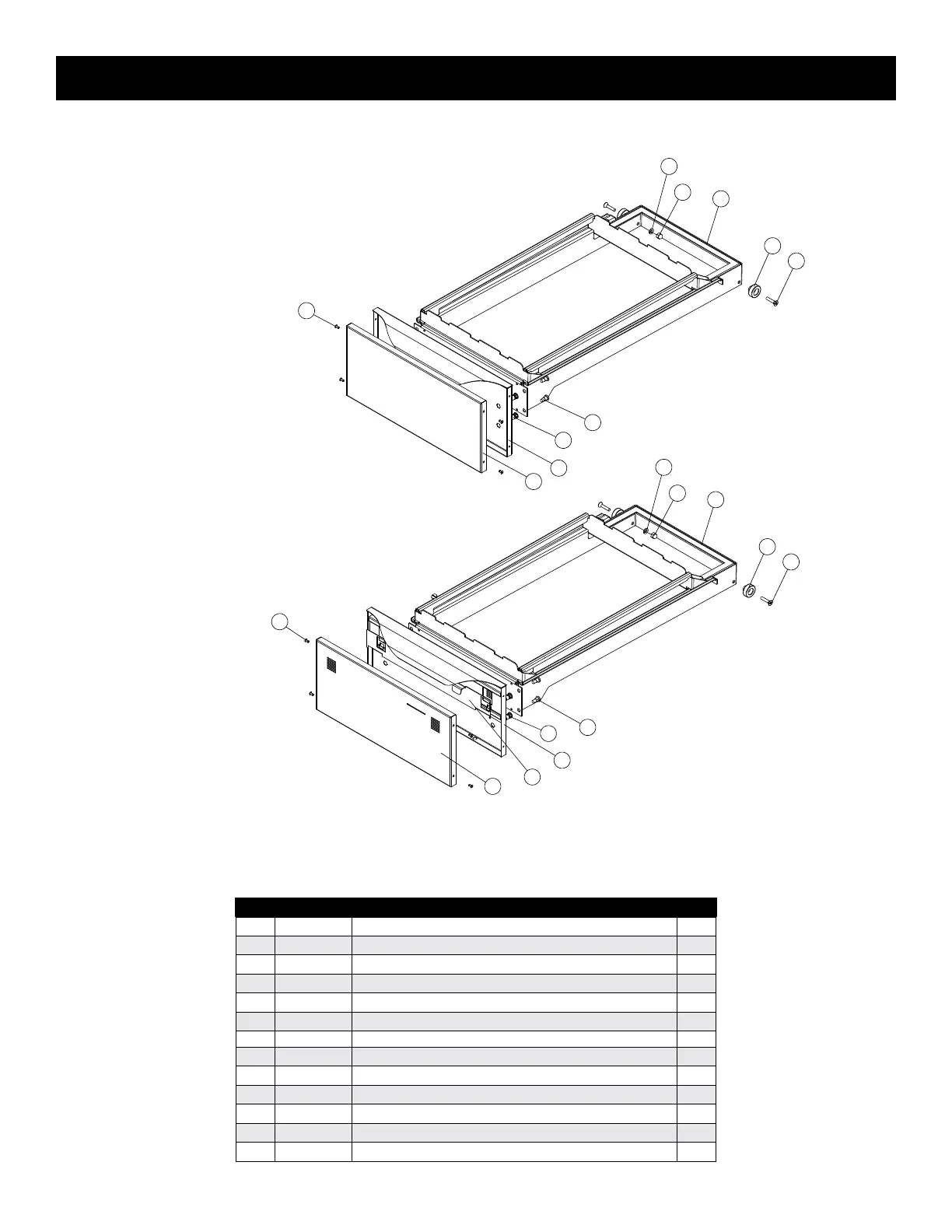

Vented Drawer
Non-Vented Drawer
Item Part Description Qty
1 WS-2294 WASHER, 1/4" LOCK 2
2 NU-2187 NUT, 1/4-20 NC ACORN #18-8 S/S 2
3 5017809 DRAWER FRAME 1
4 BG-24890 BEARING, DRAWER WARMER 2
5 SC-25018 SCREW, 1/4-20 x 1-1/8" FLAT HD 2
6 ST-25019 STUD, S/S PIVOT 4
7 NU-36239 nut, insert, threADeD, 1/4-20 4
8 5014560 DRAWER FRONT SPOT
non-venteD DrAwer 1
5014439
venteD DrAwer 1
9 1019169 VENT SLIDE 1
10 1012804 OUTER DRAWER non-venteD DrAwer 1
1012901 venteD DrAwer 1
11 RI-2100 RIVET, BLIND, #44, S/S 4
