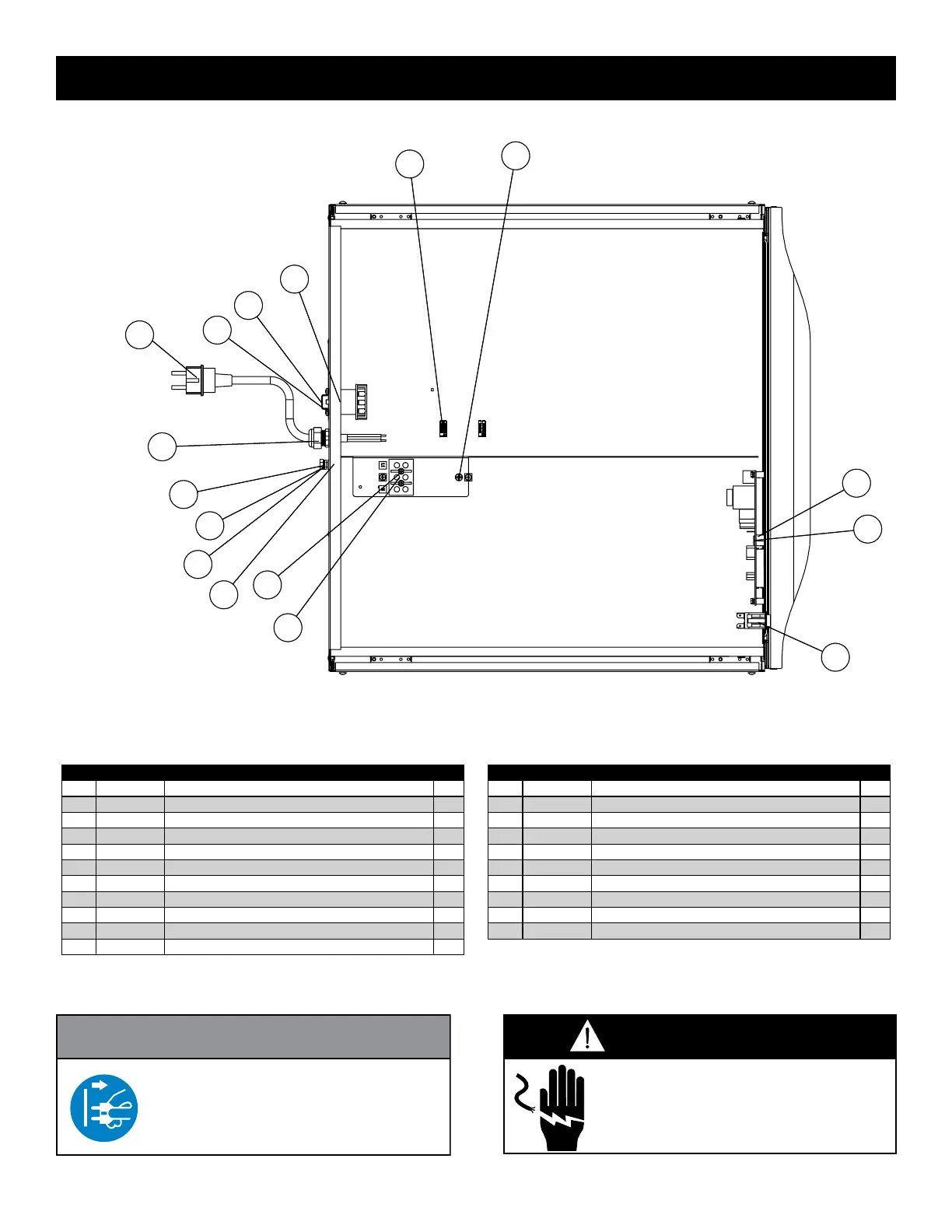

MN-29742 (Rev. 6) 02/16 • Drawer Warmers • 22
13
2
11
8
1
7
5
10
6
14
12
9
3
15
4
16
13
2
11
8
1
7
5
10
6
14
12
9
3
15
4
16
Item Part Description Qty
1 CC-34970 WARMER CONTROL 1
2 CR-34967 CONNECTOR-2 CONDUCTOR 2
3 SW-34769 SWITCH, ROCKER, 125-277V, 20A 1
4 SP-29392 SPACER, SNAP-IN, 7/16 6
5 1003936 HI-LIMIT PROTECTION COVER 1
6 SC-22271 SCREW, M4-0.7 x 6mm PHIL
7 TT-33476 THERMOSTAT, 300F HI-LIMIT 1
8 BK-3019 T-BLOCK 1
9 NU-22770 NUT, THREADED INSERT, M6 1
10 SC-22924 SCREW, HHCS, M6 X 20, W/NO MARKING 1
11 SC-2365 SCREW, 6-32 X 1 1/4" ROUND HD 2
Item Part Description Qty
12 WS-22297 WASHER, FLAT 2
13 SC-36973 SCREW, PAN PH, METRIC, M5 1
14 WS-22302 WASHER, SPLIT LOCK 2
15 BU-3964 BUSHING, STRAIGHT, STRAIN RELIEF 1
16 5015002 NEMA 5-15P CORDSET, 120V 1
5017194 NEMA 6-15P CORDSET, 208-240V 1
5013670 CEE 7/7 CORDSET, 230V 1
5014997 BS 1363 CORDSET, 230V 1
5016998 CH2-16P CORDSET, 230V 1
5020353 AS/NZS 3112 CORDSET, 230V 1
2
Part numbers and drawings are subject to change without notice.
To prevent Serious injury, death,
or property damage, ALWAYS
disconnect unit from power source
before cleaning or servicing.
To prevent SERIOUS INJURY, DEATH,
OR PROPERTY DAMAGE, ALWAYS
lock-out or post breaker panel until
service work has been completed.
