8 MN-38954 • Rev 0 • 04/17 • Quickchillers
Installation
Installation Requirements
Do not tip Quickchiller on its side.
If tipped, Quickchiller must stand in the
upright position for a minimum of 12
hours before operating. Tipping will cause
damage to the chiller and void the warranty
if not le in an upright position for a
minimum of 12 hours before operating.
— Quickchiller must be installed level.
— The Quickchiller must not be installed in any
area whereit may be affected by steam, grease,
dripping water, extreme temperatures, or any
other severely adverse conditions.
In order to maintain standards established by
the National Sanitation Foundation, all counter
mounted Quickchillers must use legs that allow for
a 4" (102mm) clearance between the Quickchiller
and the counter.
Appliance and accessories may be
heavy. To prevent serious injury, always
use a su icient number of trained and
experienced workers when moving or
leveling appliance and handling accessories.
5-Year Limited
Warranty on
self-contained
compressor
Effective from date of
shipment. (excludes labor)
Position the Quickchiller
to allow sufcient air
ventilation through the
condensing unit(s).
Avoid installing the chiller
immediately adjacent
to fryers, charbroilers,
or any other equipment
producing grease laden air;
heat producing equipment
such as ovens and ranges;
and steam discharging
equipment such as steamer
ovens and kettles. Do not
install the Quickchiller in direct sunlight.
Allow sufcient front clearance for serviceability and for
easy maneuvering of food trolleys in and out of the cabinet.
Installation

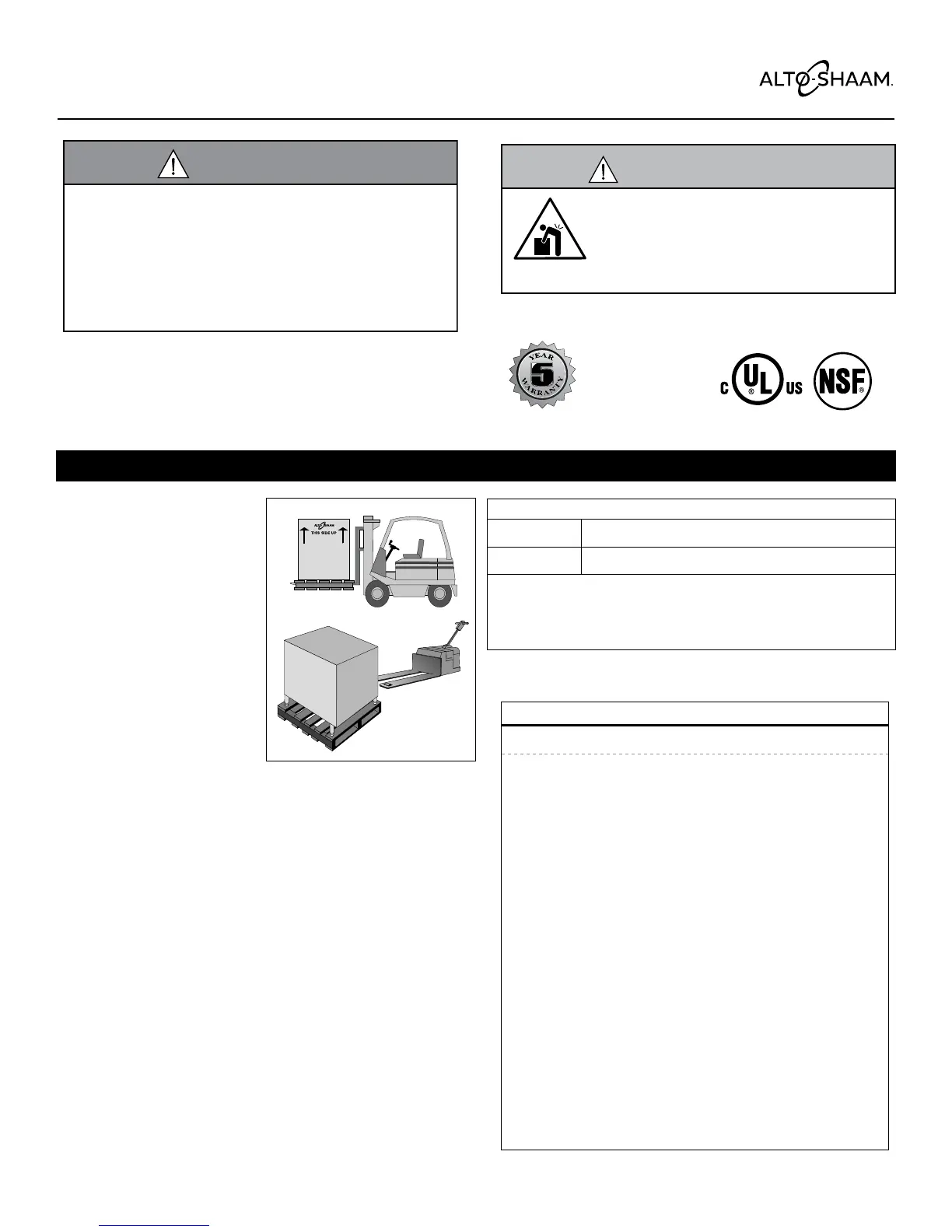

Prior to moving the Quickchiller to the installation site,
check the dimensions of doors, passageways, and ceiling
heights in the areas through which the cabinet must be
moved. Also check the turning radius if the cabinet must be
moved around an existing structure. The use of a fork li
or pallet li truck is required for moving and leveling most
Quickchiller models.
NOTICE: In certain instances, it may be necessary to
remove doors and door hardware to negotiate
tight spaces.
®
Improper installation, alteration, adjustment, service,
cleaning, or maintenance could result in property
damage, severe injury, or death.
Read and understand the installation, operating and
maintenance instructions thoroughly before installing,
servicing, or operating this equipment.
SITE INSTALLATION
Clearance Requirements
Top 0" (0mm)
Each Side 1" (25mm)
18" (457mm) minimum
from heat producing equipment
