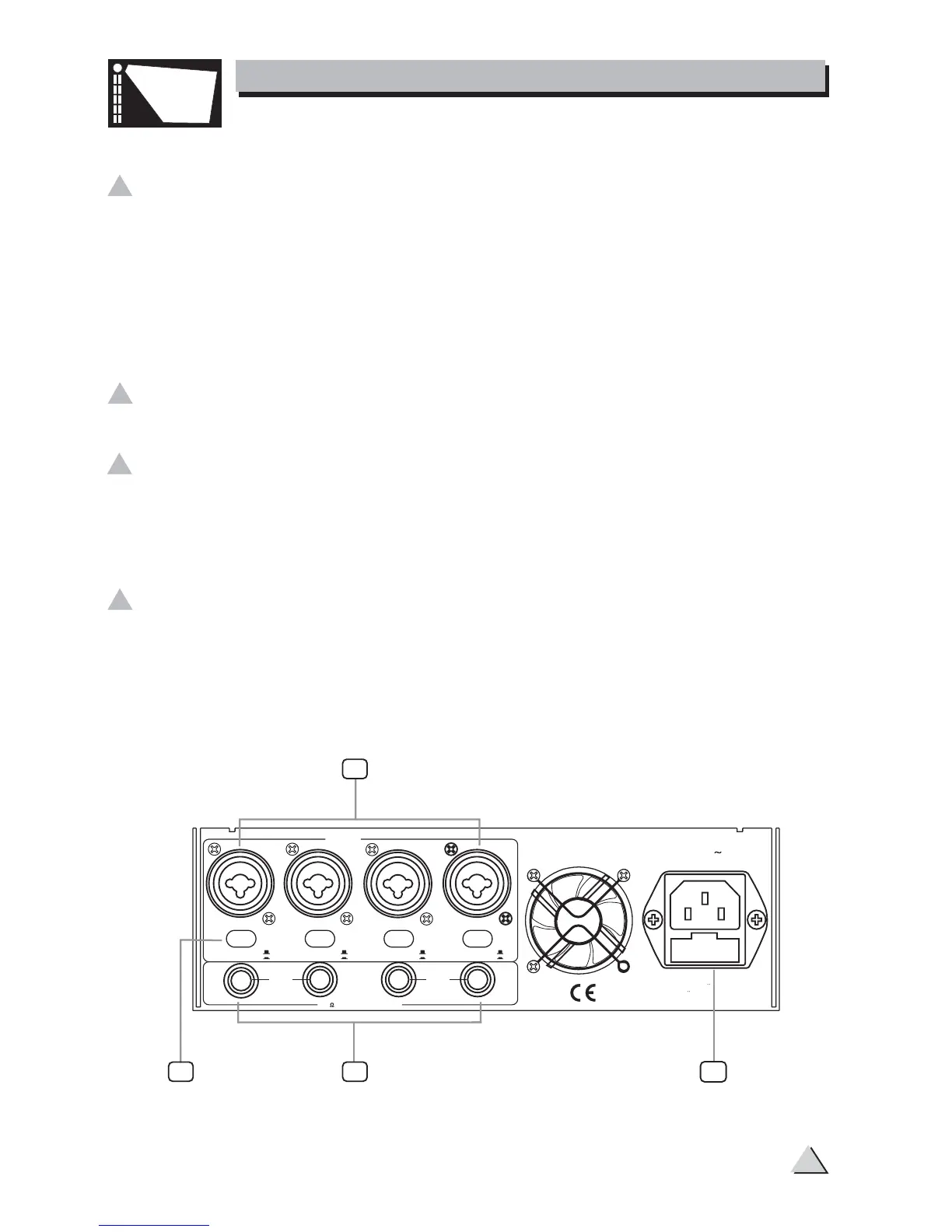

Rear Panel:
7 Input sockets
These sockets accept the balanced signal from XLR and 1/4" connectors as
well. These Inputs are compatible with low-impedance, unbalanced/balanced,
line-level outputs emanating from such as mixers, synthesizers, drum
machines, direct boxes, crossovers, etc. Electric guitars, microphones,
and other low level/high-impedance output devices require a pre-amp or a
D/I box. The input circuits of your A400.4 are electronically balanced.
You can connect either symmetrical ("balanced") or unbalanced sources.
3. CONTROL ELEMENTS
SPOTLIGHT
9 LIMITER Switch
The Limiter circuit will prevent the waveforms to be flattered thus preserving
a proper dynamic range and secure signal reproduction that is distortion-
free. The Limiter status can be monitored from the limit led on the front
panel of your A400.4.
8 Output Sockets
Use these 1/4" TRS jacks to connect your speakers.
10 AC Input
5
Standard IEC receptacle. Connect your A400.4 an AC socket with the supplied
power cord. Before powering up your A400.4 for the first time, make certain
the stated power requirement of the unit matches the voltage supplied by
the AC socket.
If the fuse blows, replaced with a fuse of the correct type only.
