Alto Elvis Series User Manual

8

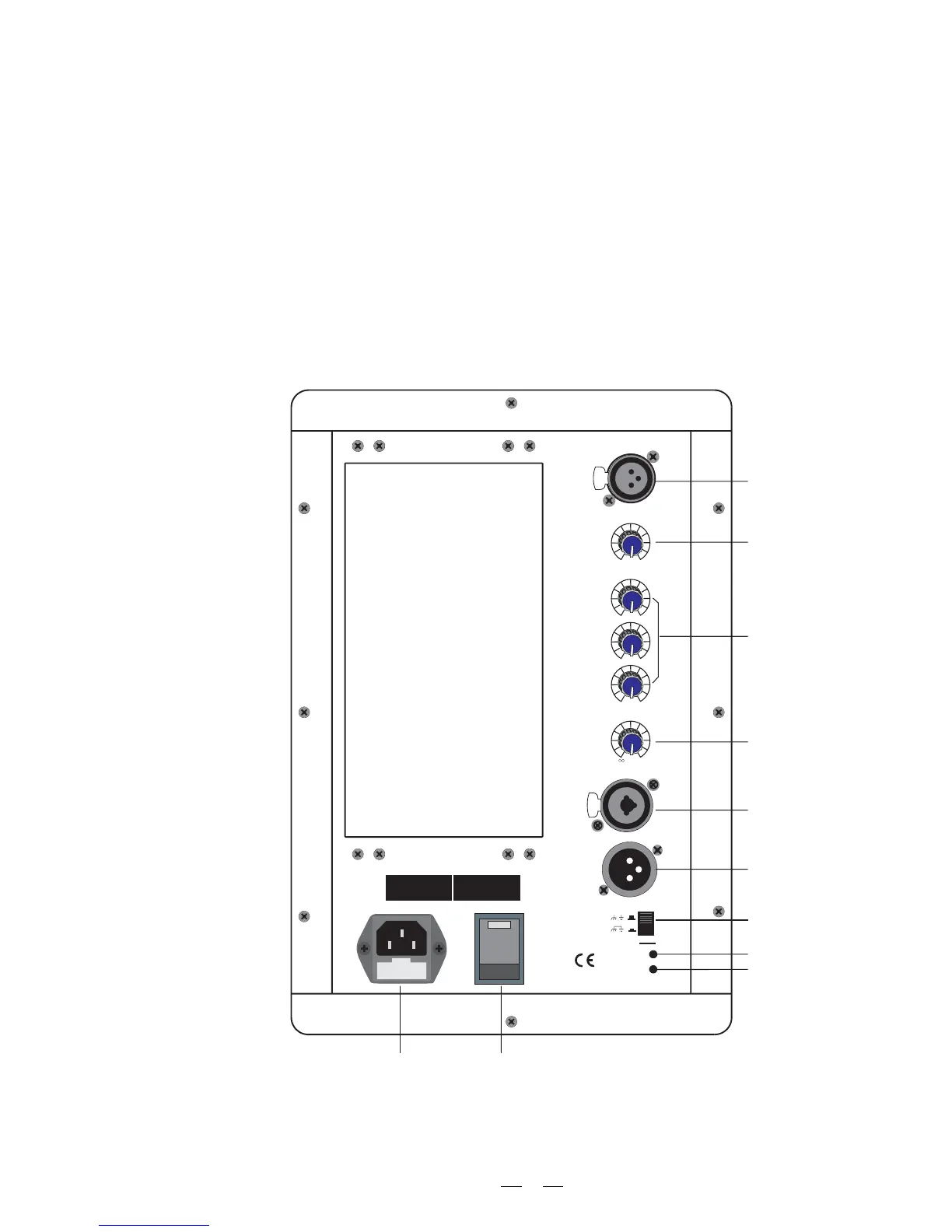

-. ACTIVE FULL- RANGE Speaker for ELVIS10A / ELVIS12A / ELVIS15A / ELVIS12MA
(1) Bi-polar main power switch.
(2) Input AC power socket with main fuse.
(3) Ground Swicth.
(4) POWER, blue LED, indicate ON status.
(5) SIGN / COMP, signal/compressor, green/red LED
(6) LINE OUT at + 4dB on XLR connector
(7) LINE IN at + 4dB on COMBO connector.
(8) VOLUME main power amplifier control.
(9) LOW / MID / HIGH, EQ tone control at +/- 6dB.
(10) GAIN control for microphone -10/- 45dB.
(11) MIC IN on balanced XLR, for microphone.
(1)(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
MIC IN
LINE-IN
ON
OFF
AC INPUT: 230V~ 50Hz
GND
POWER
MIC GAIN
-10dB -45dB
VOLUME
+4dBu
-
LOW
HIGH
-6dB +6dB
MIDDLE
-6dB +6dB
-6dB +6dB
SIGN
COMP
SERIAL
MODEL
LINE-OUT
PUSH
2
1
3
NEW
TIDE
Use only with a 250V fuse
PUSH
1
3
2
NEW
TIDE
