10
9
10
11
12
13
CHANNEL INSERT
(P -FADER/PRE-EQ TIP SEND/RING RETURN)RE
CH4 CH3 CH2 CH1
9

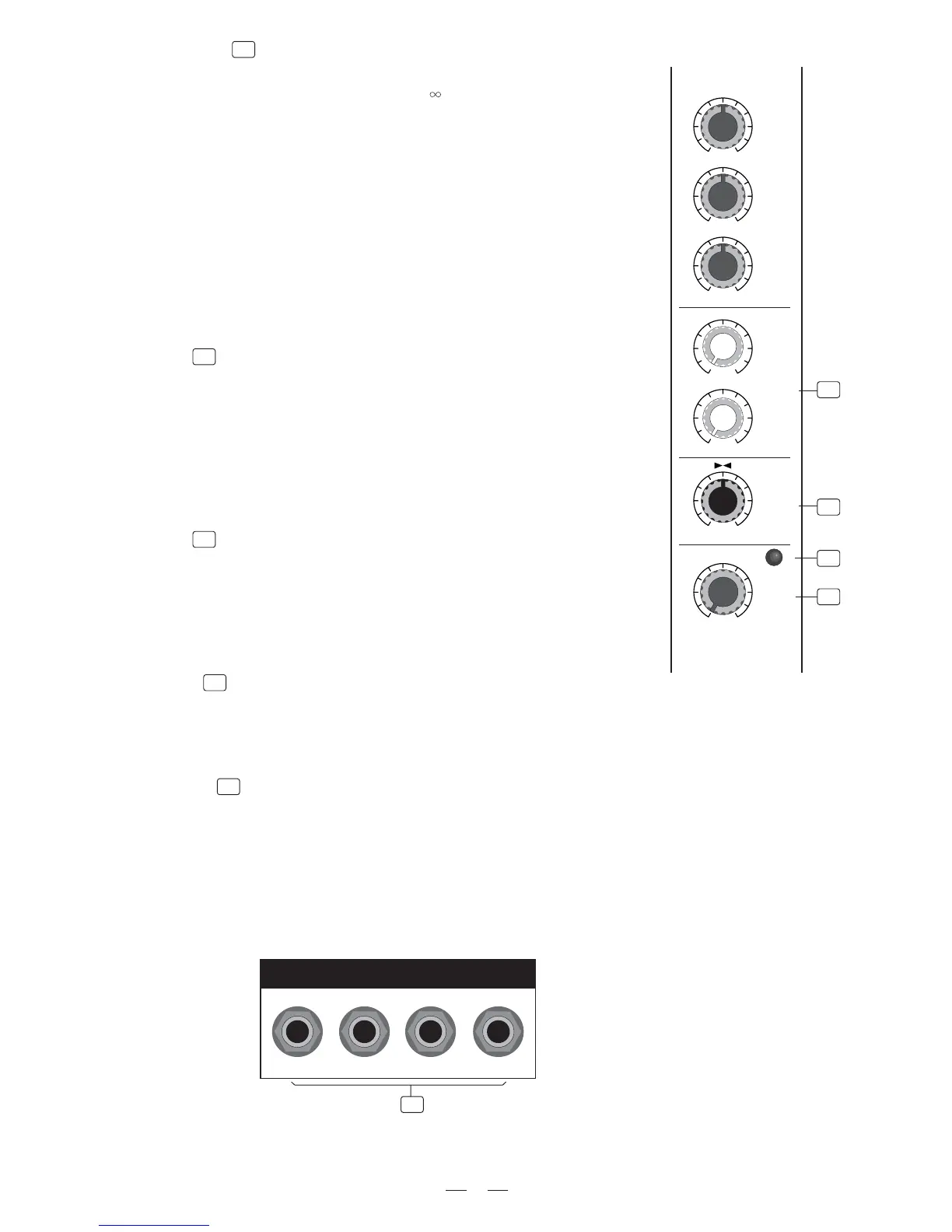

4.6 AUX SEND
These two controls are used to adjust the level of the signal sent to AUX
buses, and their adjustable range goes from - to +15dB.
AUX1 is configured as PRE-FADER, so, generally, it can be used for
monitor application.
While AUX2 is configured as POST-FADER, therefore, most of the times,
it will be used for effects and processors input, however, you can also
changed it to PRE-FADER configuration according to the specific appli-
cation. (For more detail, please see chapter 6.)
In this typical compact unit, excluding sending out directly to the external
effect or processor equipment, AUX SEND2 will also be sent to the
internal onboard effect module.
10
4.7 PAN
This is the PANORAMA control, or balance control. You can adjust
the stereo image of the signal via this Control. Keep this control in
center position and your signal will be positioned in the middle of
stage. Turn this control fully counterclockwise and the signal will be
present only on the left speaker and vice-versa. Of course a wide
number of intermediate positions is available.
11
4.8 PEAK
Inside your L-8 the audio signal is monitored in several different stages
and then sent to the PEAK Led. When this Led blinks, it warns you
that you are reaching signal saturation and possible distortion. The
PEAK Led will blink with a level that is 6dB before actual clipping.
12
4.9 LEVEL
This Control will adjust the overall level of this channel and set the
amount of signal sent to the Main output.
13
4.10 INSERT
Insert points are provided for the Mono Mic Channels. When you
insert a jack in the insert socket, the signal will be taken out after the
Input Gain Control (Trim), sent to an external processor such a com-
pressor-limiter, and returned into the channel strip immediately before
the EQ section. Of course, the jacks used must be stereo (Tip Send/
Ring Return).
+15+15-15-15
80Hz
LOW
0
+15+15-15-15
0
EQ
HI
12kHz
+12-12
0
2.5kHz
(PRE)
POST
AUX
0
0
-+15
8
-+15
8
1
2
/
D
F
X
PAN
RIGHT
LEFT
0
-+15
8
PEAK
LEVEL
MID
PRE
