12
22
This socket will send out the mix signal to a pair of
headphones.
27
- PHONES
14. REVERB + DELAY
16. REVERB + CHORUS
15. FLANGERREVERB +
5. LARGE ROOM
13. CHORUS
12. FLANGER
11. STEREO DELAY
10. MONO DELAY
9. SPRING REVERB
8. TAPE REVERB
7. PLATE
6. SMALL ROOM
4. SMALL HALL
3. LARGE HALL
2. VOCAL 2
1. VOCAL 1
DFX MUTE
PRESETS
10
8
9
1
12
11
7
4
5
6
3
2
13
14
15
16
10
8
9
1
12
11
7
4
5
6
3
2
13
14
15
16
VARIATIONS
PEAK
- 24 BIT DIGITAL EFFECTS

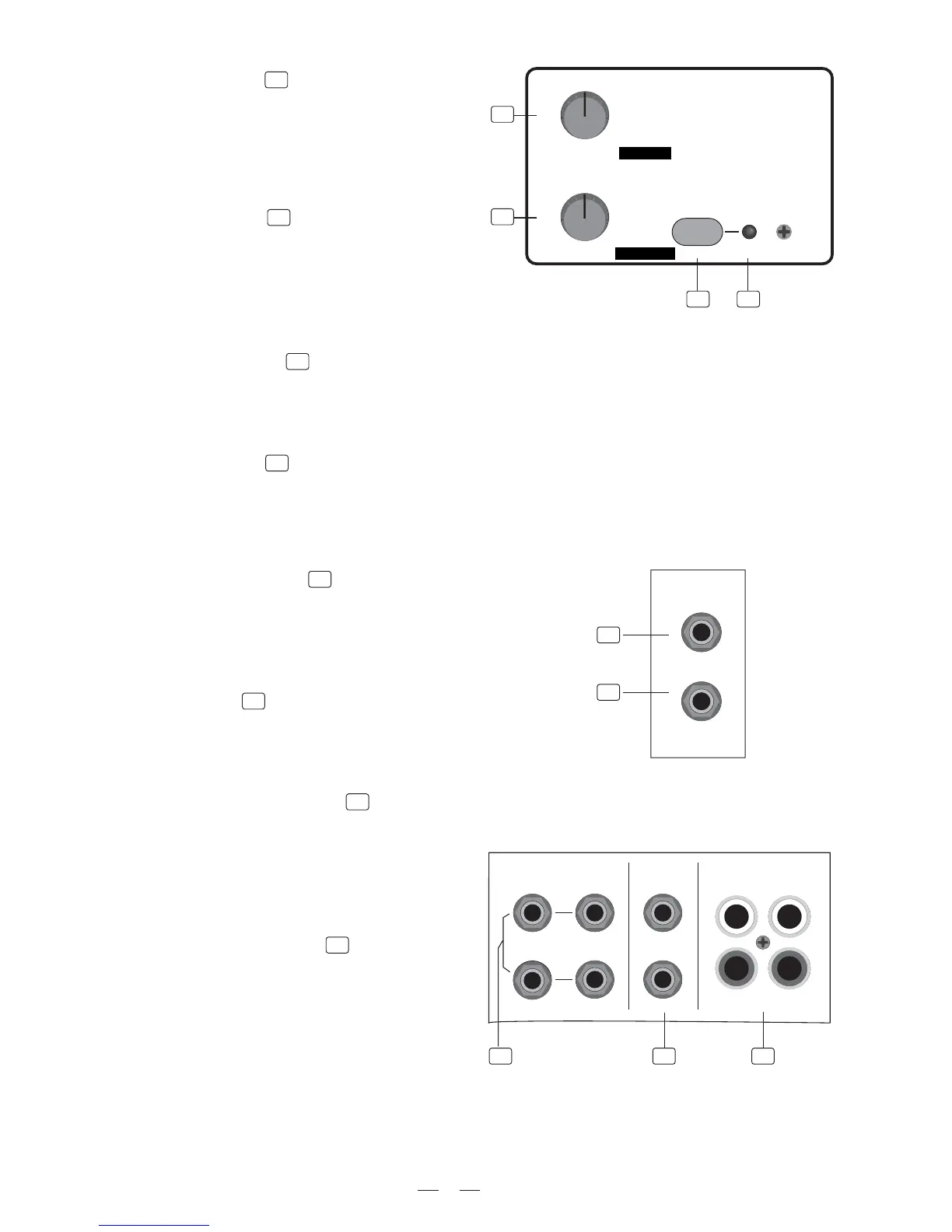

Adjust this knob to select the right effect you wish
to perform. There are total 16 options for you: several
kinds of reverb, mono and stereo delay, effects with
modulation, and versatile two-effect combination.
PRESETS
22
23
Since you have selected the preferable effect, the next
step, please go with the fine consideration, there are
also total 16 variations for each preset, Each variation
may be managed by several different factors.
VARIATIONS
23
24 25
This switch is used to activate/deactivate the effect facility.
Sometimes, you can also use the DFX FOOTSWITCH for convenient operation.
MUTE SWITCH
24
This LED lights up when the input signal is too strong.
In case of the digital effect module being muted, this LED also lights up.
PEAK LED
25
PHONES
DFX
FOOTSWITCH
- DFX FOOTSWITCH
26
This 1/4" phone jack can be used to connect an
external footswitch to turn on/off the onboard effect
module.
26
27
1
2
STEREO AUX RETURN AUX SEND
2-TRACK IN/OUT
TAPE IN TAPE OUT
LEFT
RIGHT
L
R
1
2
LEFT(MONO)
RIGHT
28
29
30
Use these stereo 1/4" phone socket to return the
sound of an effect unit or sound processor to the
Main Mix. Alternatively you can use them as an
extra auxiliary input.
- STEREO AUX RETURN
28
These 1/4" phone sockets are used to send out the
signal from the AUX Bus to external devices such as
effects and sound processors.
- AUX SEND
29
