Alto TMX 80 DFX User Manual

5

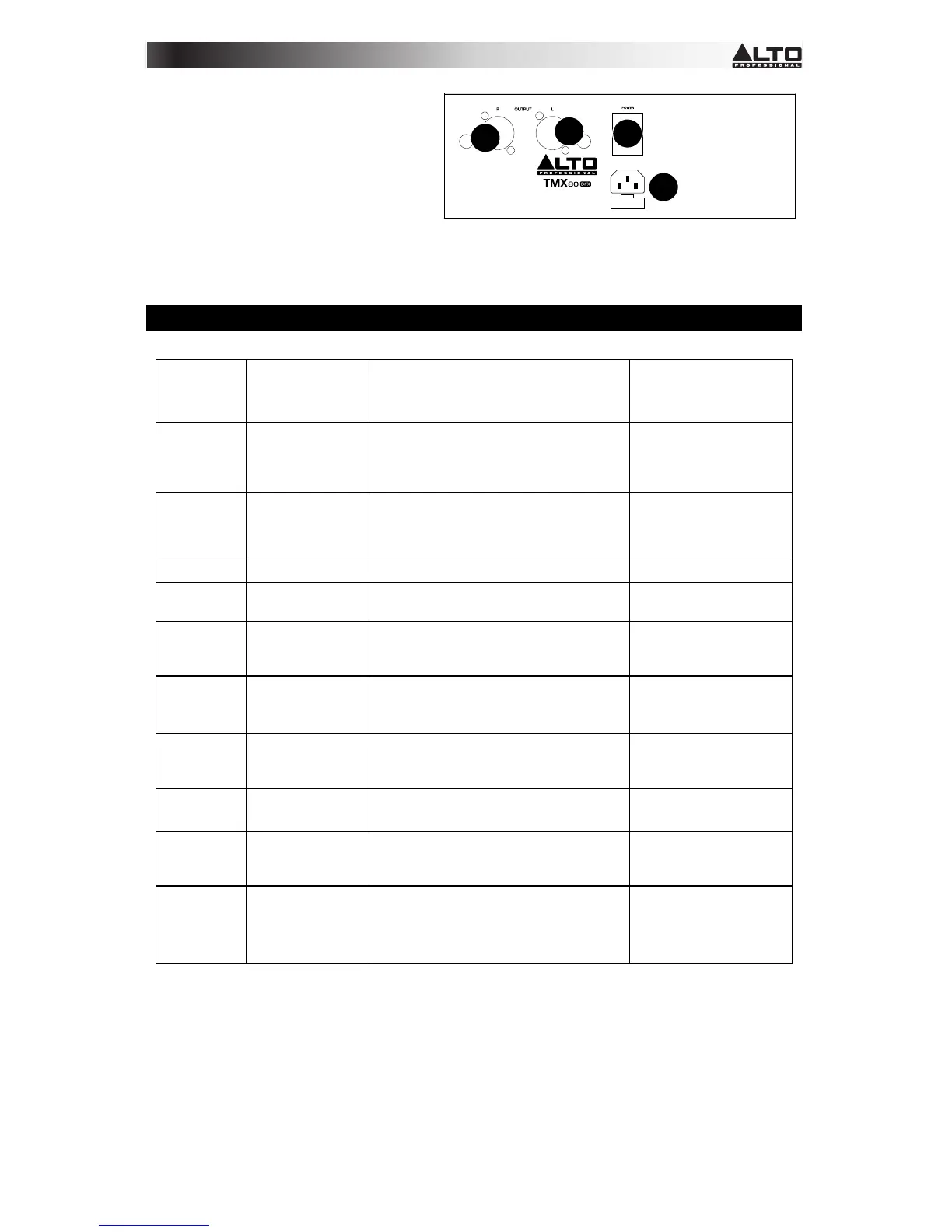

33. POWER SWITCH - Turns the main
power ON and OFF.
34. SPEAKER JACKS - These jacks are
used to connect to speakers.
Note: In order to avoid damage to the
built-in amplifier, please pay attention to
the allowed impedance of the speaker.
Very low load impedances may damage
amplifier. The minimum load impedance
of L and R channels is 4 ohm respectively.
35. AC Input with FUSE Holder - Standard IEC receptacle, connect your unit to mains with the supplied
power cord.Please check the voltage available in your country and how the voltage for your unit is
configured before attempting to connect your unit to the main AC.
EFFECTS PRESET LIST
No.
Preset Description Parameter
00~09 Echo
A delay effect, simulating the reflection of
a sound.
Delay Time :
145~205ms
10~19 Echo+Verb Echo with Room effect.
Delay Time :
208~650ms
Decay time : 1.7~2.1s
20~29 Tremolo Amplitude modulation of the signal. Rate : 0.6 Hz~5 Hz
30~39 Plate
Simulate the transducers sound like
classic bright vocal plate.
Decay time:0.9s~3.6s
40~49 Chorus
Recreate the illusion of more than one
instrument from a single instrument
sound.
Rate : 0.92Hz ~1.72Hz
50~59 Vocal
Simulate a small space with slight decay
time.
Rev. decay time:
0.8~0.9s
Pre-delay: 0~45ms
60~69 Rotary
Simulate the sound effect achieved by
rotating horn speakers and a bass
cylinder.
Modulation depth :
20%~80%
70~79 Small Room Simulate a bright studio room.
Decay time : 0.7~2.1s
Pre-delay : 20~45ms
80~89 Flanger+Verb
Simulate to play with another person
carrying out same the notes on the same
instrument and reverb.
Decay time : 1.5~2.9s
Rate : 0.8Hz ~2.52Hz
90~99 Large Hall
Simulate a large acoustic space of the
sound.
Decay time : 3.6~5.4s
Pre-delay : 23~55ms
34
34
35
33

Alto TMX 80 DFX Specifications

Input Channels

microphone input impedance	3.9 kOhm
frequency response	20 Hz to 22 kHz, +/- 1 dB
signal to noise ratio	115 dB

Power Section

inrush current at initial switch on	6.20 A
continuous power at 4 Ohm	2x350W
continuous power at 8 Ohm	2x180W

Power Supply

voltage	100V~50/60Hz, 110-120V~50/60Hz, 220-240V~50/60Hz
inrush current after initial switch-on	6.20 A
inrush current after power supply interruption	4.02 A

Weight and Dimensions

dimensions	133mm x 322mm x 259mm
dimensions in inches	5.2” x 12.6” x 10.2”
net weight	4.8 kg
