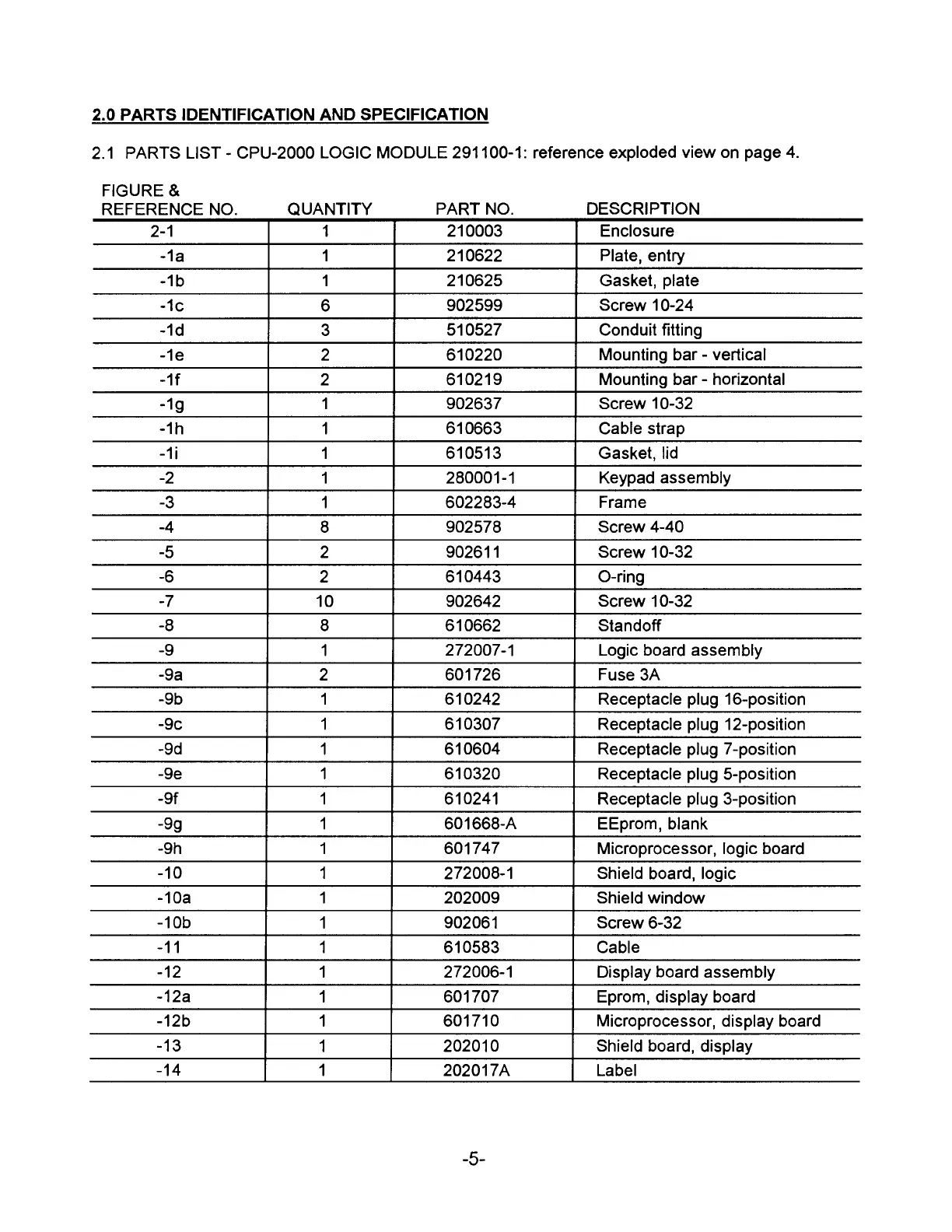

2.0 PARTS IDENTIFICATION AND SPECIFICATION
2.1 PARTS LIST - CPU-2000 LOGIC MODULE 291100-1: reference exploded view on page 4.
FIGURE &
REFERENCE NO.
2-1
-1a
-1b
-1c
-1d
-1e
-1f
-1g
-1h
-1i
-2
-3
-4
-5
-6
-7
-8
-9
-9a
-9b
-9c
-9d
-9e
-9f
-9g
-9h
-10
-10a
-10b
-11
-12
-12a
-12b
-13
-14
QUANTITY
1
1
1
6
3
2
2
1
1
1
1
1
8
2
2
10
8
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
PART NO.
DESCRIPTION
210003 Enclosure
210622 Plate, entry
210625
Gasket, plate
902599
Screw 10-24
510527 Conduit fitting
610220 Mounting bar - vertical
610219
Mounting bar - horizontal
902637
Screw 10-32
610663 Cable strap
610513
Gasket, lid
280001-1 Keypad assembly
602283-4 Frame
902578 Screw 4-40
902611 Screw 10-32
610443 O-ring
902642
Screw 10-32
610662 Standoff
272007-1 Logic board assembly
601726 Fuse 3A
610242 Receptacle plug 16-position
610307
Receptacle plug 12-position
610604
Receptacle plug ?-position
610320 Receptacle plug 5-position
610241
Receptacle plug 3-position
601668-A EEprom, blank
601747
Microprocessor, logic board
272008-1 Shield board, logic
202009 Shield window
902061 Screw 6-32
610583 Cable
272006-1 Display board assembly
601707 Eprom, display board
601710
Microprocessor, display board
202010 Shield board, display
202017A Label
-5-
