Altronix AL1024ULACM - Enclosure Dimensions

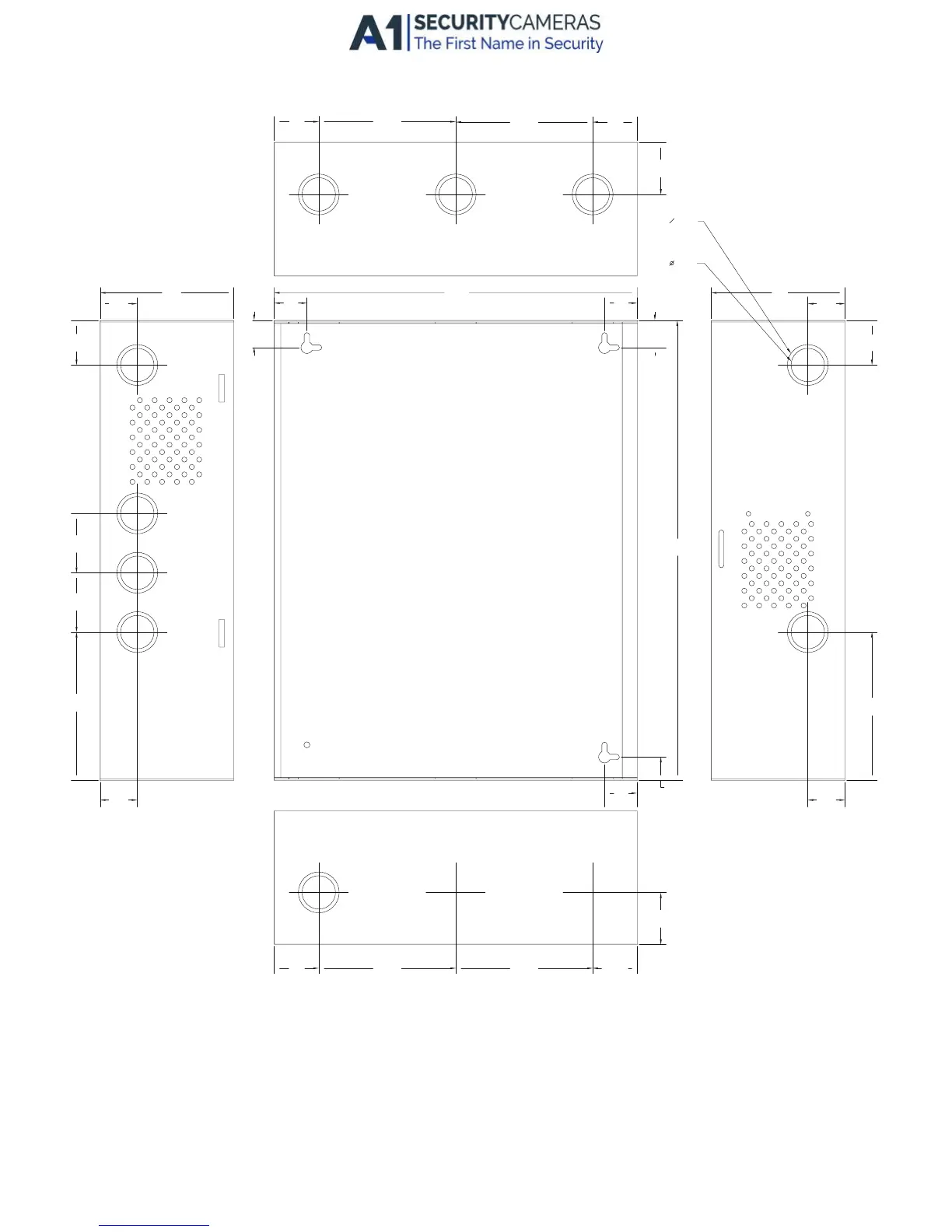

Enclosure Dimensions (H x W x D approximate BC400):
15.5” x 12” x 4.5” (393.7mm x 304.8mm x 114.3mm)
5.0”
(127.0mm)
2.0”
(50.8mm)
2.0”
(50.8mm)
1.5”
(38.1mm)
1.5”
(38.1mm)
1.5”
(38.1mm)
5.0”
(127.0mm)
1.5”
(38.1mm)
1.75”
(44.45mm)
1.75”
(44.45mm)
4.5”
(114.3mm)
1.25”
(31.75mm)
4.5”
(114.3mm)
1.25”
(31.75mm)
1.25”
(31.75mm)(31.75mm)
1.1”
(27.94mm)
1.1”
(27.94mm)
0.79”
(20.06mm)
1.1”
(27.94mm)
0.91”
(23.114mm)
0.91”
(23.114mm)
1.375”
(34.925mm)
1.125”
(28.575mm)
15.5”
(393.7mm)
4.615”
(117.22mm)
12.23”
(310.64mm)
4.615”
(117.22mm)
1.5” 1.5”
4.615” 4.615”
1.25”
(38.1mm)
(117.22mm) (117.22mm)
(38.1mm)
- 10 - ACM series
