Altronix AL600ULACM - Hook-Up Diagrams; Isolated Power Supply Configurations; FACP Interface Wiring

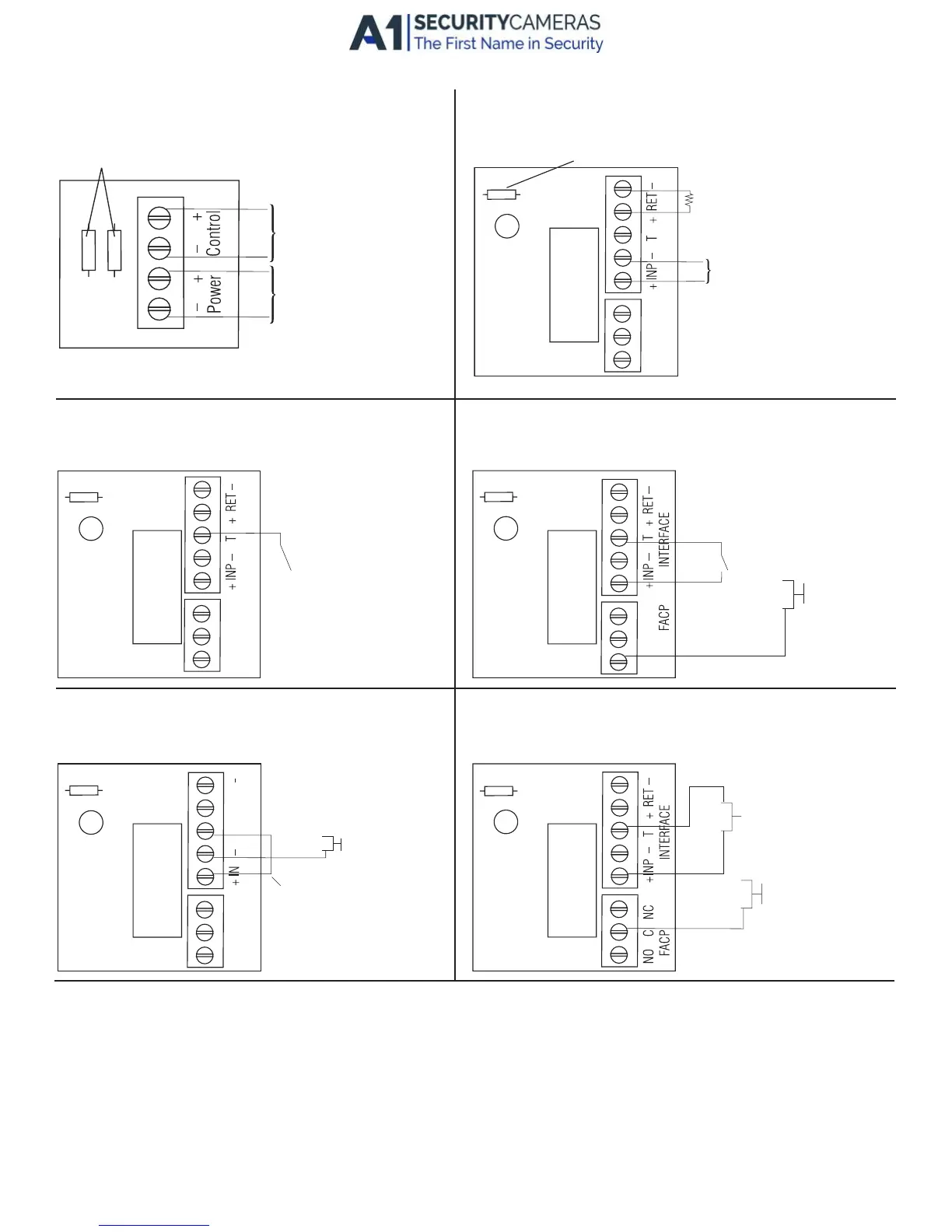

Hook-Up Diagrams:
Fig. 5 Normally Open - Non-Latching FACP
trigger input:
Fig. 6 Normally Open FACP Latching trigger input
with reset:
(This output has not been evaluated by UL)
Fig. 7 Normally Closed - Non-Latching FACP
trigger input:
Fig. 8 Normally Closed - Latching FACP trigger input
with reset:
(This output has not been evaluated by UL)
Fig. 4 Polarity reversal input from FACP signaling circuit
output (polarity is referenced in alarm condition):
Fig. 3 Optional hook-up using two (2) isolated
power supply inputs:
J2 J1
CUT JUMPERS
J1 AND J2
ISOLATED POWER INPUT
12 OR 24 VAC OR VDC
(LOCK POWER)
ISOLATED POWER INPUT
12 OR 24 VAC OR VDC
(ACM8 POWER)
CUT
JUMPER
FROM FACP
OUTPUT
CIRCUIT
+
--
FACP
OUTPUT EOL
TRG
NO C NC
FACP INTERFACE
JUMPER
N.C. DR
Y
TRIGGER
INPUT
TRG
NO C NC
FACP INTERFACE
N.C. TRIGGER
INPUT
N.C. RESET
SWITCH
JUMPER
TRG
N.O. TRIGGER
INPUT
TRG
NO C NC
FACP INTERFACE
N.C. RESET
SWITCH
N.O.
TRIGGER
INPUT
JUMPER
TRG
NO C NC
- 8 - ACM series
