Altronix AL600ULX User Manual

AL600ULX Series - 5 -
LED Diagnostics:
PD4UL/PD4ULCB/PD8UL/PD8ULCB - Power Distribution Module
Green Power Distribution Module Status
ON Normal operating condition.
OFF No Power Output.
Terminal Identification:
PD4UL/PD4ULCB/PD8UL/PD8ULCB - Power Distribution Module
Terminal Legend
Function/Description
PD4UL/PD4ULCB PD8UL/PD8ULCB
1P to 4P 1P to 8P Positive DC power outputs.
1N to 4N 1N to 8N Negative DC power outputs.

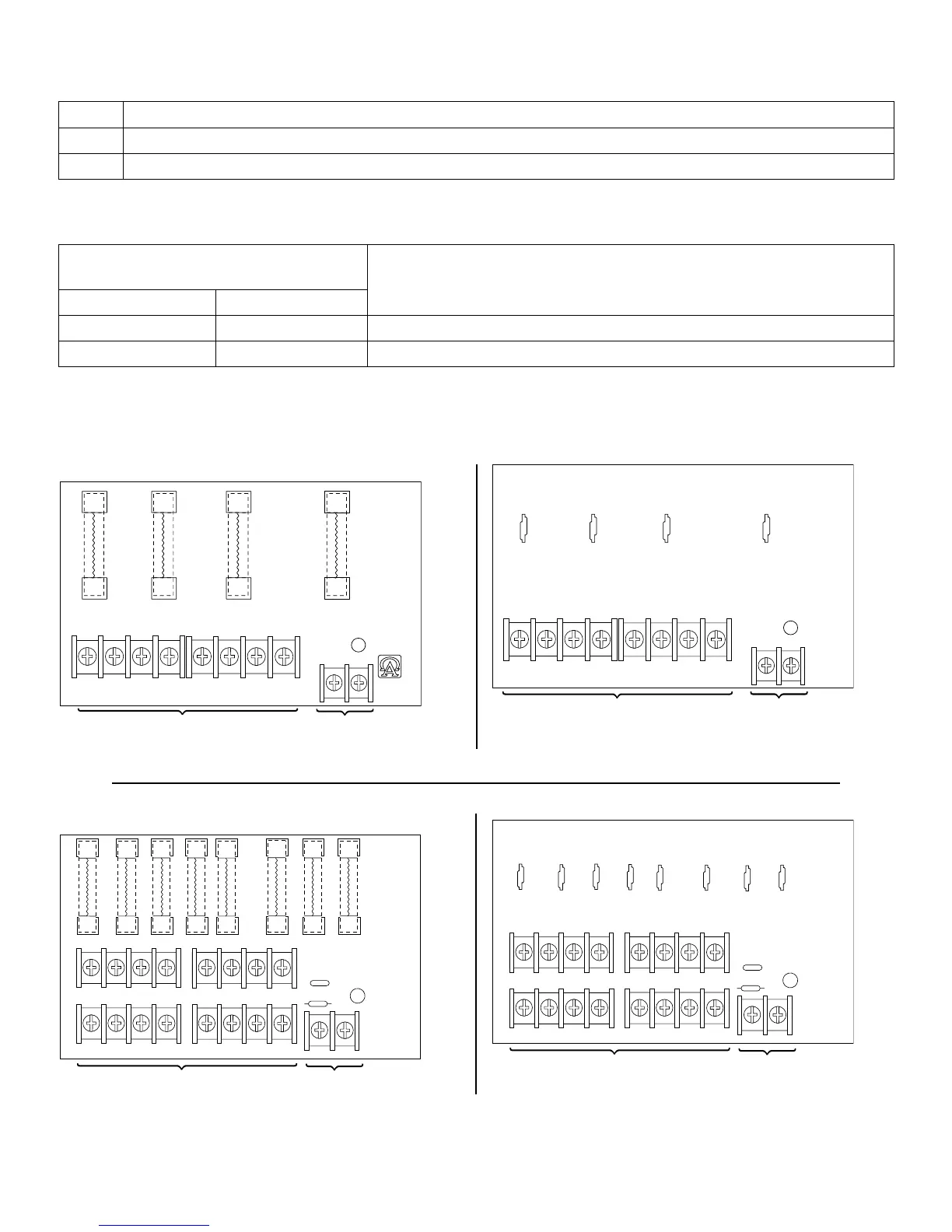

Power Distribution Module(s):
INPUT
LED
PD4UL
POWER DISTRIBUTING UNIT
ALTRONIX CORP.
BROOKLYN, NY 11220
MADE IN USA
1P, 2P, 3P, 4P = FUSED OUTPUTS
1N, 2N, 3N, 4N = COMMON OUTPUTS
F1 F2 F3 F4
COMMON POWER OUTPUTS
1P
1N
2P
2N
3P
3N
4P
4N
From Power Supply
Board
(Factory Installed)
Replace fuses with the same type and rating 3.5A, 250V.
Non- Power Limited
DC Output to devices
1P-4P Power Outputs,
1N-4N Common Outputs
()
Fig. 2a
Fig. 3a
N
COMMON POWER OUTPUTS
P
FUSED POWER OUTPUTS
1 2 3 4 5 6 7 8
D1
INPUT
R1
LED
From Power Supply
Board
(Factory Installed)
Replace fuses with the same type and rating 3.5A, 250V.
Non- Power Limited
DC Output to devices
1P-8P Power Outputs,
1N-8N Common Outputs
()
PD8UL
POWER DISTRIBUTING UNIT
INPUT
LED
F1 F2 F3 F4
POWER OUTPUTS
1P
1N
2P
2N
3P
3N
4P
4N
Class 2 Rated Power Limited
DC Output to devices
1P-4P Power Outputs,
1N-4N Common Outputs
From Power Supply
Board
(Factory Installed)
()
PD4ULCB
POWER DISTRIBUTING UNIT
Fig. 2b
Fig. 3b
N
COMMON POWER OUTPUTS
P
FUSED POWER OUTPUTS
1 2 3 4 5 6 7 8
D1
INPUT
R1
LED
From Power Supply
Board
(Factory Installed)
Class 2 Rated Power Limited
DC Output to devices
1P-8P Power Outputs,
1N-8N Common Outputs
()
PD8ULCB
POWER DISTRIBUTING UNIT
