Altronix FireSwitch 108 - Single FACP Trigger Configurations; Class A Signaling Setup; Multi-Unit Following Input 2; Interconnection of Four Units

- 18 - FireSwitch108
INP1 RET1
NEGATIVE
POSITIVE
+ SYNC --- NC GND NC NO C EARTH
INP2 RET2
NEGATIVE
POSITIVE
+ SYNC --- NC GND NC NO C EARTH
INP2 RET2
NEGATIVE
POSITIVE
+ SYNC --- NC GND NC NO C EARTH
RETURNOUT
FACP
(Fire Alarm
Control Panel)
Addressable
Module
Supervision
FireSwitch Logic Board:
Programmed for
Following INP2 (2c)
For this application set Dip Switches for INP2 to “ON” position on all units,
except the one triggered from FACP
FireSwitch Logic Board:
Programmed for
Following INP2 (2c)
FireSwitch Logic Board:
Programmed for desired
Notification Appliance
Class A signaling
circuit connection
non-silencable
configuration.
A total of four (4) FireSwitch
units can be inter-connected

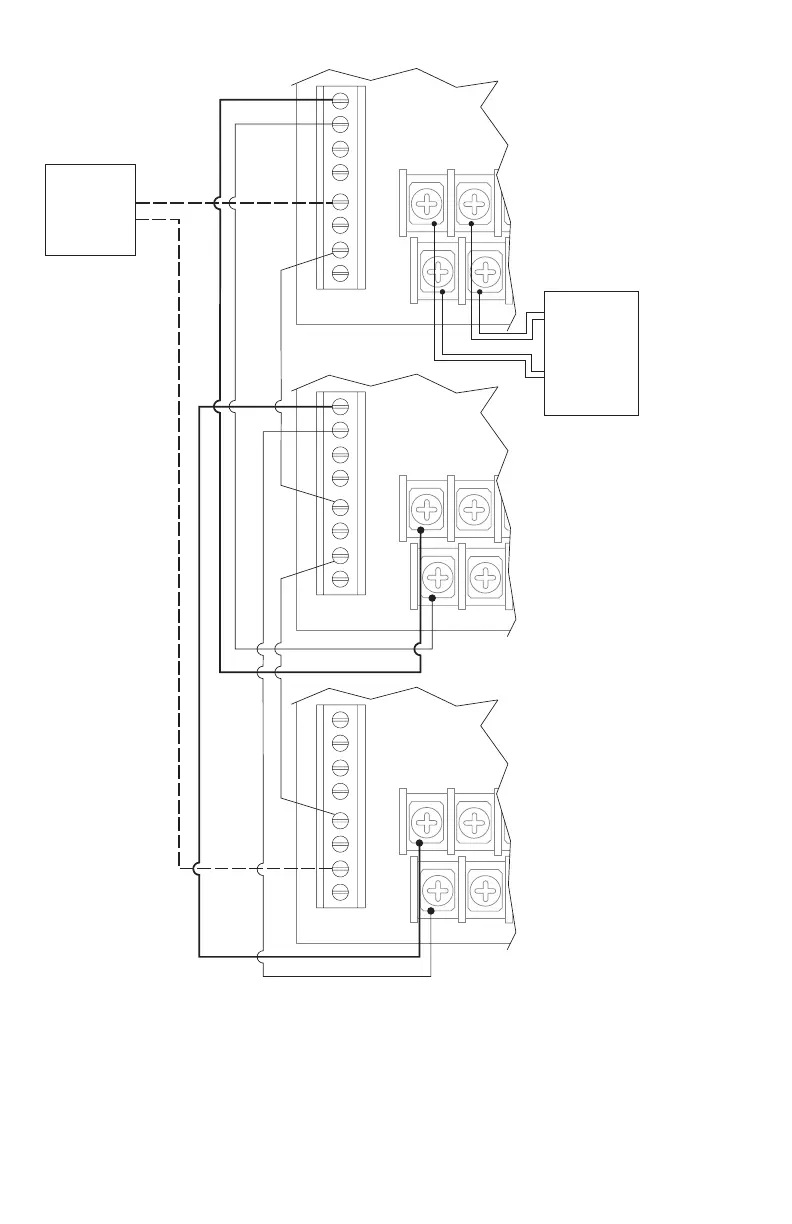

Fig. 12
