ПРИВОДЫ LEVIGATO (СЕРИЯ LG) | ПРИВОДИ LEVIGATO (СЕРІЯ LG) | LEVIGATO DRIVES (LG SERIES) 69

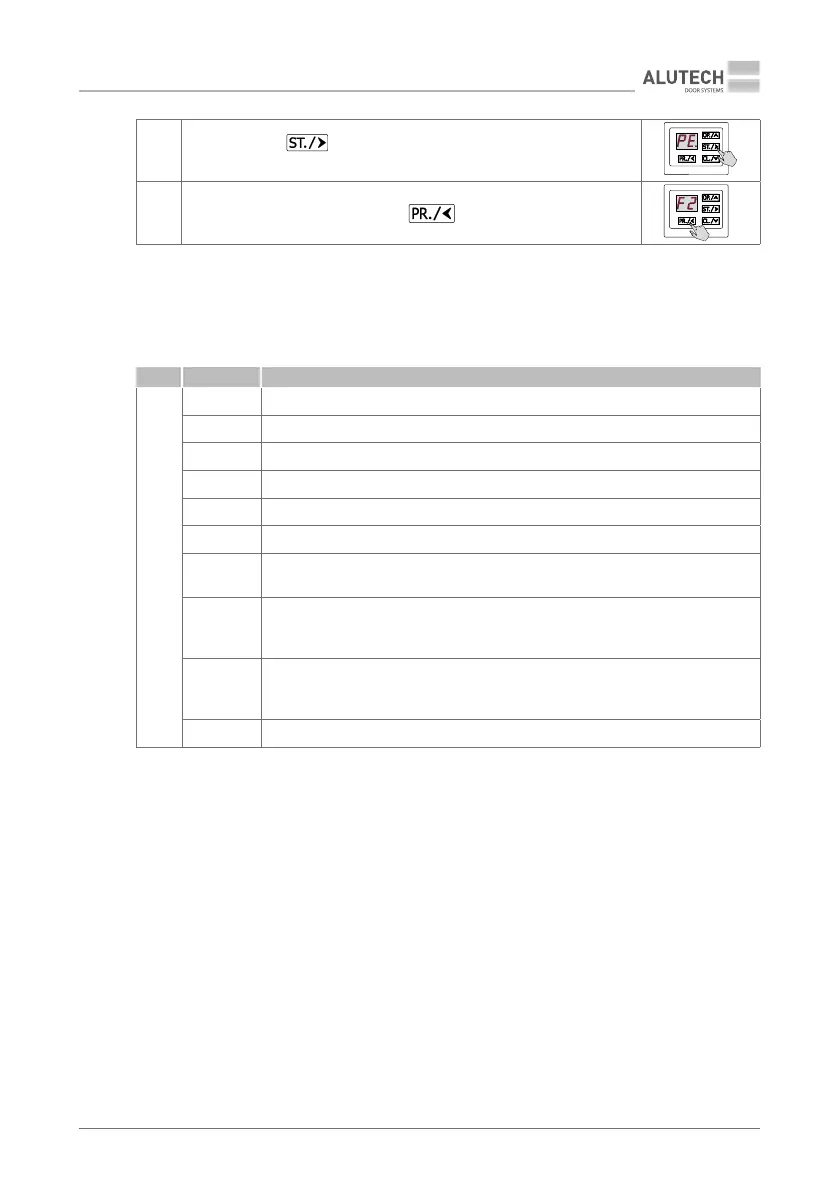

ADJUSTMENT
6
Press the button
; after that a dot will appear on the display, which
means the pedestrian position
7
To exit the menu, press twice the button or wait for 15 seconds
6.2 RADIO CONTROL SETUP
The menu ‘P2’ (tab.9) oers six settings of the remote control recording (F1–F6), the setting of
dening the recording number of the remote control (F7), two settings of deleting the remote
control (F8, F9) and the setting of deleting all remote controls (F0).
MENU SETTING DESCRIPTION
P2
F1 Recording of one button with ‘SBS’ control mode
F2 Recording of two buttons with ‘SBS’ and ‘PE’ control modes
F3 Recording of two buttons with ‘SBS’ and ‘LL’ control modes
F4 Recording of three buttons with ‘SBS’ and ‘LL’ control modes
F5 Recording of four buttons with ‘OP’, ‘STOP’, ‘CL’ and ‘PE’ control modes
F6 Recording of four buttons with ‘OP’, ‘STOP’, ‘CL’ and ‘LL’ control modes
F7
Determining the recording number of the remote control in the memory
(if there is a remote control)
F8
Deleting the remote control based on its code (it is used when there is a remote
control but the information for the remote control number in the drive memory is
not available)
F9
Deleting the remote control based on the number in the drive memory (it is used
when a remote control is absent but the information for the remote control number
in the drive memory is available)
F0 Deleting all remote controls
SBS — the step-by-step control mode.
Sequence of commands OPEN—STOP—CLOSE—STOP—OPEN…
OP — the OPEN control mode. The command to open the doors
CL — the CLOSED control mode. The command to close the doors
STOP — STOP control mode. The command to stop the doors
PE — the pedestrian position control mode. The command for partial opening of door, if the partial
position of door is set (setting P1-F2)
LL — the light lamp mode. If the door does not move, the commands to turn on and o the built-in
lighting of the drive (illumination) and lamp connection output SL / LL are executed. The SL / LL
output is controlled with the remote if the light lamp LL output has been set up (P8–F4 setting)
RECORDING THE REMOTE CONTROLS
Y
ATTENTION! If you need to overwrite a previously recorded remote contol (when you need to
record another button of the remote or record the remote in another mode), it must rst be
deleted from memory!
Table 9
