TESTING AND COMMISSIONING
MENU SETTING
DESCRIPTION
VALUES
DEFAULT
VALUE
P8 F3
Operating time in the illumination lamp (LL)
mode and the drive illumination after stopping
the door movement
no / 01, 02 … 99
no—after the end
ofdoor movement it
iso (0sec)
01—5
secs;
99—500secs
(8min 20secs)
06.
(30)
F4
The output mode «SL/LL»: the signal lamp (SL)
or the illumination lamp (LL).
The signal lamp (SL)—works when the door
movement and when the door movement is
delayed (P8–F2 time setting).
The illumination lamp (LL)—works when the door
movement and after stopping the movement
(time setting P8-F3)
no—signal
lamp / on—
illumination lamp
no.

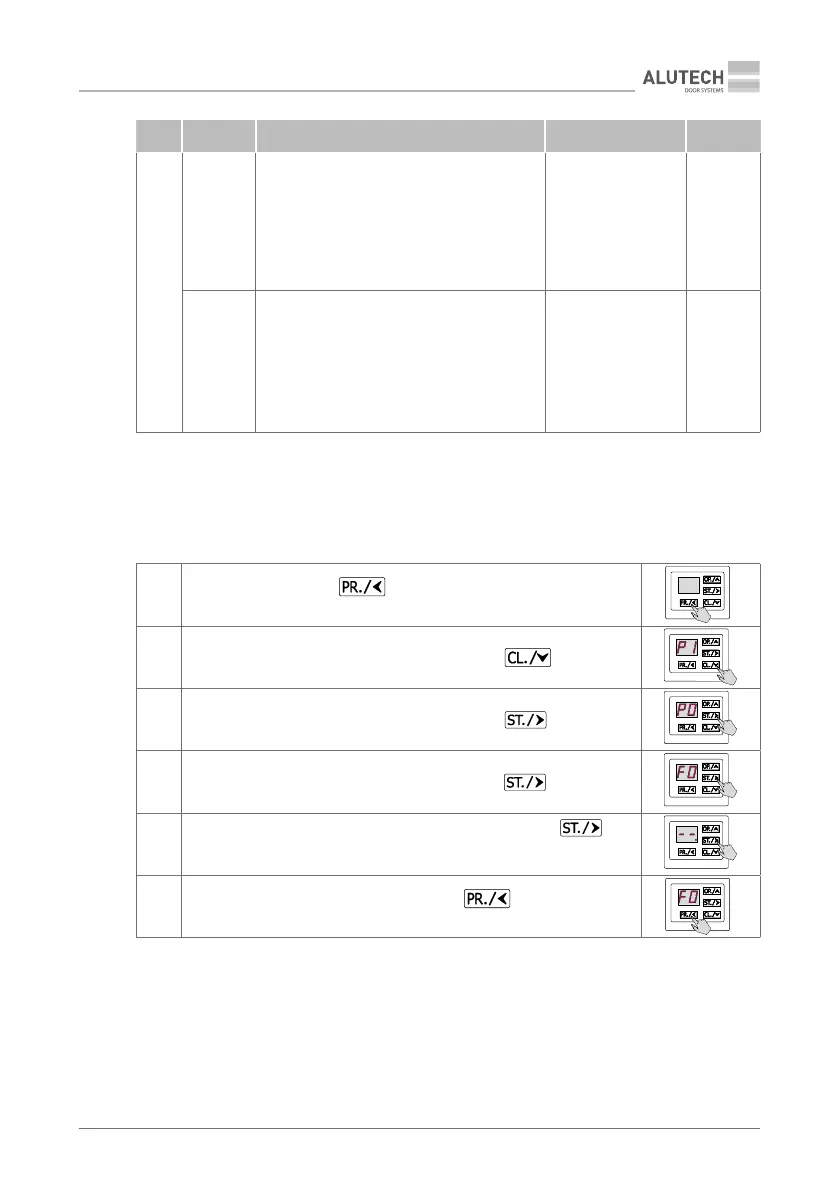

6.4 FACTORY RESET
The factory reset restores the settings that are set by default when the drive delivering. The
congured positions of the door will be deleted. The recorded remote controls will be saved.
1
Press and hold the button
for about 5secs to enter the
programmingmode
2
After the appearance of ‘P1’ inscription press the button
3
After the appearance of ‘P0’ inscription press the button
4
After the appearance of ‘F0’ inscription press the button
5
After the appearance of «--» inscription press and hold the button
for 5secs. A dot will appear on the display, this means the resetting to default
settings
6
To exit the programming mode press the button
twice or wait for
15secs (until automatic exit the setup menu). The display will show two dots
7. TESTING AND COMMISSIONING
This is an important stage of drive system installation. The test is performed as follows:
• make sure that the full scope of the instructions in section 1. ‘General warnings and safety rules’
and other requirements of the manual are complied with.
• Ensure stable and secure mounting of the drive and the guide rail.
Table 17
