Amada ADF4 - Parts Drawing 3 - Manifold Assembly

© 1999 Amada28
40 2SG-59847-01 NEMA 4 Solenoid Pack
41 8PP-48948-03 NEMA 4 Solenoid Enclosure
42 8PP-21461-00 Connector, Male, 1/4" Tube x 1/8" MPT
43 8PP-25409-00 Replacement Solenoid Coil, Type QT
44 8PP-24636-00 Solenoid Valve Rebuild Kit, NEMA 4, 3D2
45 8PP-22958-00 Solenoid Valve Complete
Parts Drawing 4

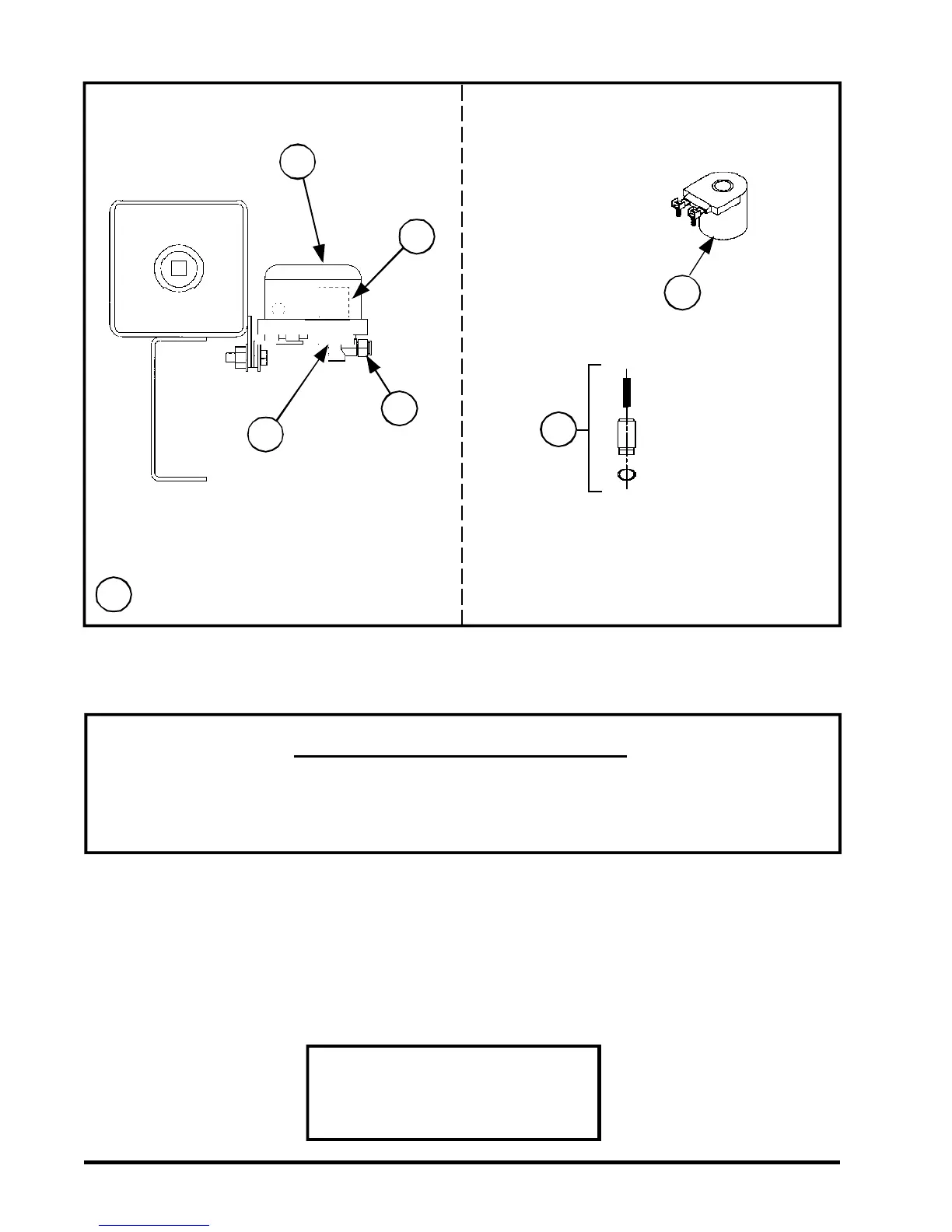

Solenoid Enclosure Assembly NEMA 4
41
45
42
43
40
Solenoid Pack NEMA 4
44
43
Ref. Part Description
No. No.
Replacement Parts List
Torit Express
Parts and Service Line
800-365-1331
