Amada ADF4 - Parts Drawing 5 - Delta P Control Components

© 1999 Amada
29
50 8PP-75361-01 Printed Circuit Board
51 8PP-75360-01 Delta P Control Keypad
52 8PP-18463-00 Coupling, Female 1/8" NPT
53 8PP-16477-00 Elbow, 90°, Plastic, Male, 1/8" NPT
54 8PP-23260-00 Elbow, 90°, Brass, Female, 1/8" NPT
55 8PP-21574-00 Adapter, 1/8" NPT x 1/8" FPT
56 5PM-23342-00 Plastic Tubing
57 8PP-23245-01 Static Pressure Tap Tee, Brass

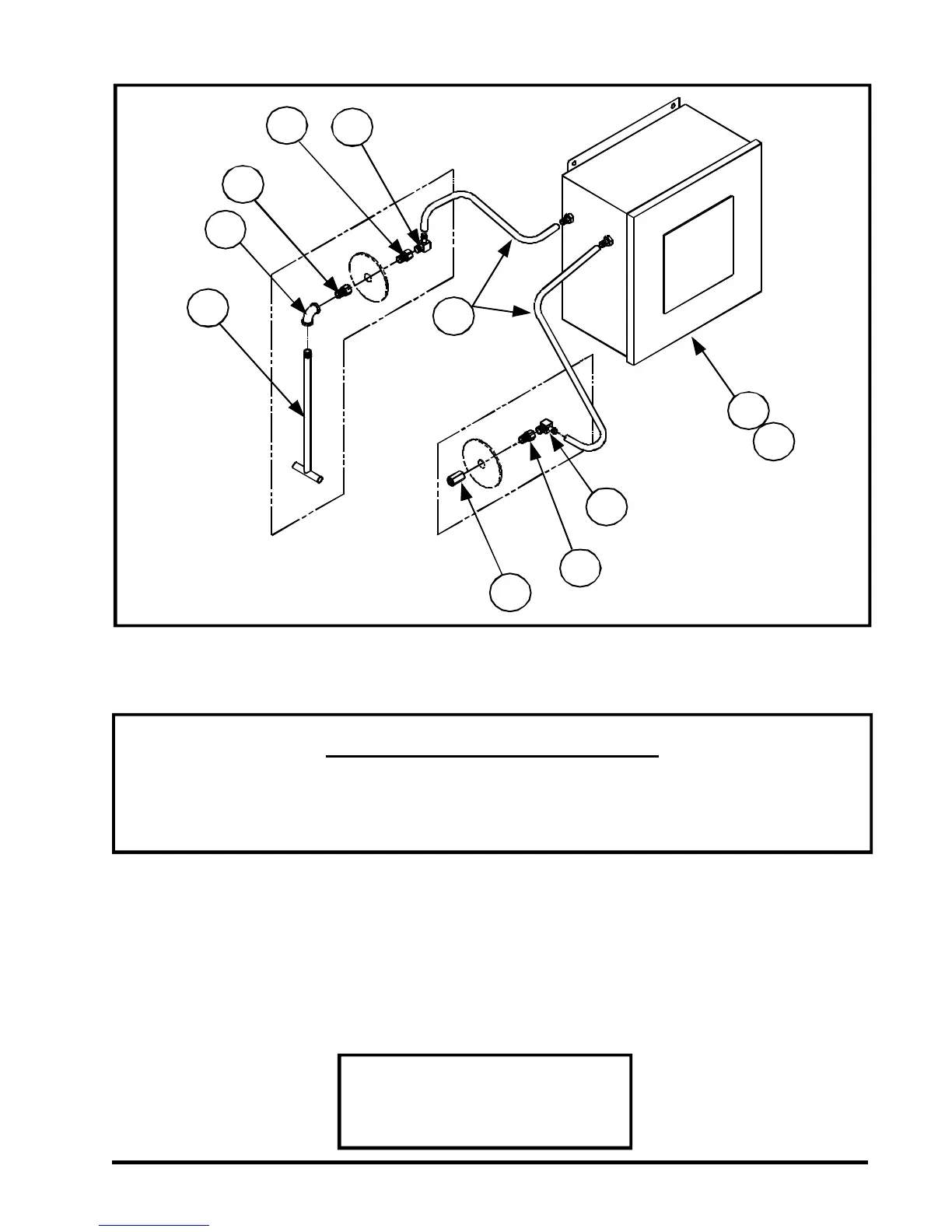

Parts Drawing 5
Delta P Control
50
51
53
55
53
56
55
55
54
57
52
