IPB-5000B
6. Description of Display Screens
6-2

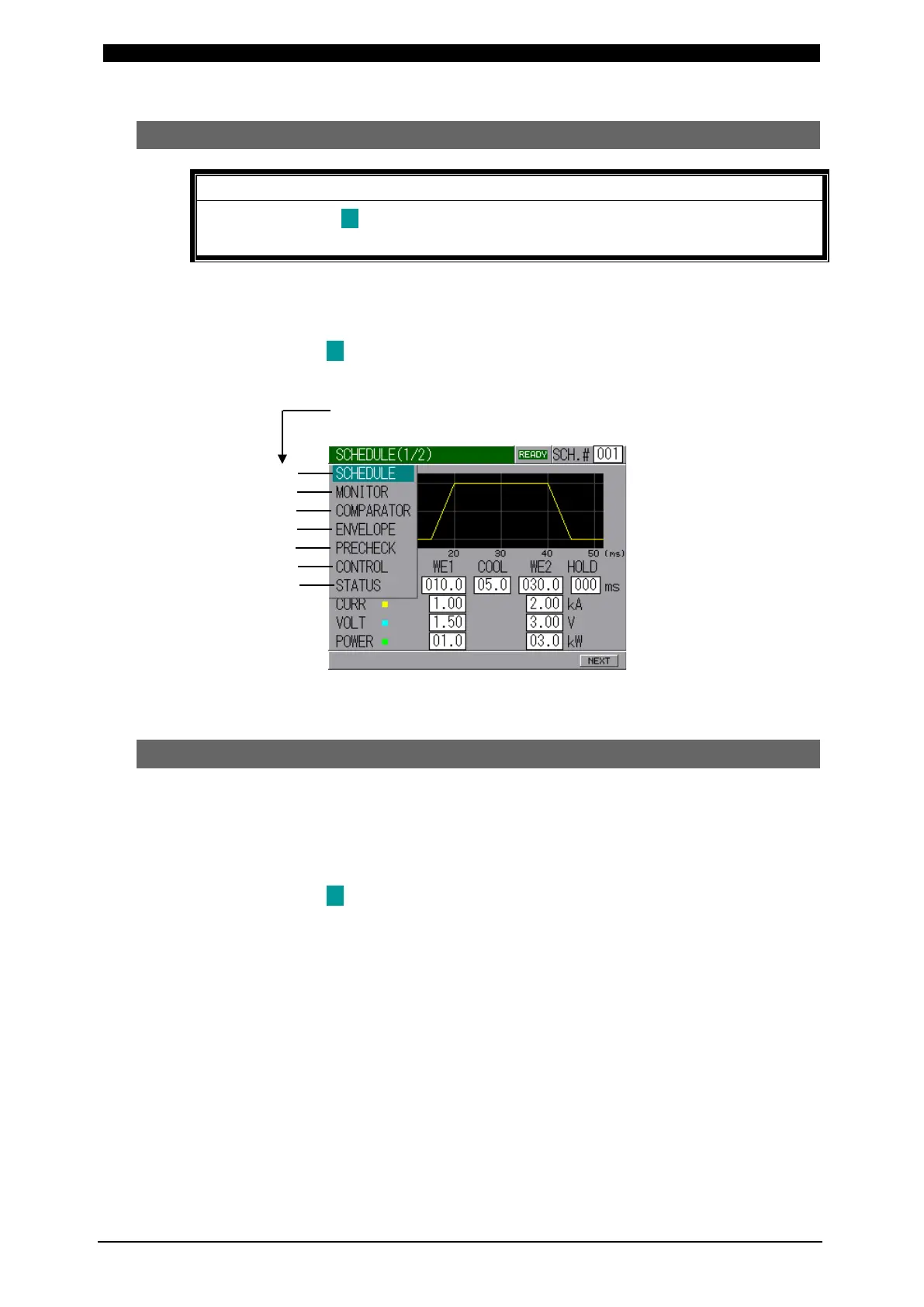

(2) MENU Screen
Move the cursor ( ) to the number or ON (or OFF) to be set or changed and
press +/- key to complete such setting as input of a number or change of ON/OFF.
IPB-5000B has various functions, which are set in the respective screens. Press
MENU Key in Front Panel to display MENU screen.
At the upper left of MENU screen, each function is displayed as a menu form.
Move the cursor ( ) to an item you desire; press ENTER key to go to the selected
screen.
The numbers of (3) to (9) show the paragraph No. in the chapter
(4)
(5)
(6)
(7)
(8)
(3) SCHEDULE Screen
Up to 127 weld schedules can be set on IPB-5000B.
Those schedules are indicated as SCHEDULE #1 to #127.
The screen is used to set the SCHEDULE No., length of weld time, weld current
and so on.
Move the cursor ( ) to SCHEDULE and press ENTER key to display SCHEDULE
Screen as follows.
The control method can be set for WE1 and WE2 respectively, and the waveform of
a selected control method is displayed as follows. Also, if the waveforms selected
for each WE1 and WE2 are different each other, two different waveforms also are
displayed.
To Next Page
