7. Basic Operation
7-2

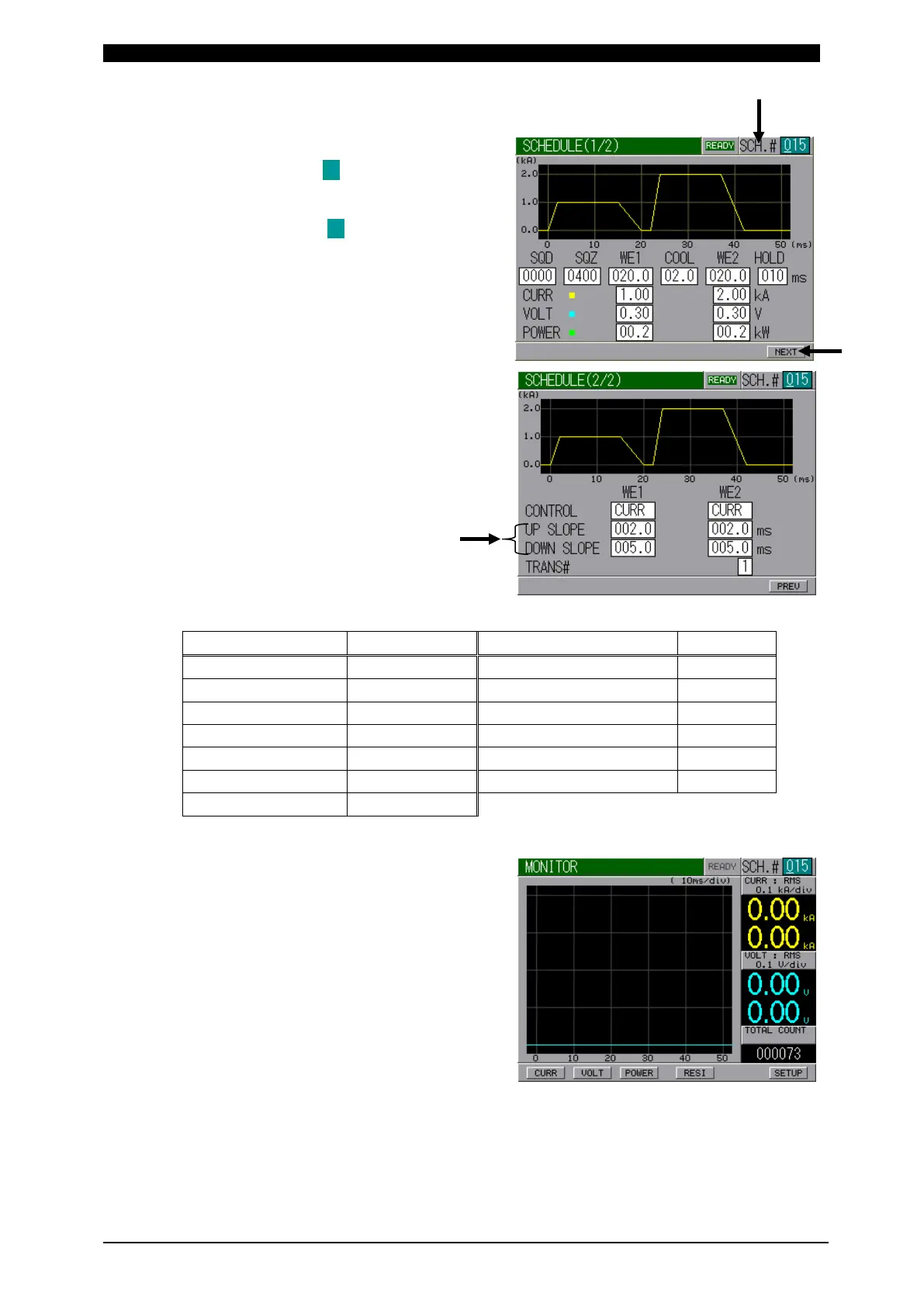

(5) Press MENU Key on Front Panel to
display MENU Screen.
Move the cursor ( ) to SCHEDULE
and press ENTER Key to display
SCHEDULE Screen.
Move the cursor ( ) to each place
and set the values of the table below
to each place by +/- Key.
Press NEXT Button to set the values
of UP SLOPE and DOWN SLOPE in
the following screen.
Item
Value
Item
Value
SCH. #
15
UP SLOPE at WE1
2 ms
SQD
0 ms
UP SLOPE at WE2
2 ms
SQZ
400 ms
DOWN SLOPE at WE1
5 ms
WE1
20 ms
DOWN SLOPE at WE2
5 ms
COOL
2 ms
CURR at WE1
1 kA
WE2
20 ms
CURR at WE2
2 kA
HOLD
10 ms
(6) For the test of welding, press
MENU Key on Front Panel, select
MONITOR and press ENTER Key.
MONITOR Screen is displayed.
