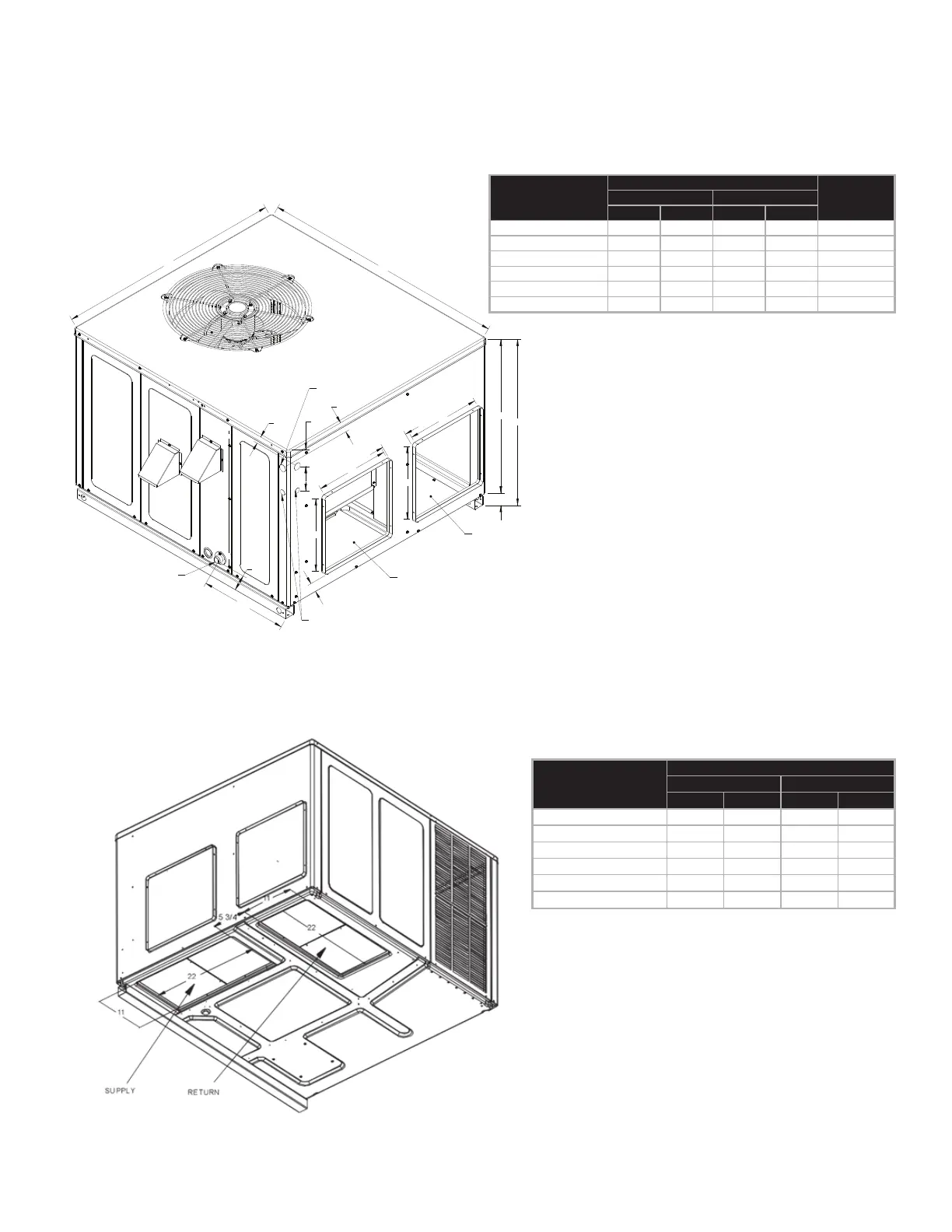

UNIT DIMENSIONS
W D A B
A/GPGM324***41** 47 51 32 34 1/2 Medium
A/GPGM330***41** 47 51 32 34 1/2 Medium
A/GPGM336***41** 47 51 32 34 1/2 Medium
A/GPGM342***41** 47 51 32 34 1/2 Medium
A/GPGM348***41** 47 51 40 42 1/2 Large
A/GPGM361***41** 47 51 40 43 1/2 Large
Model
Unit Dimensions (Inches)
Chassis Size
Height
W H W H
A/GPGM324***41** 16 16 16 16
A/GPGM330***41** 16 16 16 16
A/GPGM336***41** 16 16 16 16
A/GPGM342***41** 16 16 16 16
A/GPGM348***41** 16 18 16 18
A/GPGM361***41** 16 18 16 18
Duct Openings
Supply
Return
Model
51
47
A
B
2.5
W
W
H
H
1.375
6.5
2.125
4.125
3
16.875
4.75
5.5
SUPPLY
RETURN
POWER WIRE
ENTRANCE
CONDENSATE DRAIN CONNECTION
3/4" NPT FEMALE
CONTROL WIRE
ENTRANCE
