Install Drain Line

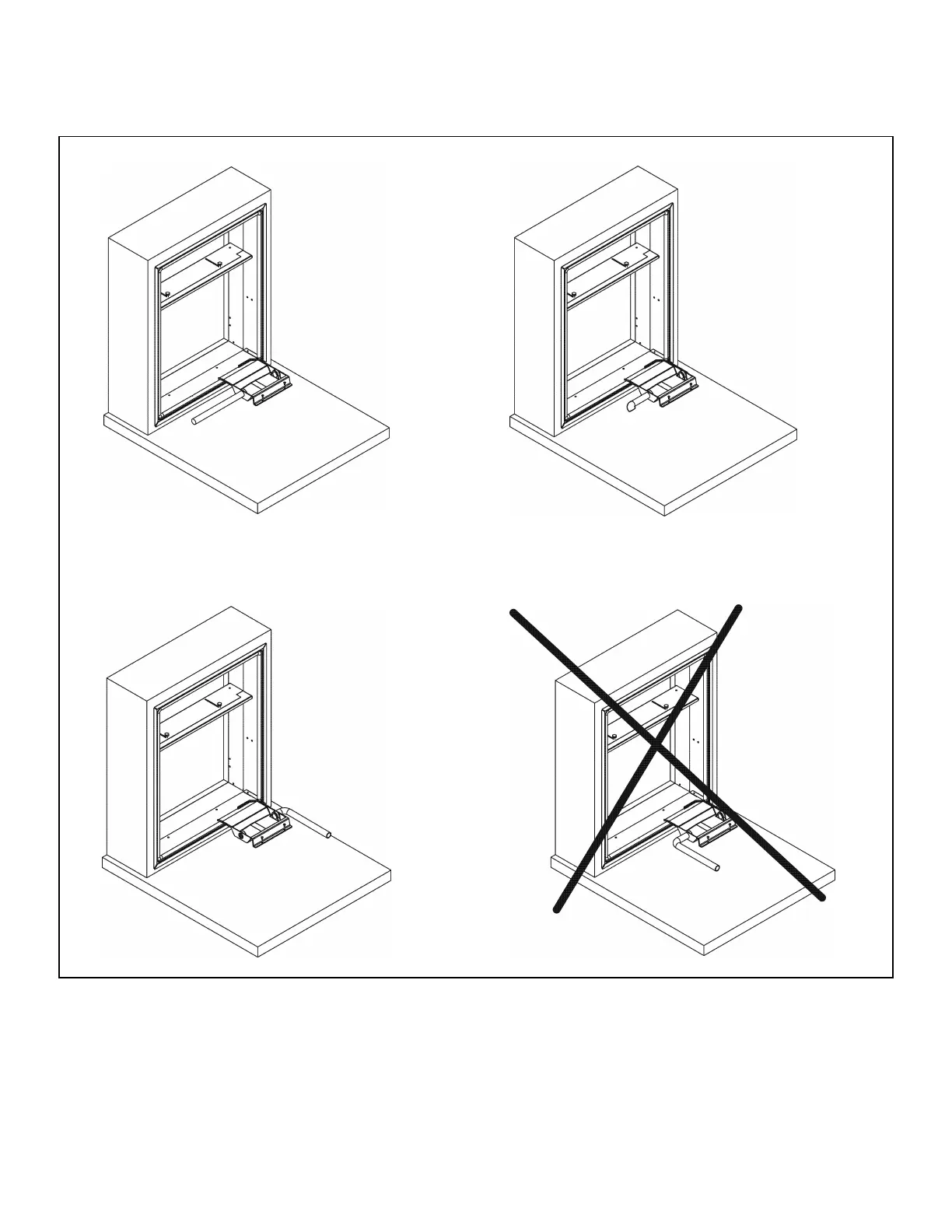

Condensate line routing options are shown below. Choose
the one that best suits your installation.
Important: Never run the condensate line as shown in
Option 4 below, as the drain line will come into contact with
the factory-installed isolators beneath the unit.
Figure 5
12
Option 1
Run condensate line
to left of unit
Option 2
Run condensate line
beneath unit platform
Option 3
Run condensate line
to right of unit
Option 4
Do not run
condensate line
back toward unit
