Amana AVH24 Series User Manual

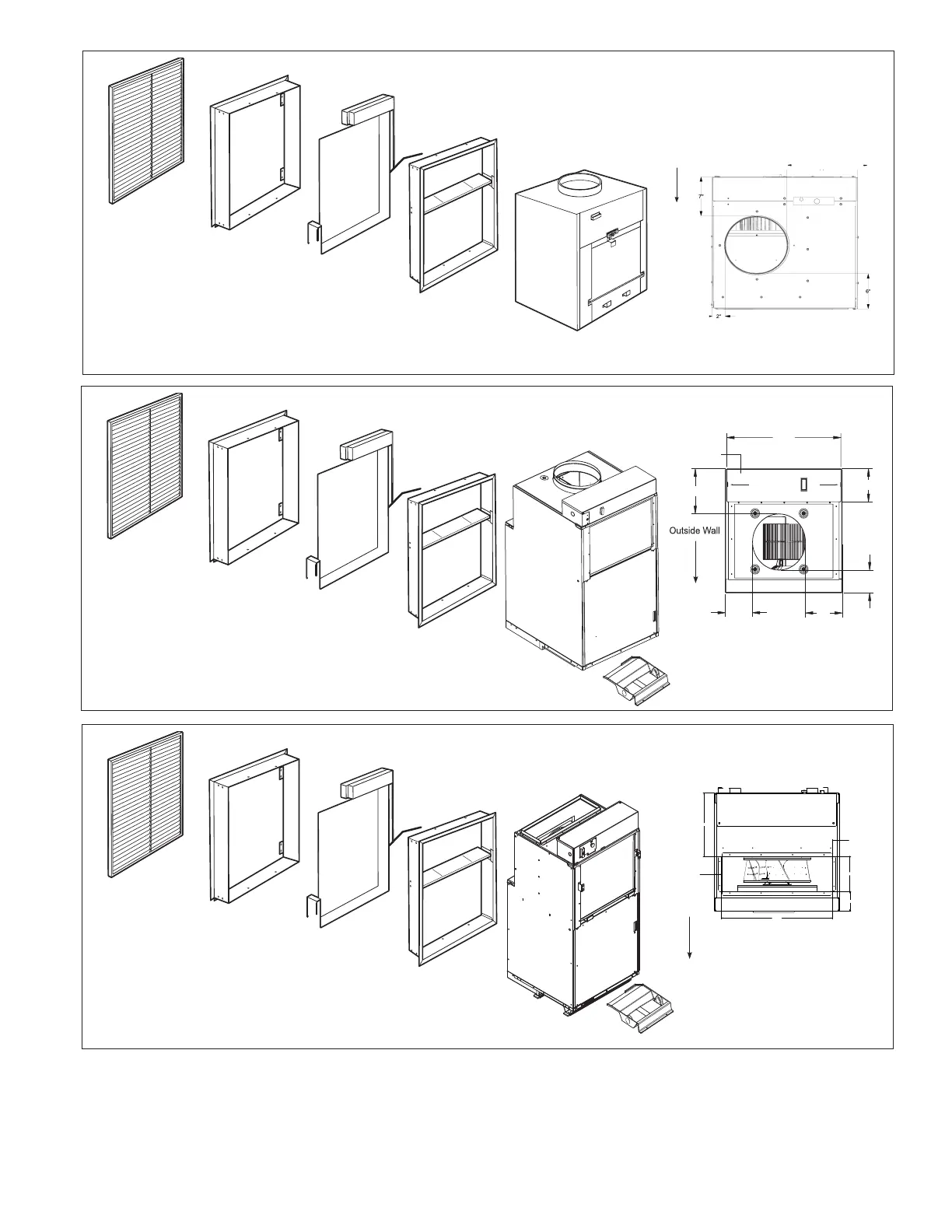

Architectural Grille
AVAGK01xx
Exterior/
Outside Wall
Part B
Inside
Wall Adapter
Unit
Part A
Outside
Wall Adapter
Applicable Models
AVH09xxxxxxxx
AVH12xxxxxxxx
AVEWA05-08A = 5 1/2" - 8" D x 24 1/8" W x 30 3/8" H
AVEWA08-14A = 8" - 14" D x 24 1/8" W x 30 3/8" H
Architectural Grille
AVAGK01xx
Exterior/
Outside Wall
Part B
Inside
Wall Adapter
Unit
Part A
Outside
Wall Adapter
Applicable Models
AVH18xxxxxxxx
AVEWA05-08A = 5 1/2" - 8" D x 24 1/8" W x 30 3/8" H
AVEWA08-14A = 8" - 14" D x 24 1/8" W x 30 3/8" H
Large Chassis Unit
(Unit height 47”)
Filter (14” x 20”)
Small Chassis Unit
(Unit height 32”)
Filter (14” x 20”)
AVDK18-2401B drain pan
required (Sold & Shipped
Separately)
Architectural Grille
AVAGK01xx
Exterior/
Outside Wall
Part B
Inside
Wall Adapter
Unit
Part A
Outside
Wall Adapter
Applicable Models
AVH24xxxxxxxx
AVEWA05-08A = 5 1/2" - 8" D x 24 1/8" W x 30 3/8" H
AVEWA08-14A = 8" - 14" D x 24 1/8" W x 30 3/8" H
24k Chassis Unit
(Unit height 52”)
Filter (18” x 20”)
AVDK18-2401B drain pan
required (Sold & Shipped
Separately)
Outside
Wall
7"
2"
6"
control box
22
5
/
16
"
8
3
/
8
"
6
3
/
16
"
4
3
/
16
"
7
3
/
16
"
5
5
/
16
"
3 55/64 "
1 1/2 "
12 19/64 "
1 1/2 "
6 55/64 "
20 5/8 "
Outside
Wall
11”
10"
10"
6
