Amana AVZC20 User Manual
4
of 1
of 1 rating
48 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
18
7.

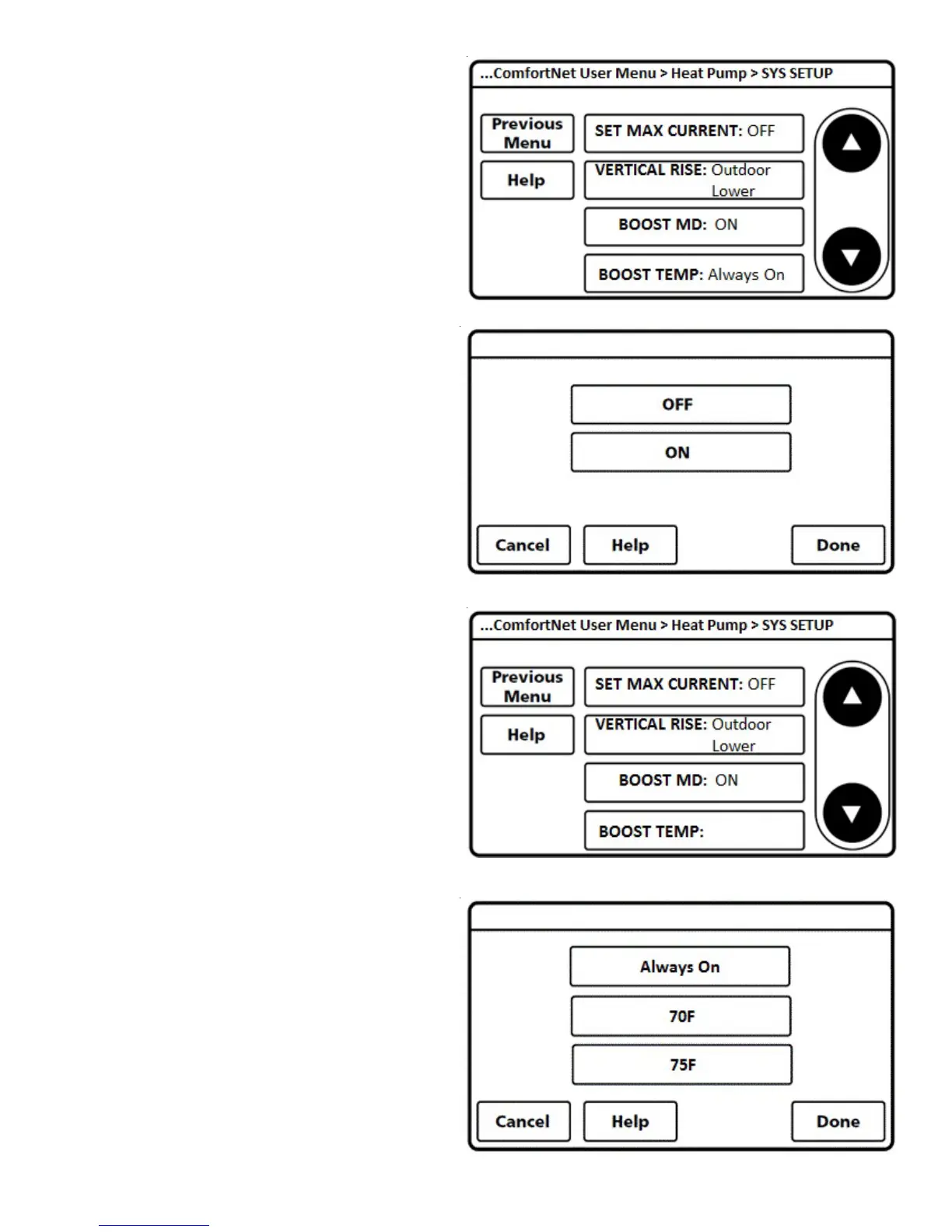

BOOST MD turns BOOST MODE OFF or ON. BOOST
MODE is ON by default.
8.
BOOST TEMP adjusts the activation temperature
from 7
0°F to 105°F
. “
A
lwa
ys ON” option is also
available to permanently engage BOOST MODE.
F
actory def
ault is 105°F
.
...Heat Pump > SYS SETUP > BOOST MD
...Heat Pump > SYS SETUP > BOOST TEMP
105F
17
19
Table of Contents
Table of Contents
1
Index
1
Important Safety Instructions
1
Shipping Inspection
2
Codes & Regulations
2
Features
2
Installation Clearances
2
Rooftop Installations
3
Safe Refrigerant Handling
3
Refrigerant Lines
3
Heat Pump below Indoor Coil
4
Heat Pump above Indoor Coil
4
R Efrigerant L Ine C Onnections
5
Leak Testing Itrogen or
5
Ystem Start up Rocedure
5
Itrogen -Traced )
5
Start-Up Procedure Detail
6
Overcurrent Protection
6
High Voltage Connection
6
Electrical Connections
6
Two-Wire Outdoor, Four-Wire Indoor Wiring
7
Thermostat Wiring
7
Connect Heat Pump Unit to System
8
Dipswitch Factory Default Settings
8
System Start-Up Test
9
Set Thermostat to Charge Mode
12
Adjust Refrigerant Level
15
Measure Subcooling to Verify Proper Charge
15
Heat Pump with Outdoor Temperature Lockouts
15
Boost Mode
16
Dehumidification
19
Dehumidification Tips
19
Comfort Net System
20
Comfort Net System Advanced Features
20
Diagnostics
20
Status
20
Equipment Test
21
Maintenance
21
Cool Set-Up
21
Cool Run Values
21
Heat Pump Advanced Feature Menu
22
Wiring Diagram
25
Capacitor
28
Heating Analysis Chart
31
Cooling Analysis Chart
32
Troubleshooting
33
Network Troubleshooting
37
Mode Display Introduction
38
Display Button Layout
38
Setting the Mode Display
38
Navigating through the Display Screens
39
Fault Code History Navigation
40
Monitoring Mode Navigation
41
Settings Mode 1 Navigation
42
Display
42
Segment Display
44
Split Systems
46
Replace or Clean Filter
46
Clean Outside Coil
46
Start - up Checklist
47
4
Based on 1 rating
