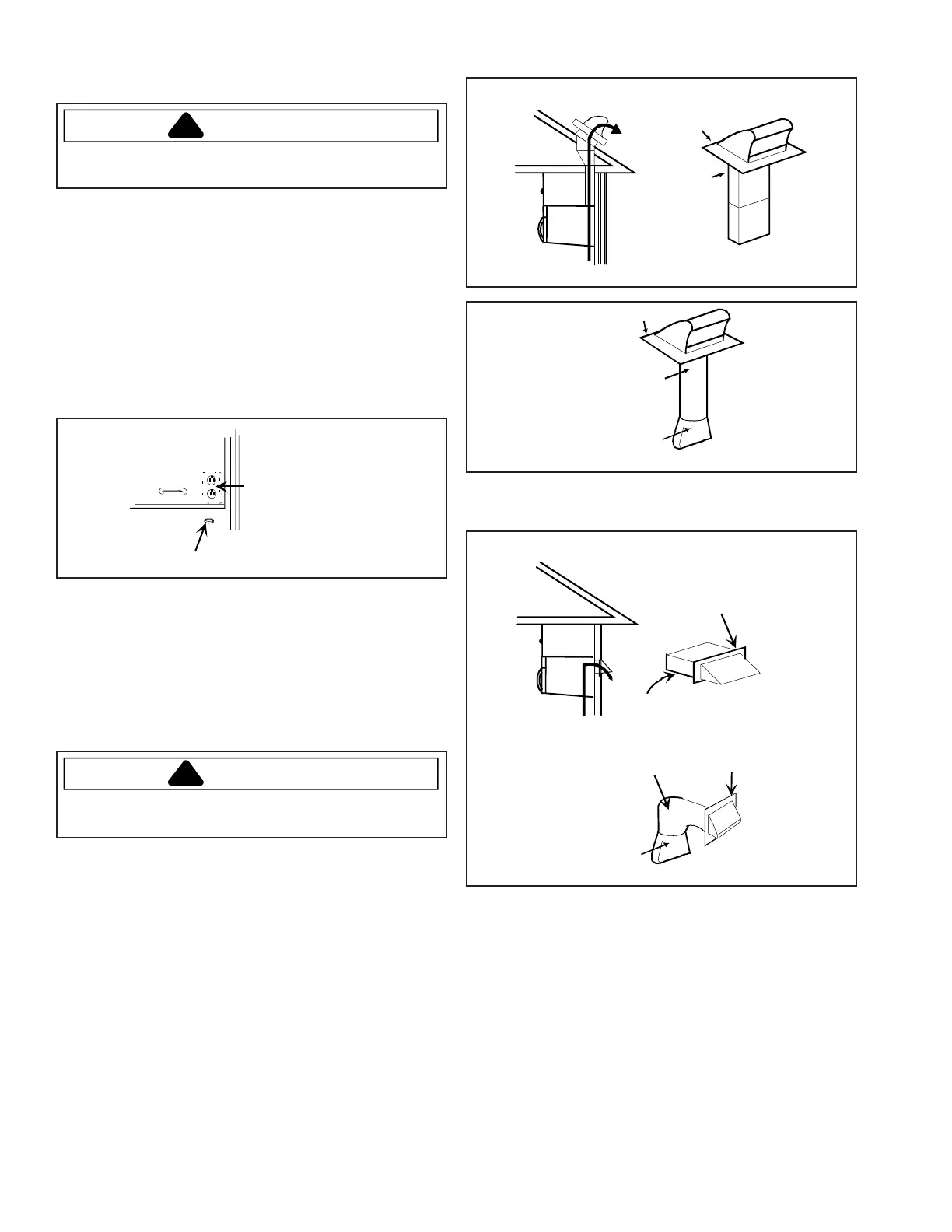

Installation Instruction
RS21000008 Rev. 0 10
Preparing Electrical Connection
WARNING
!
To avoid risk of electrical shock, this appliance must
be grounded.
1. Locate grounded electrical outlet for oven in the
cabinet above the oven.
NOTE: Outlet should be on a circuit dedicated to the
microwave oven (120 VAC, 60 Hz) with a 15 or
20 Amp fused electrical supply.
NOTE: If proper wall outlet is not present, one must be
installed by a qualified electrician.
2. Power supply cord hole will be cut later when
preparing the wall and upper cabinet.
Grounded Outlet
(inside upper cabinet)
Power Supply Cord Hole
Upper
Cabinet
NOTE: Do not use extension cord. Keep power cord dry
and do not pinch or crush.
Preparing Venting System
Oven may be vented in one of three ways.
NOTE: Do not vent oven into a wall cavity, an attic or an
unused area.
WARNING
!
To avoid risk of fire, personal injury or property
damage, oven must be properly vented.
NOTE: Duckwork needed for outside ventilation is not
included with oven.
Roof-Venting
Oven is located on an outside wall near roof.
Roof Venting
Through-the-roof
3 1/4"x10"
duct
Roof cap
Roof venting
6"
Diameter
round duct
3 1/4" to round
duct transition
Roof cap
Wall Venting
Oven is located on an outside wall of house.
Wall Venting
Wall venting
Through-the-wall
Wall cap
3 1/4"x10"
duct
3 1/4" to round
duct transition
Wall cap
Elbow
