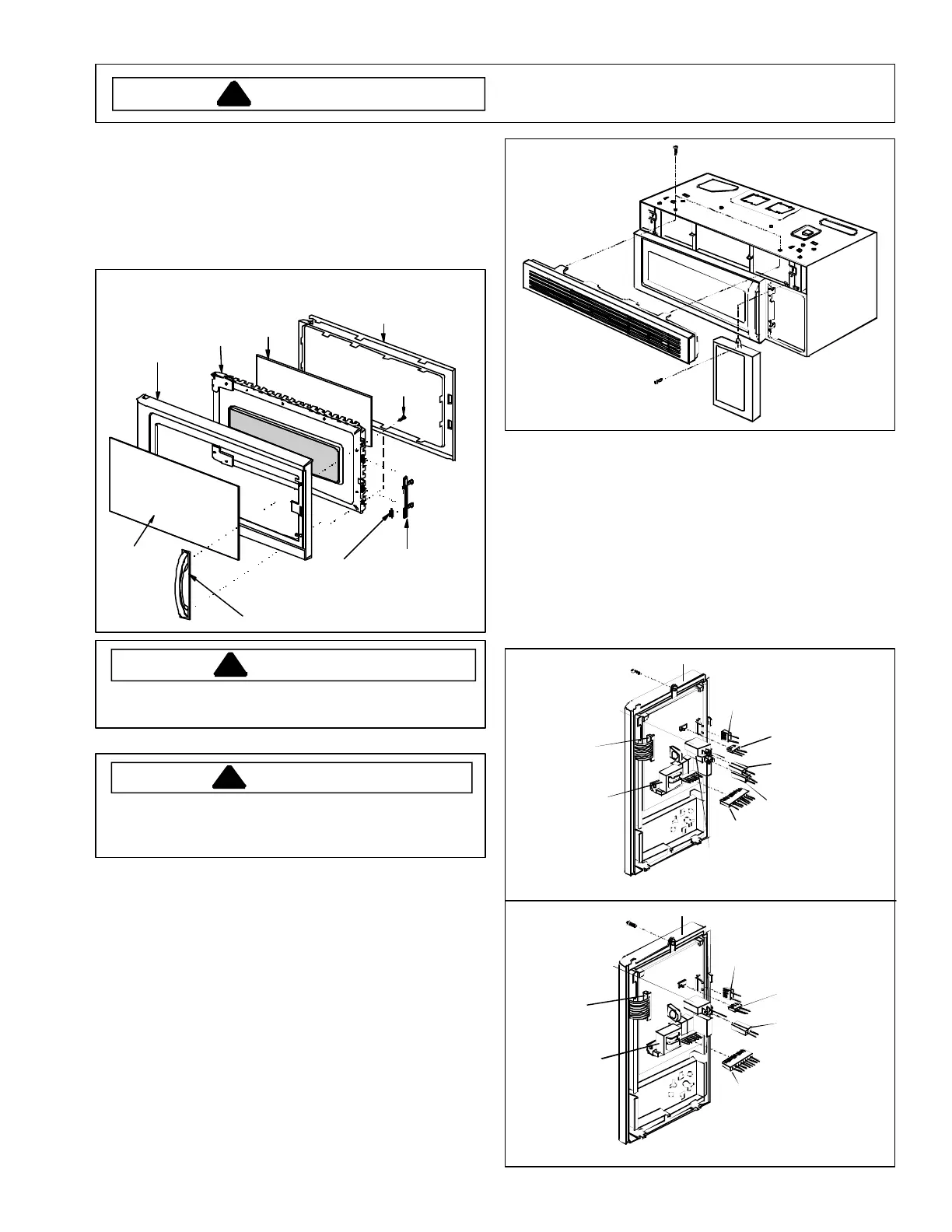

Disassembly Procedures
To avoid the risk of electrical shock, personal injury or
death; disconnect power to oven and discharge
capacitors before following any disassembly procedure.
WARNING
!
31 RS2100008 Rev. 1
P.C. Board
The p.c. board is located at the top on back of control
panel. This board has up to six connection plugs which
control the following:
CN1 Main power connector
CN2 Primary switch
CN5 Humidity sensor (some models)
FPC (S1) Ribbon connector for key panel
Relay 2 Relay connector
Relay 5 Relay connector, deleted on replacement
Control panel
Screw
Power
transformer
(CN2)
(CN5)-For sensor
models only
Relay 5 - Red
(CN1)
Relay 2
Relay 5
FPC
connector
(S1)
Original P.C. Board
Control panel
Screw
Power
transformer
(CN2)
(CN5)-For sensor
models only
Relay 2 - White
(CN1)
Relay 2
FPC
connector
(S1)
Replacement P.C. Board
NOTE: When replacing door handle, the bottom portion
of the door handle must be inserted first.
7. Slide door glass to the right slightly, then push the
door glass upward to release the glass from the
track.
8. Reassemble in reverse order.
Door
glass
Latch
assembly
Spring
Choke
cover
Screw
Tape
seal
Door
frame
Door
panel
Door
handle
CAUTION
!
Once outer door trim panel is removed the glass
panel is loose.
CAUTION
!
A microwave leakage test must be performed anytime
a door assembly is removed, replaced, disassembly,
or adjusted for any reason.
Control Panel
The control panel is made up of several components,
such as p.c. board and touch panel.
Control Panel Removal
1. Disconnect oven power and remove grille, (see
"Grille" section).
2. Remove screw located at the top of touch panel. Lift
control panel up and out to release bottom tab
connections.
3. Place control panel on a flat surface.
4. Reassemble in reverse order.
