Control Units ABT-CU-8LCD / ABT-CU-11LT / ABT-CU-11LCD
User Manual
18
3.7 Power supply
Fig. 14.
POWER SUPPLY MANAGER
ABT-PSM48
ABT-CU-8LCD
ABT-PA8080B
ABT-PA8160B
ABT-PS48800
ABT-PS48800
ABT-PS48800
ABT-PS48800
Thermistor NTC
63A
63A

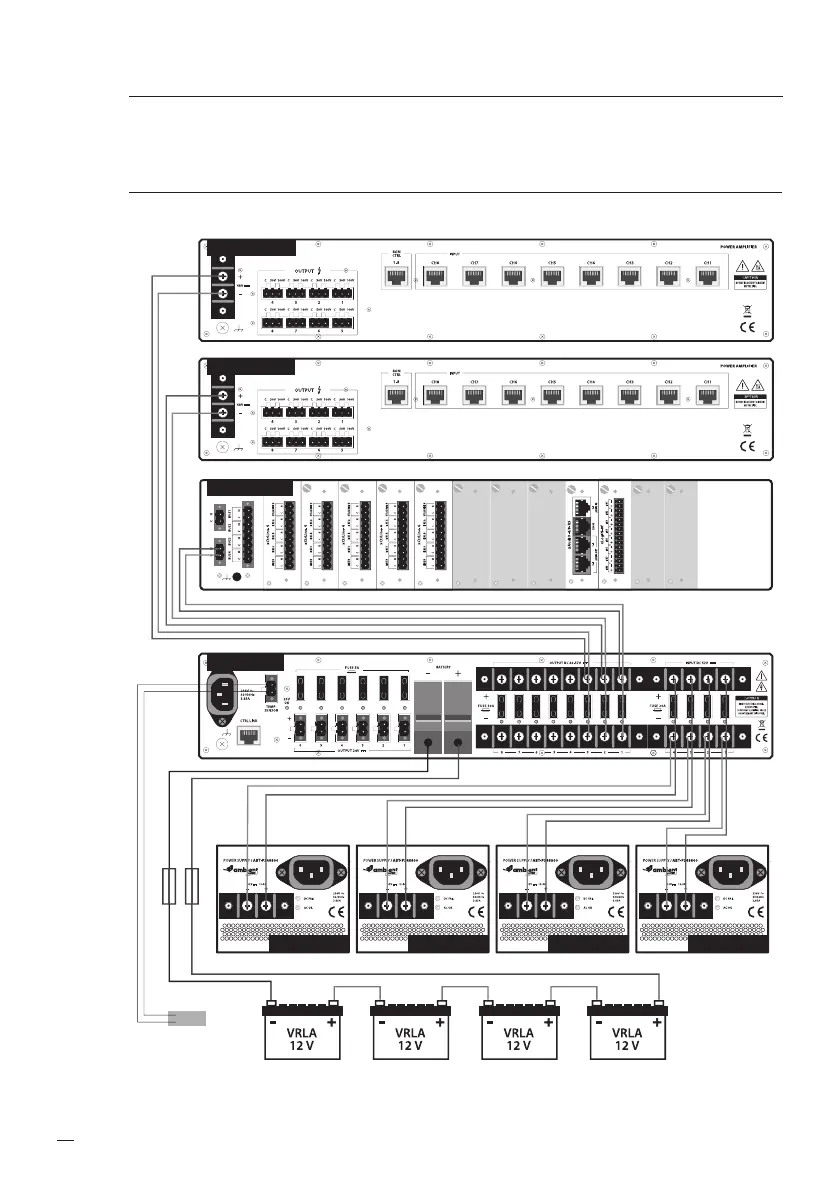

Power supply diagram
