Control Units ABT-CU-8LCD / ABT-CU-11LT / ABT-CU-11LCD
User Manual
10
2.4 ABT-CU-11LT control unit
ABT-CU-11LT control unit was designed to perform minor VAS system or serve as an extension unit in
complex systems. In case of lack of connection with a superior unit, thanks to local conguration, itis
able to carry out a re scenario. The device attached to the main system communication “ring” can
control ampliers and power supply managers, as well as receive alarm signals and digital signals
and send them to other system devices.

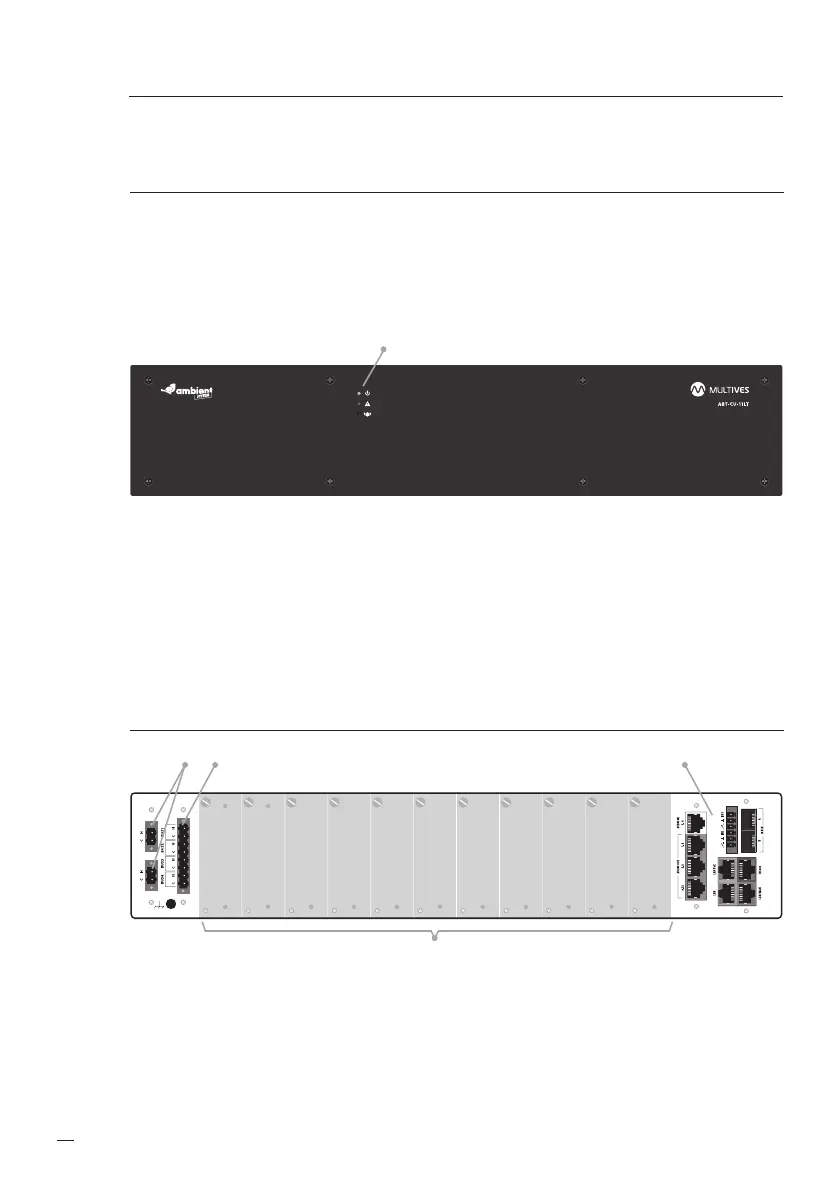

Fig. 4.
1
Front panel of ABT-CU-11LTL
1. Indicators:
a. Power supply indicator (green LED)
b. Failure indicator (yellow LED)
c. Emergency indicator (red LED)
2.5 ABT-CU-11LT / ABT-CU-11LCD rear panel
Fig. 5.
1 2 3
4
Rear panel of ABT-CU-11LT / ABT-CU-11LCD
1. Power supply, two identical connectors
2. Connector for 100V amplier outputs to supply internal BUS available to all control cards
3. Built-in communication card and audio input and output card
4. Control card slot, 11 items
