INSTALLATIONS

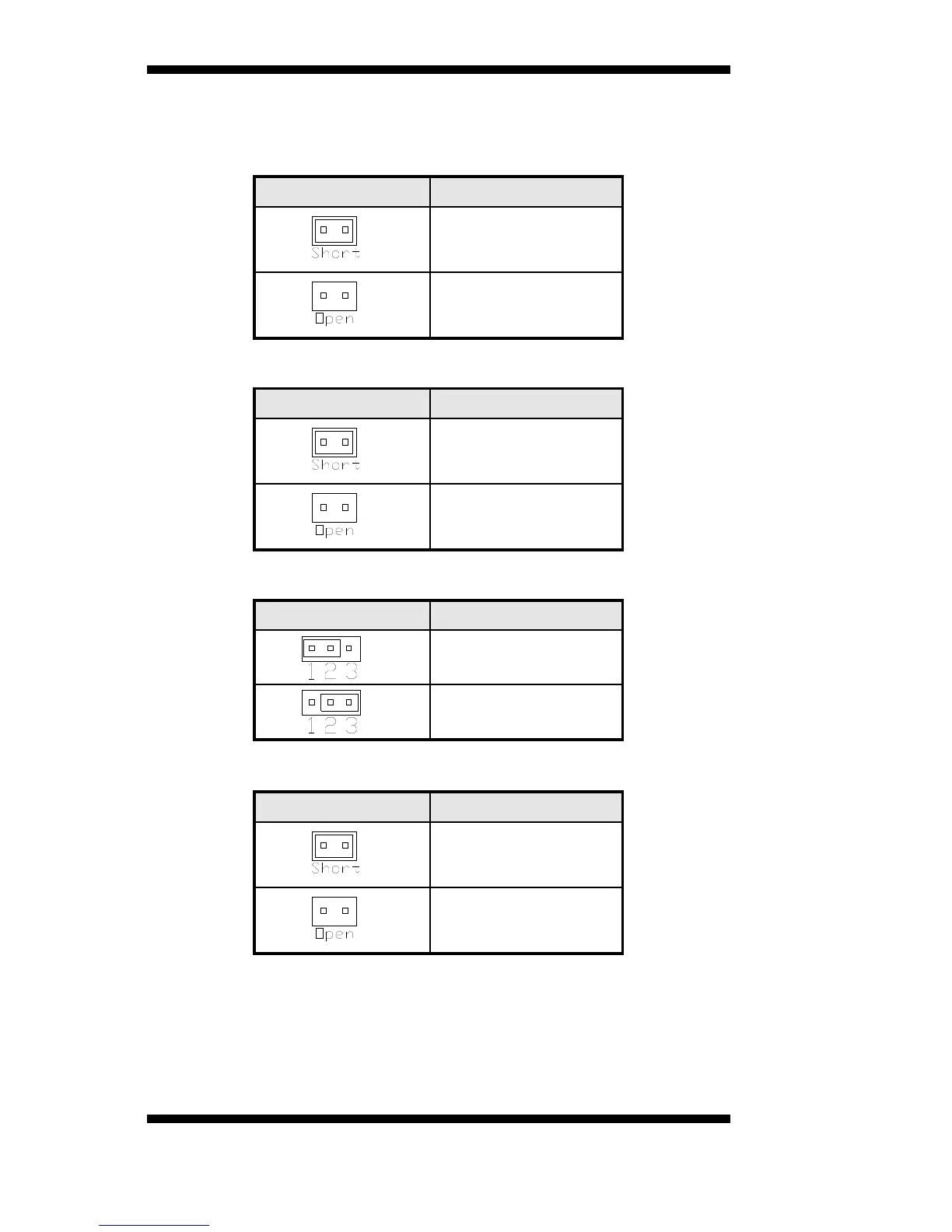

JP8: CompactFlash Slave/Master Selection (option)
Remarks: The CF socket and its corre
sponding slave/master
Selection is
optional.
JP8
CF Setting
Master
Slave
JP9: 1394 EPROM Write Selection
JP9
1394 EPROM
For EPROM Write
Normal
JP12: Clear CMOS Setting
JP12
Setting
Normal
Clear CMOS
JP14: RTL8110S-32 LAN Enable / Disable
JP14
Gigabit LAN
Disable
Enable
[
10
MB740 User’s Manual
13
15
Table of Contents
Table of Contents
3
Introduction
5
Product Description
5
Checklist
6
MB740 Specifications
7
Board Dimensions
8
Installations
9
Installing the CPU
10
Installing the Memory
11
Setting the Jumpers
12
Installations Connectors on Mb740
15
Connectors on MB740
15
Connector Locations on MB740
16
CN3: COM1 and VGA Connector
17
KBMS1: PS/2 Keyboard and PS/2 Mouse Connectors
17
CN4: 10/100 RJ-45 and USB1/2 Ports
18
CN5: 1394 Connector
18
CN6: Gbe RJ-45 and USB3/4 Ports
18
CN7: Audio Connector
18
J3: SPDIF out Connector
18
PWR1: ATX Power Supply Connector
18
FAN1: System Fan Power Connector
19
FAN2: CPU Fan Power Connector
19
IDE1, IDE2: 40-Pin and 44-Pin IDE Connectors
19
FDD1: Floppy Drive Connector
20
CN1: Digital I/O
21
CN2: COM2 Serial Port
21
J1: USB5/6 Port Pin Header
21
J2: 1394 Pin Header
21
J4: Mini PCI Connector
21
CN8: Speaker Connector
22
J5: System Function Connector
22
J6: Front Audio Connector
22
J7: CD-In Pin Header
22
AGP1: Microagp Socket
23
CN11: Compact Flash Connector
23
CN9, CN10: Serial ATA Connectors
23
J13: Irda Connector
23
PCI1: PCI Slot (Supports 2 Master)
23
BIOS Setup
25
BIOS Introduction
26
BIOS Setup
26
Standard CMOS Setup
28
Advanced BIOS Features
31
Cpu Internal Cache
31
Hard Disk Boot Priority
31
Virus Warning
31
Advanced Chipset Features
34
Integrated Peripherals
36
Acpi Function
38
Acpi Suspend Type
38
Power Management Setup
38
Suspend Mode
38
Video off Option
38
PNP/PCI Configurations
40
PC Health Status
41
Shutdown Temperature
41
Auto Detect Pci Clk
42
Frequency/Voltage Control
42
Spread Spectrum
42
Exit Without Saving
43
Load Fail-Safe Defaults
43
Load Optimized Defaults
43
Save & Exit Setup
43
Set Password
43
Set Supervisor/User Password
43
Drivers Installation Drivers Installation
45
Drivers Installation
45
SIS 741CX Chipset VGA Driver
46
Driver Installation
48
SIS Chipset Ethernet Driver
49
Realtek Gigabit Ethernet Driver
50
Realtek AC97 Codec Driver
51
Appendix
53
I/O Port Address Map
53
Interrupt Request Lines (IRQ)
54
C. Watchdog Timer Configuration
55
Watchdog Timer Configuration
56
Digital I/O Sample Code
59
