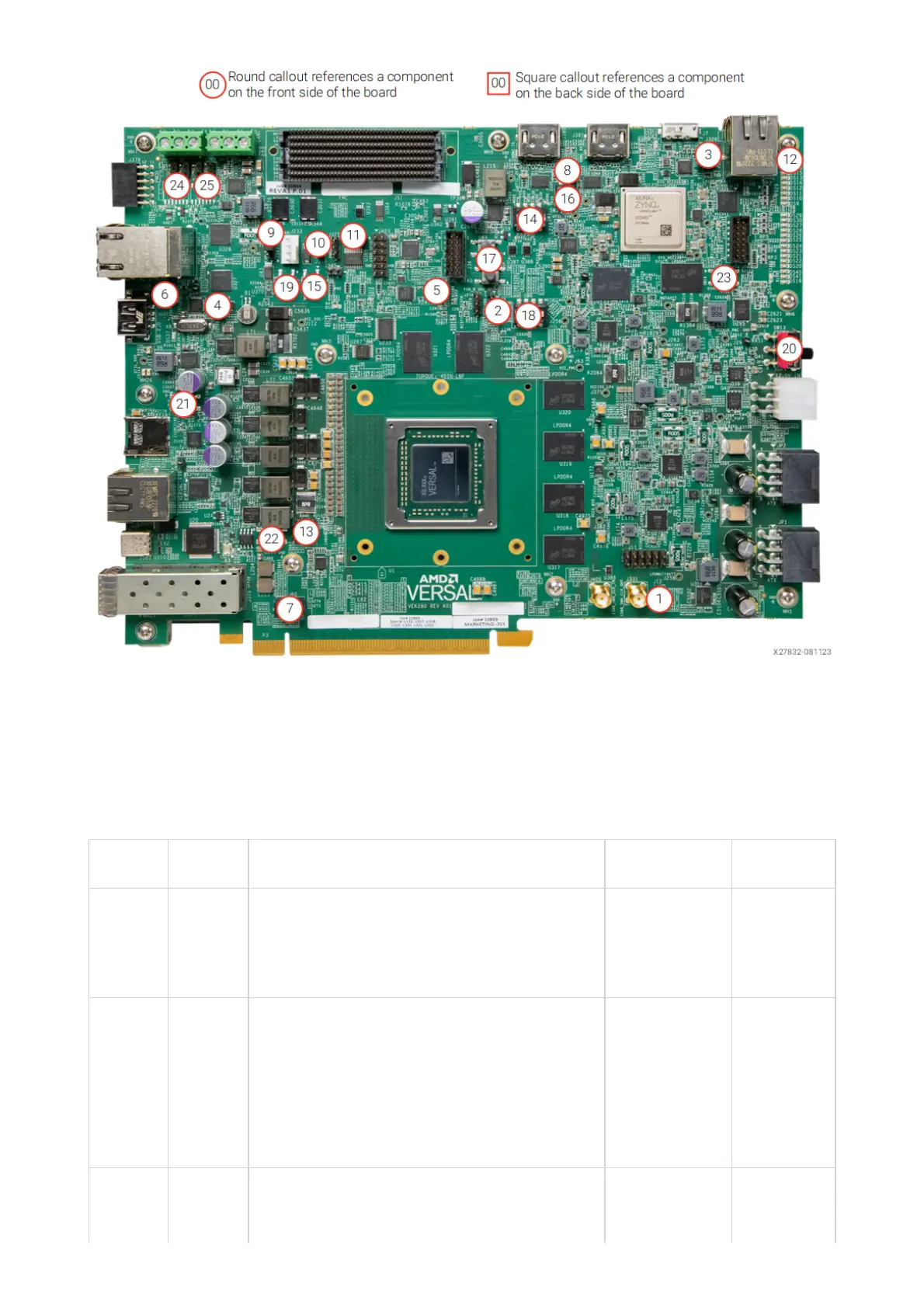

Jumpers
The following table lists the default jumper settings.
Table: Default Jumper Settings
Callout NumberRef. Des. Function Default Schematic Page
1 J12 SYSMON VREFP SEL
1-2: External VREF
2-3: Disable external VREF
1-2 10
2 J26 POR_B supervisor SENSE input
1-2: VCCO_MIO ramp-up sense
(1.8V)
2-3: VCCAUX_PMC ramp-up sense
(1.5V)
2-3 13
3 J326 POR_B enable header
1-2: SYSCTLR can drive POR_B
1-2, 3-4
jumpered
13
