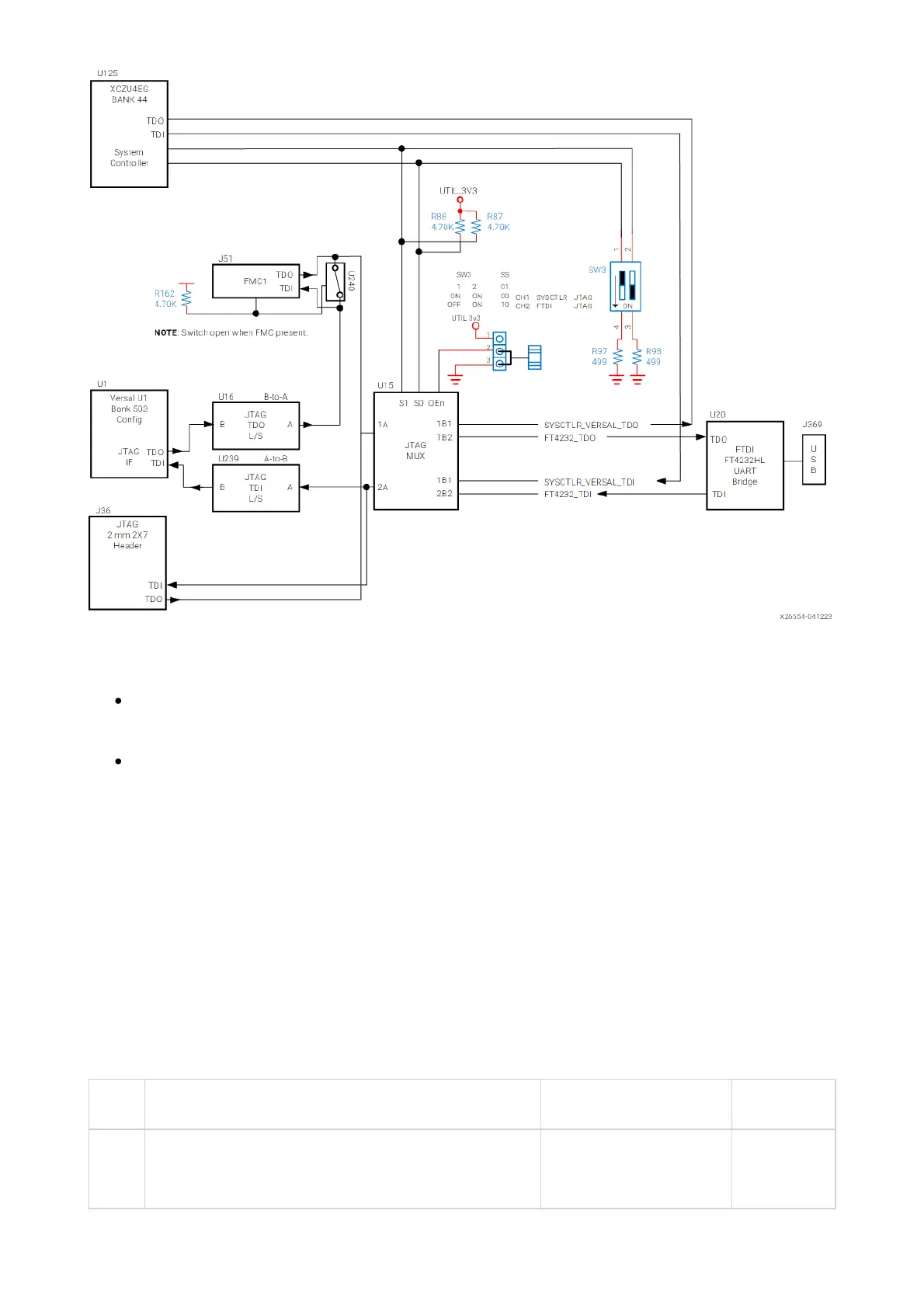

See Versal Device Configuration for information on JTAG programming via:
FTDI FT4232 USB-to-JTAG/USB-UART device (U20) connected to USB 3.1 type-
C connector (J369)
JTAG pod flat cable connector J36 (2 mm 2x7 shrouded/keyed)
See the "FT4232HL UART Connections" figure in PMC MIO[42:43] UART0 for an
overview of FT4232 U20 JTAG and USB-UART connectivity.
Clock Generation
The VEK280 board provides fixed and variable clock sources for the XCVE2802 U1
device and other function blocks. The following table lists the source devices for
each clock.
Table: Clock Sources
Ref. Des. Feature Notes Schematic Page
U299 DDR4 DIMM CLK, 200 MHz, 3.3V LVDS,
0x09
Renesas output
1RC21008A
93
